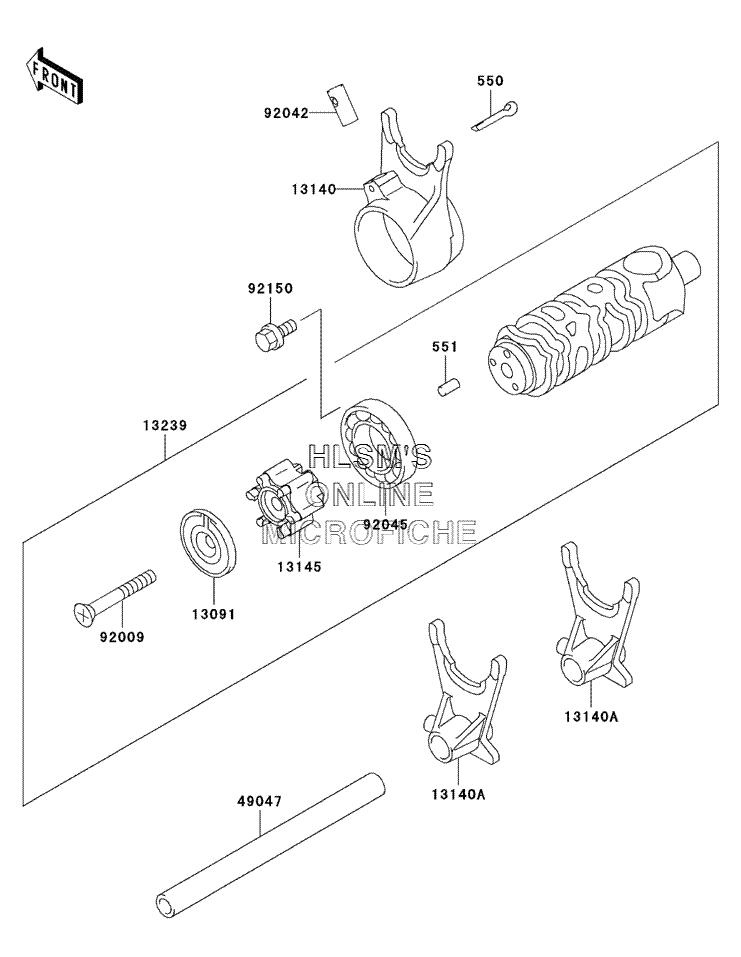

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki NINJA 500R - 2002 года выпуска
-
№АртикулНазвание
-
550550D3020 PIN, COTTER, 3.0X20PIN, COTTER, 3.0X20
-
551551A0408 PIN, DOWEL, 4X8PIN, DOWEL, 4X8
-
1309113091-1351 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1016 FORK, SHIFT, DRIVEFORK, SHIFT, DRIVE
-
13140A13140-1062 FORK, SHIFT, OUTPUTFORK, SHIFT, OUTPUT
-
1314513145-1056 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1323913239-1118 DRUM, ASSY, CHANGEDRUM, ASSY, CHANGE
-
4904749047-1061 ROD, SHIFTROD, SHIFT
-
9200992009-1599 SCREW, 6X45SCREW, 6X45
-
9204292042-021 PIN, DOWEL, 8X18PIN, DOWEL, 8X18
-
9204592045-036 BEARING, BALL, #6905BEARING, BALL, #6905
-
9215092150-1826 BOLT, 6X12BOLT, 6X12
