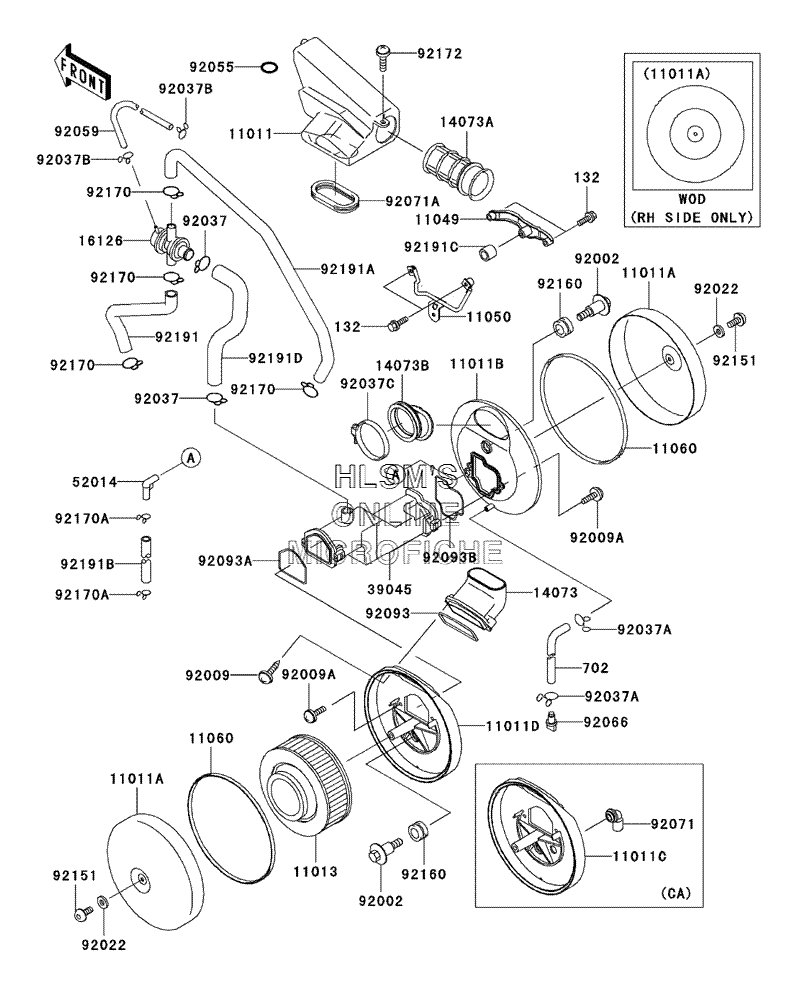

AIR CLEANER для Kawasaki Vulcan 1500 Classic - 2002 года выпуска
-
№АртикулНазвание
-
1101111011-1488 CASE, AIR FILTER, CENTERCASE, AIR FILTER, CENTER
-
11011A11011-1489 CASE, AIR FILTER, OUTSIDECASE, AIR FILTER, OUTSIDE
-
11011B11011-1529 CASE, AIR FILTER (RIGHT)CASE, AIR FILTER (RIGHT)
-
11011C11011-1533 CASE, AIR FILTER (LEFT) (CALIF. ONLY)CASE, AIR FILTER (LEFT) (CALIF. ONLY)
-
11011D11011-1570 CASE, AIR FILTER (LEFT) (US ONLY)CASE, AIR FILTER (LEFT) (US ONLY)
-
1101311013-1248 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1104911049-1539 BRACKET, AIR FILTER (RIGHT)BRACKET, AIR FILTER (RIGHT)
-
1105011050-1510 BRACKET, AIR FILTER (LEFT)BRACKET, AIR FILTER (LEFT)
-
1106011060-1736 GASKET, AIR FILTER CASE (LEFT)GASKET, AIR FILTER CASE (LEFT)
-
1407314073-1658 DUCT, AIR FILTER (LEFT)DUCT, AIR FILTER (LEFT)
-
14073A14073-1660 DUCTDUCT
-
14073B14073-1712 DUCT, AIR FILTER (RIGHT)DUCT, AIR FILTER (RIGHT)
-
1612616126-1356 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
3904539045-1056 DUCT, ASSYDUCT, ASSY
-
5201452014-1083 ELBOWELBOW
-
9200292002-1595 BOLTBOLT
-
9200992009-1264 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92009A92009-1905 SCREW, 5X20SCREW, 5X20
-
9202292022-193 WASHER, 6.5X20X1.6 (WHITE)WASHER, 6.5X20X1.6 (WHITE)
-
9203792037-1076 CLAMP, TUBECLAMP, TUBE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1712 CLAMPCLAMP
-
92037C92037-1859 CLAMPCLAMP
-
9205592055-1282 O-RINGO-RING
-
9205992059-1133 TUBE, 4X9X290TUBE, 4X9X290
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207192071-1114 GROMMET, AIR FILTER (CALIF. ONLY)GROMMET, AIR FILTER (CALIF. ONLY)
-
92071A92071-1233 GROMMETGROMMET
-
9209392093-1408 SEAL, AIR FILTER CASESEAL, AIR FILTER CASE
-
92093A92093-1459 SEAL, DUCT (LEFT)SEAL, DUCT (LEFT)
-
92093B92093-1460 SEAL, DUCT (RIGHT)SEAL, DUCT (RIGHT)
-
9215192151-1503 BOLT, 6X14BOLT, 6X14
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1445 CLAMP, TUBECLAMP, TUBE
-
92170A92170-1695 CLAMPCLAMP
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
-
132132J0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
702702A07260 TUBE, RUBBERTUBE, RUBBER
-
9219192191-1050 TUBE, HEAD, FRONT, AIR SWITCHTUBE, HEAD, FRONT, AIR SWITCH
-
92191A92191-1051 TUBE, HEAD, REAR, AIR SWITCHTUBE, HEAD, REAR, AIR SWITCH
-
92191B92191-1054 TUBE, BREATHERTUBE, BREATHER
-
92191C92191-1089 TUBE, 15.5X22.5X20TUBE, 15.5X22.5X20
-
92191D92191-1266 TUBE, AIR SWITCH, DUCTTUBE, AIR SWITCH, DUCT
