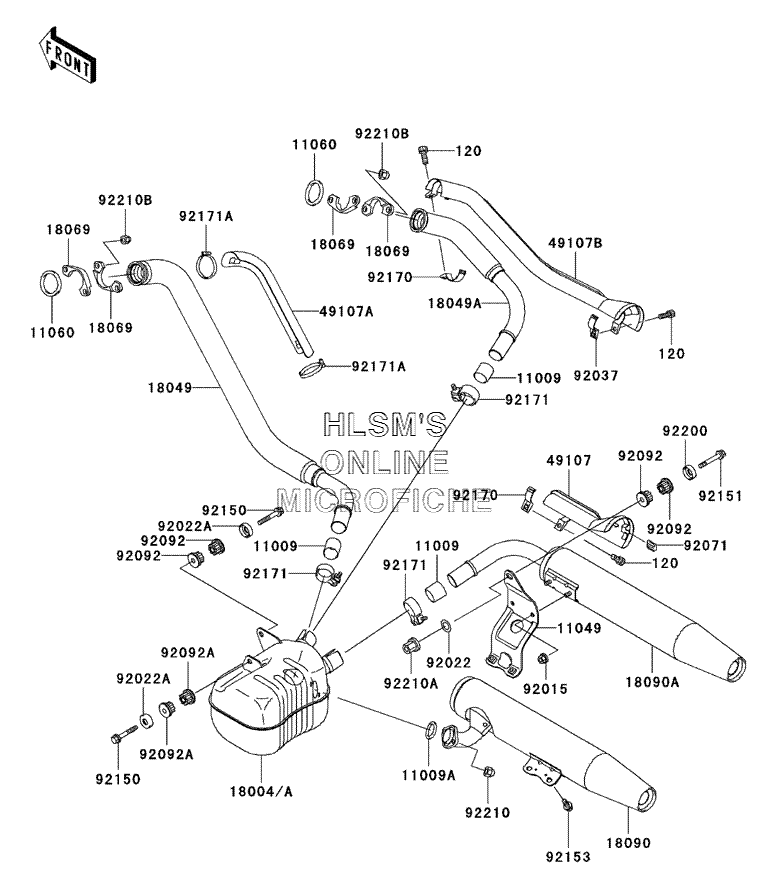

MUFFLER(S) для Kawasaki Vulcan 1500 Classic - 2002 года выпуска
-
№АртикулНазвание
-
120120Z0620 BOLT, SOCKETBOLT, SOCKET
-
1100911009-1865 GASKET, MUFFLER CONNECTINGGASKET, MUFFLER CONNECTING
-
11009A11009-1894 GASKET, EXHAUST HOLDERGASKET, EXHAUST HOLDER
-
1104911049-1540 BRACKET, MUFFLERBRACKET, MUFFLER
-
1106011060-1119 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1800418004-1091 CHAMBER, PREMUFFLER (CALIF. ONLY)CHAMBER, PREMUFFLER (CALIF. ONLY)
-
18004A18004-1094 CHAMBER, PREMUFFLER (US ONLY)CHAMBER, PREMUFFLER (US ONLY)
-
1804918049-1887 PIPE, EXHAUST, FRONTPIPE, EXHAUST, FRONT
-
18049A18049-1888 PIPE, EXHAUST, REARPIPE, EXHAUST, REAR
-
1806918069-1161 HOLDER, EXHAUST PIPEHOLDER, EXHAUST PIPE
-
1809018090-1652 BODY, COMP, MUFFLER, FRONT, LOWERBODY, COMP, MUFFLER, FRONT, LOWER
-
18090A18090-1653 BODY, COMP, MUFFLER, REAR, UPPERBODY, COMP, MUFFLER, REAR, UPPER
-
4910749107-1103 COVER, EXHAUST PIPE, MUFFLER (RIGHT)COVER, EXHAUST PIPE, MUFFLER (RIGHT)
-
49107A49107-1115 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
49107B49107-1156 COVER, EXHAUST PIPE, REARCOVER, EXHAUST PIPE, REAR
-
9201592015-1936 NUT, 8MMNUT, 8MM
-
9202292022-044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
92022A92022-1302 WASHER, 10.5X30X2.3 (BLACK)WASHER, 10.5X30X2.3 (BLACK)
-
9203792037-1613 CLAMP, EXHAUST PIPE COVERCLAMP, EXHAUST PIPE COVER
-
9207192071-1226 GROMMETGROMMET
-
9209292092-1013 BUSHING, RUBBER, MUFFLERBUSHING, RUBBER, MUFFLER
-
92092A92092-1081 BUSHING, RUBBERBUSHING, RUBBER
-
9215092150-1749 BOLT, 10X55BOLT, 10X55
-
9215192151-1332 BOLT, FLANGED, 10X57BOLT, FLANGED, 10X57
-
9215392153-0387 BOLT, FLANGED, 8X14BOLT, FLANGED, 8X14
-
9217092170-1645 CLAMPCLAMP
-
9217192171-0062 CLAMP, CHAMBER, MUFFLERCLAMP, CHAMBER, MUFFLER
-
92171A92171-0137 CLAMPCLAMP
-
9220092200-1664 WASHER, 10.5X36X2WASHER, 10.5X36X2
-
9221092210-0076 NUT, 8MMNUT, 8MM
-
92210A92210-1121 NUT, CAP, 10MMNUT, CAP, 10MM
-
92210B92210-1132 NUT, CAP, 8MMNUT, CAP, 8MM
