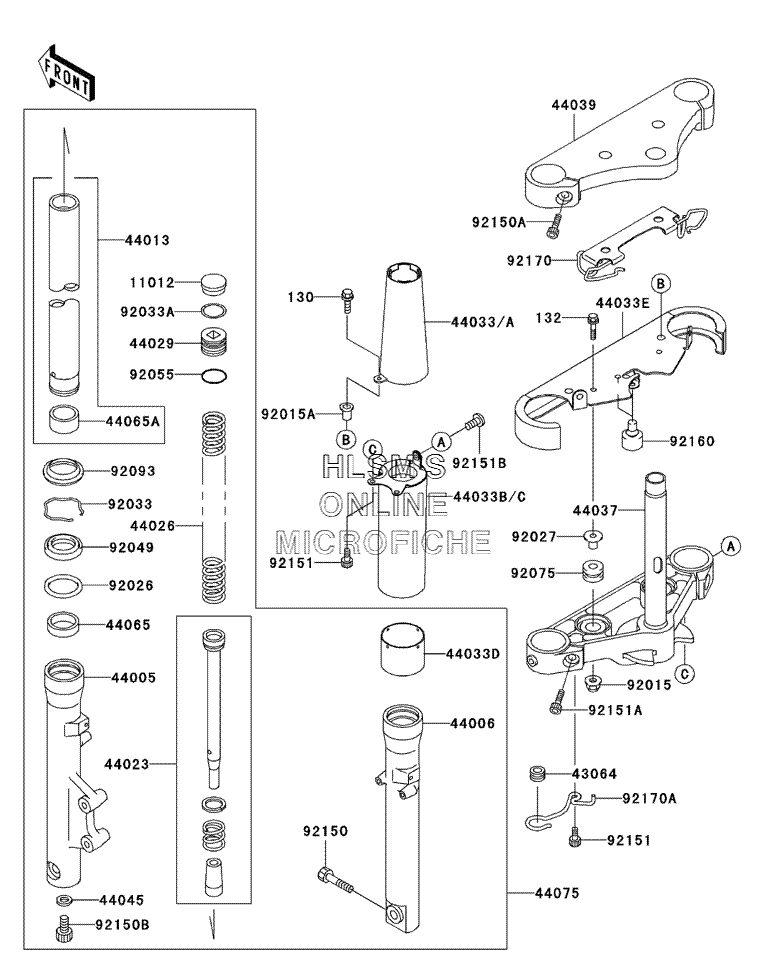

FRONT FORK для Kawasaki Vulcan 1500 Classic - 2002 года выпуска
-
№АртикулНазвание
-
130130J0516 BOLT, FLANGEDBOLT, FLANGED
-
1101211012-1618 CAP, FORK TOPCAP, FORK TOP
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4400544005-1366 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1365 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1462 PIPE, FORK INNERPIPE, FORK INNER
-
4402344023-1133 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-1693 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1125 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403344033-1215 COVER, FORK, UPPER (LEFT)COVER, FORK, UPPER (LEFT)
-
44033A44033-1216 COVER, FORK, UPPER (RIGHT)COVER, FORK, UPPER (RIGHT)
-
44033B44033-1221 COVER, FORK, UNDER (LEFT)COVER, FORK, UNDER (LEFT)
-
44033C44033-1222 COVER, FORK, UNDER (RIGHT)COVER, FORK, UNDER (RIGHT)
-
44033D44033-1223 COVER, FORKCOVER, FORK
-
44033E44033-1235 COVER, FORK, LOWERCOVER, FORK, LOWER
-
4403744037-1344 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1260 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4406544065-1079 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1087 BUSHING, FRONT FORK, INNER PIPEBUSHING, FRONT FORK, INNER PIPE
-
4407544075-1095 DAMPER, SET, FORKDAMPER, SET, FORK
-
9201592015-1385 NUT, CAP, 6MMNUT, CAP, 6MM
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202692026-1276 SPACER, FORK OUTERSPACER, FORK OUTER
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203392033-1222 RING, SNAPRING, SNAP
-
92033A92033-1223 RING, SNAP, SPRING SEATRING, SNAP, SPRING SEAT
-
9204992049-1363 SEAL, OIL, FORKSEAL, OIL, FORK
-
9205592055-1363 O-RING, SPRING SEATO-RING, SPRING SEAT
-
9207592075-1035 DAMPERDAMPER
-
9209392093-1268 SEAL, FORKSEAL, FORK
-
9215092150-1029 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
92150A92150-1031 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92150B92150-1432 BOLT, SOCKET, 8X18BOLT, SOCKET, 8X18
-
9215192151-1068 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92151A92151-1083 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
92151B92151-1097 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
9216092160-1555 DAMPERDAMPER
-
9217092170-1655 CLAMP, CABLECLAMP, CABLE
-
92170A92170-1658 CLAMP, CABLECLAMP, CABLE
-
132132E0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
