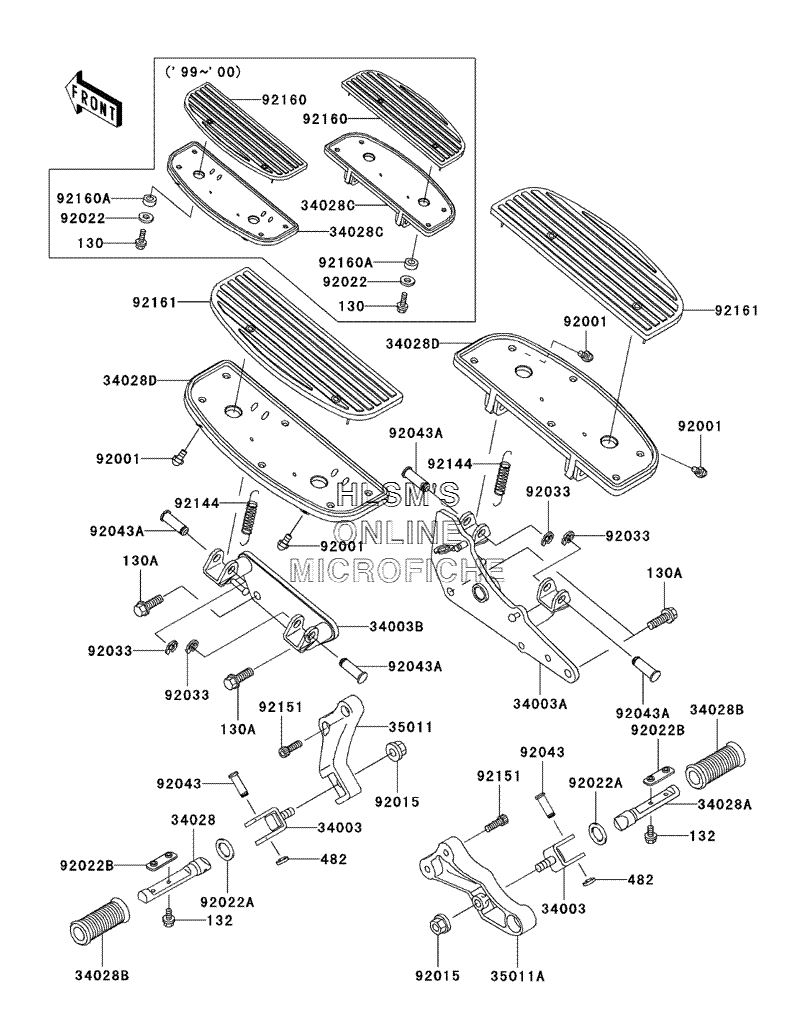

FOOTRESTS для Kawasaki Vulcan 1500 Classic - 2002 года выпуска
-
№АртикулНазвание
-
130A130J1030 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
132132J0510 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
482482L7000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
3400334003-1292 HOLDER, STEP, REARHOLDER, STEP, REAR
-
34003A34003-1449 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
34003B34003-1481 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
3402834028-1219 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028A34028-1220 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
34028B34028-1221 STEP, REAR, RUBBERSTEP, REAR, RUBBER
-
34028D34028-1497 STEP, FRONTSTEP, FRONT
-
3501135011-1770 STAY, REAR STEP (LEFT)STAY, REAR STEP (LEFT)
-
35011A35011-1922 STAY, REAR STEP (RIGHT)STAY, REAR STEP (RIGHT)
-
9200192001-1905 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92022A92022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
92022B92022-1874 WASHER, STEPWASHER, STEP
-
9203392033-1166 RING, SNAP, 10MMRING, SNAP, 10MM
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1358 PIN, 12X37PIN, 12X37
-
9214492144-1266 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215192151-1525 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9216192161-1154 DAMPER, FRONT STEPDAMPER, FRONT STEP
