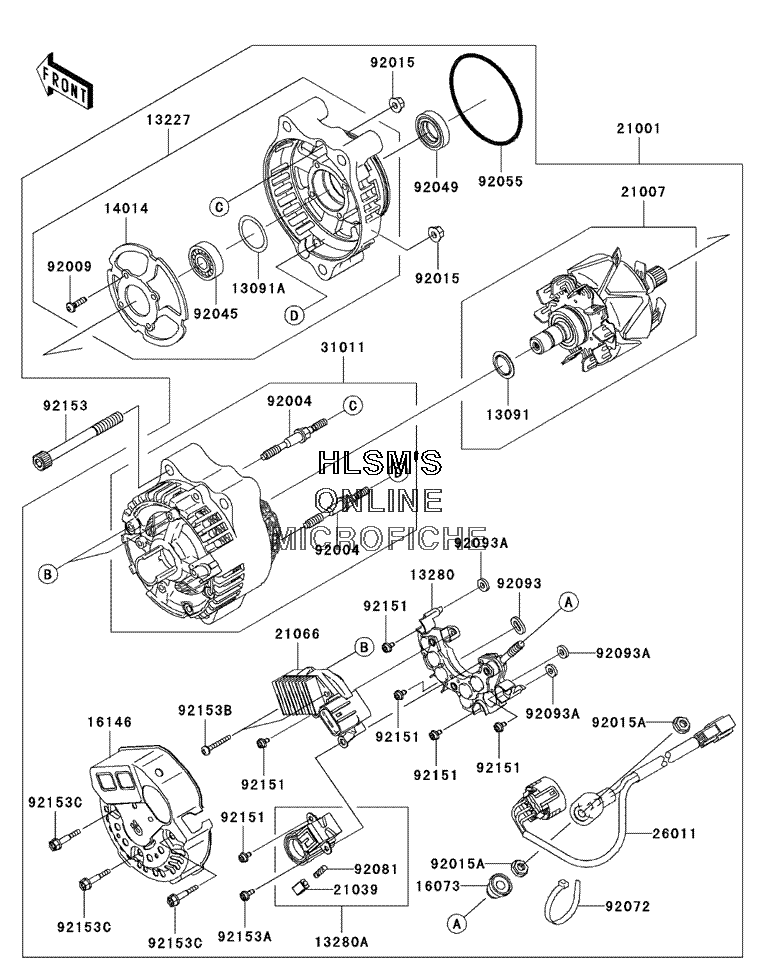

GENERATOR для Kawasaki ZZR1200 - 2002 года выпуска
-
№АртикулНазвание
-
1309113091-1327 HOLDER, COVERHOLDER, COVER
-
13091A13091-1748 HOLDER, BEARINGHOLDER, BEARING
-
1322713227-1143 HOUSING, FRAMEHOUSING, FRAME
-
1328013280-1291 HOLDER, RECTIFIERHOLDER, RECTIFIER
-
13280A13280-1292 HOLDER, BRUSHHOLDER, BRUSH
-
1401414014-1105 PLATE, POSITIONPLATE, POSITION
-
1607316073-1127 INSULATOR, TERMINALINSULATOR, TERMINAL
-
1614616146-1232 COVER, ASSY., END, REARCOVER, ASSY., END, REAR
-
2100121001-1192 GENERATORGENERATOR
-
2100721007-1420 ROTORROTOR
-
2103921039-1052 BRUSH, CARBONBRUSH, CARBON
-
2106621066-1136 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2601126011-1846 WIRE, LEADWIRE, LEAD
-
3101131011-1088 FRAME, END, REARFRAME, END, REAR
-
9200492004-1196 STUDSTUD
-
9200992009-1645 SCREWSCREW
-
9201592015-1851 NUTNUT
-
92015A92015-2271 NUTNUT
-
9204592045-1248 BEARING, BALL, #6003BEARING, BALL, #6003
-
9204992049-1484 SEAL, OILSEAL, OIL
-
9205592055-1366 O-RING, 70.6X2.4O-RING, 70.6X2.4
-
9207292072-1436 BANDBAND
-
9208192081-1759 SPRING, BRUSHSPRING, BRUSH
-
9209392093-1587 SEA(LEFT, RIGHT) INGSEA(LEFT, RIGHT) ING
-
92093A92093-1588 SEA(LEFT, RIGHT) INGSEA(LEFT, RIGHT) ING
-
9215192151-1245 SCREW, 4X6SCREW, 4X6
-
9215392153-1111 BOLT, M8X65BOLT, M8X65
-
92153A92153-1241 BOLTBOLT
-
92153B92153-1242 BOLTBOLT
-
92153C92153-1243 BOLTBOLT
