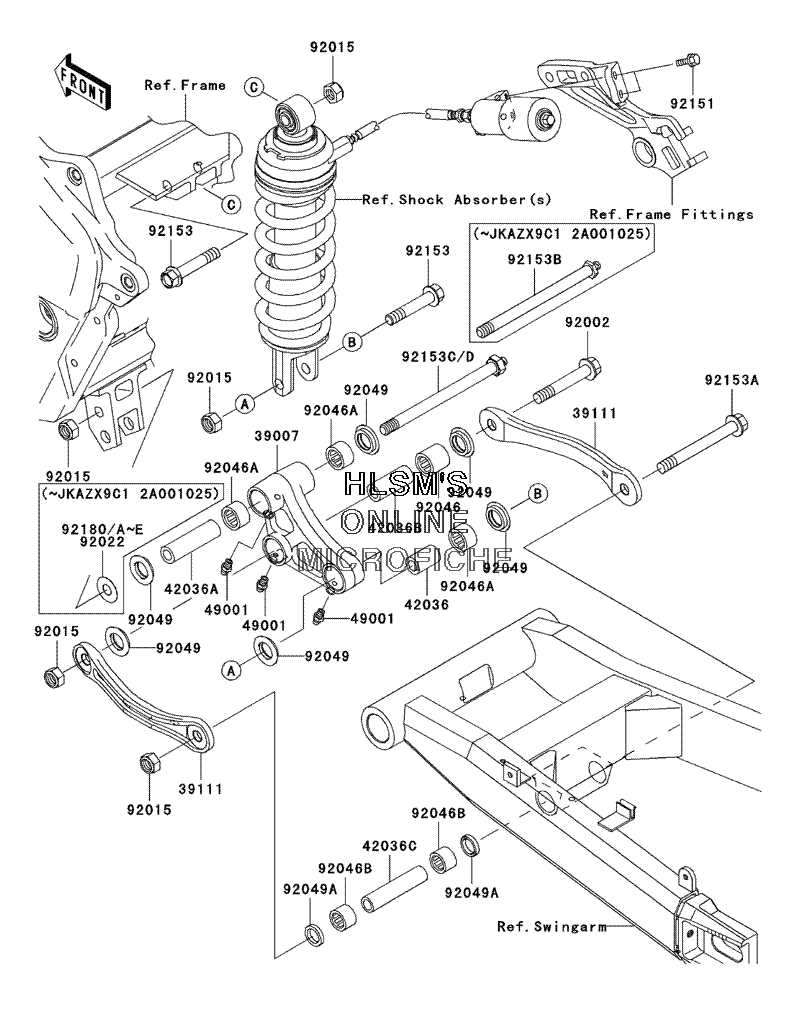

SUSPENSION - REAR для Kawasaki ZZR1200 - 2002 года выпуска
-
№АртикулНазвание
-
3900739007-1303 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
3911139111-1178 ROD, TIE, SUSPENSIONROD, TIE, SUSPENSION
-
4203642036-1077 SLEEVE, 12.1X20X32SLEEVE, 12.1X20X32
-
42036A42036-1079 SLEEVE, 12.1X20X70SLEEVE, 12.1X20X70
-
42036B42036-1111 SLEEVE, 12.1X20X50SLEEVE, 12.1X20X50
-
42036C42036-1231 SLEEVE, 12.1X18X82SLEEVE, 12.1X18X82
-
4900149001-0001 NIPPLE, GREASENIPPLE, GREASE
-
9200292002-1785 BOLT, SUSPENSION ARM, 12MMBOLT, SUSPENSION ARM, 12MM
-
9201592015-1190 NUT, LOCK, 12MM (BLACK)NUT, LOCK, 12MM (BLACK)
-
9202292022-105 WASHER, 12.5X30X0.8 ( , JKAZX9C1 2A001025)WASHER, 12.5X30X0.8 ( , JKAZX9C1 2A001025)
-
9204692046-1236 BEARING, NEEDLE, 7E, HVS20X27X25BEARING, NEEDLE, 7E, HVS20X27X25
-
92046A92046-1237 BEARING, NEEDLE, 7E, HVS20X27X15BEARING, NEEDLE, 7E, HVS20X27X15
-
92046B92046-1238 BEARING, NEEDLE, 7E, HVS18X24X16BEARING, NEEDLE, 7E, HVS18X24X16
-
9204992049-1109 SEAL, OIL, ARMSEAL, OIL, ARM
-
92049A92049-1225 SEAL, OIL, MHA18244SEAL, OIL, MHA18244
-
9215192151-1311 BOLT, 6X18BOLT, 6X18
-
9215392153-1206 BOLT, FLANGED, 12X63BOLT, FLANGED, 12X63
-
92153A92153-1208 BOLT, FLANGED, 12X110BOLT, FLANGED, 12X110
-
92153B92153-1235 BOLT, SUSPENSION ARM ( , JKAZX9C1 2A001025)BOLT, SUSPENSION ARM ( , JKAZX9C1 2A001025)
-
92153D92153-1237 BOLT, SUSPENSION ARM (JKAZX9C1 2A001026 , )BOLT, SUSPENSION ARM (JKAZX9C1 2A001026 , )
-
9218092180-1440 SHIM, T=0.2 ( , JKAZX9C1 2A001025)SHIM, T=0.2 ( , JKAZX9C1 2A001025)
-
92180A92180-1441 SHIM, T=0.3 ( , JKAZX9C1 2A001025)SHIM, T=0.3 ( , JKAZX9C1 2A001025)
-
92180B92180-1442 SHIM, T=0.4 ( , JKAZX9C1 2A001025)SHIM, T=0.4 ( , JKAZX9C1 2A001025)
-
92180C92180-1443 SHIM, T=0.5 ( , JKAZX9C1 2A001025)SHIM, T=0.5 ( , JKAZX9C1 2A001025)
-
92180D92180-1444 SHIM, T=0.6 ( , JKAZX9C1 2A001025)SHIM, T=0.6 ( , JKAZX9C1 2A001025)
-
92180E92180-1445 SHIM, T=0.7 ( , JKAZX9C1 2A001025)SHIM, T=0.7 ( , JKAZX9C1 2A001025)
