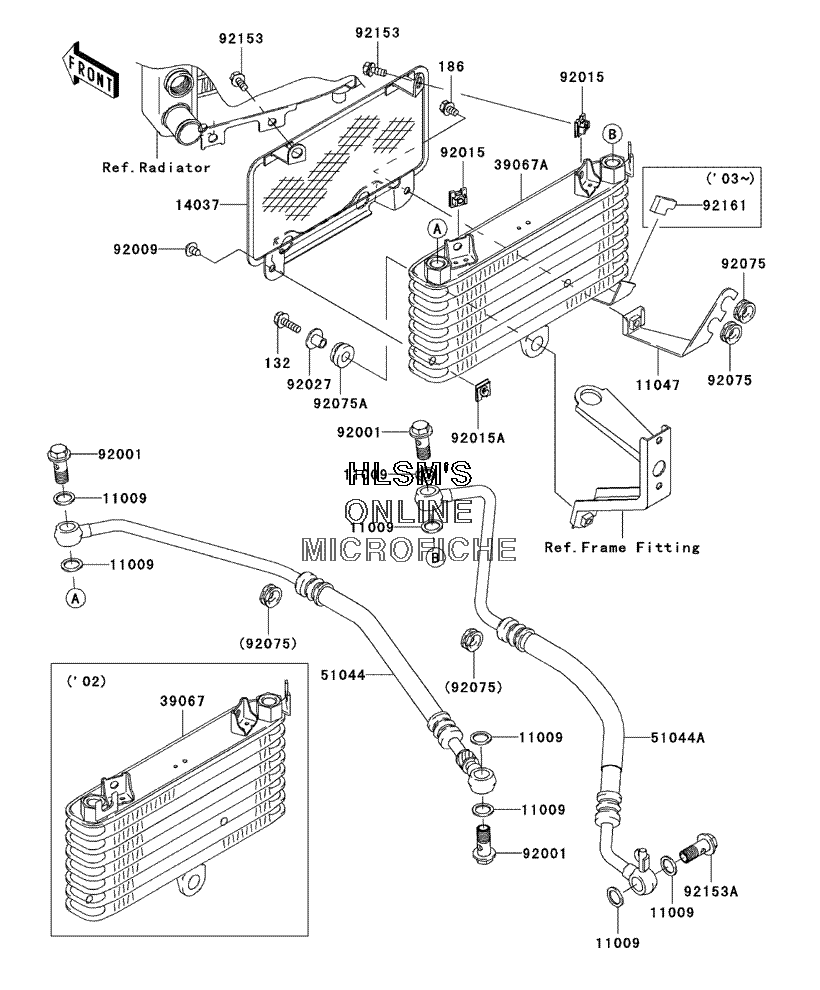

OIL COOLER для Kawasaki ZZR1200 - 2002 года выпуска

-
№АртикулНазвание
-
132132H0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
186186H0612 BOLT, UPSET, WPBOLT, UPSET, WP
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1104711047-1888 BRACKET, OIL TUBEBRACKET, OIL TUBE
-
1403714037-1308 SCREEN, OIL COOLERSCREEN, OIL COOLER
-
3906739067-1060 COOLER, OILCOOLER, OIL
-
5104451044-1152 TUBE, ASSY. (LEFT)TUBE, ASSY. (LEFT)
-
51044A51044-1232 TUBE, ASSY. (RIGHT)TUBE, ASSY. (RIGHT)
-
9200192001-1930 BOLT, 14X28.5BOLT, 14X28.5
-
9200992009-1261 SCREW, TAPPING, 6MMSCREW, TAPPING, 6MM
-
9201592015-1487 NUTNUT
-
92015A92015-1758 NUT, 6MMNUT, 6MM
-
9202792027-1651 COLLAR, FLANGED, L=12.1 (BLACK)COLLAR, FLANGED, L=12.1 (BLACK)
-
9207592075-1942 DAMPER, OIL COOLERDAMPER, OIL COOLER
-
92075A92075-277 DAMPERDAMPER
-
9215392153-1211 BOLT, SCREENBOLT, SCREEN
-
92153A92153-1226 BOLT, 14X28.5 LH THREADBOLT, 14X28.5 LH THREAD
