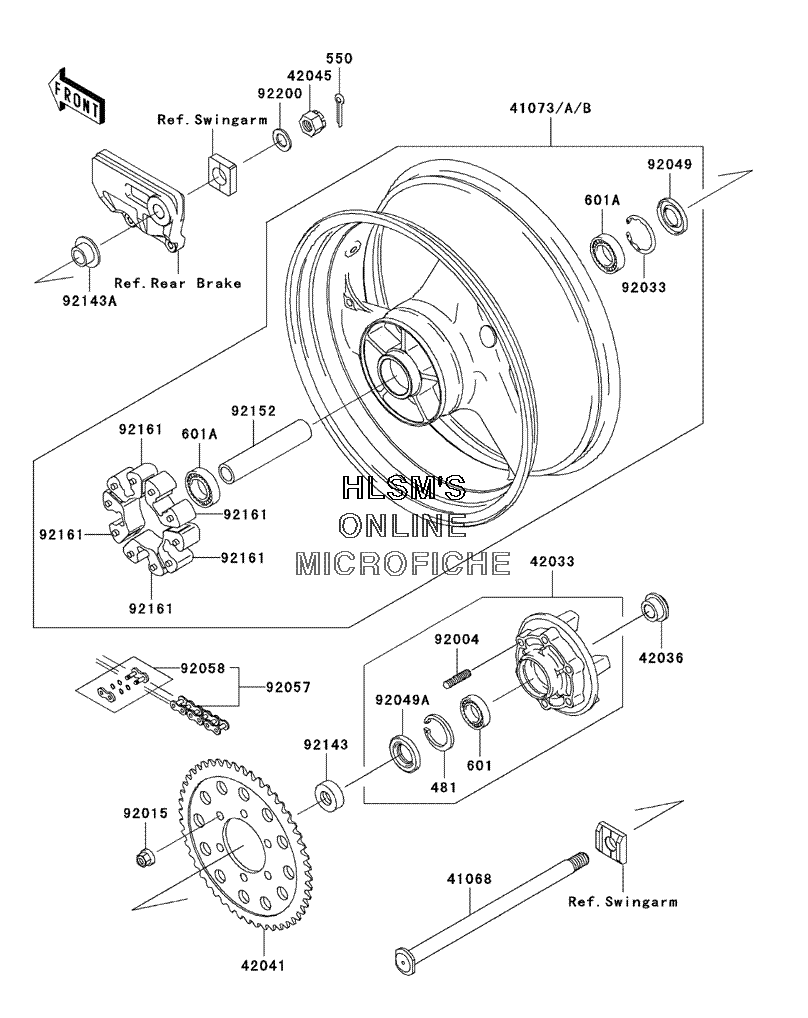

WHEEL - REAR W/ CHAIN для Kawasaki ZZR1200 - 2002 года выпуска
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6006G BEARING, BALL, #6006GBEARING, BALL, #6006G
-
601A601B6304UU BEARING, BALL, #6304UUC3BEARING, BALL, #6304UUC3
-
4106841068-1447 AXLE, FRONTAXLE, FRONT
-
4107341073-1669-R2 WHEEL, ASSY., REAR (BLACK) (CANADA ONLY)WHEEL, ASSY., REAR (BLACK) (CANADA ONLY)
-
41073A41073-1669-V5 WHEEL, ASSY., REAR (SILVER)WHEEL, ASSY., REAR (SILVER)
-
4203342033-1203 COUPLING, ASSY., REAR HUBCOUPLING, ASSY., REAR HUB
-
4203642036-1366 SLEEVE, REAR HUB COUPLING, L=22SLEEVE, REAR HUB COUPLING, L=22
-
4204142041-1417 SPROCKET, HUB (44 TEETH)SPROCKET, HUB (44 TEETH)
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9203392033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1061 SEAL, OIL, 28X52X5SEAL, OIL, 28X52X5
-
92049A92049-1263 SEAL, OIL, PJN40556SEAL, OIL, PJN40556
-
9205792057-0005 CHAIN, DRIVE, EK50ZVX2X112LCHAIN, DRIVE, EK50ZVX2X112L
-
9205892058-1104 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9214392143-1094 COLLAR, REAR AXLE, L=14COLLAR, REAR AXLE, L=14
-
92143A92143-1915 COLLAR, REAR AXLE (RIGHT) L=18COLLAR, REAR AXLE (RIGHT) L=18
-
9215292152-1319 COLLAR, REAR HUB, L=146COLLAR, REAR HUB, L=146
-
9216192161-1069 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1489 WASHER, 19X32X2.6WASHER, 19X32X2.6
