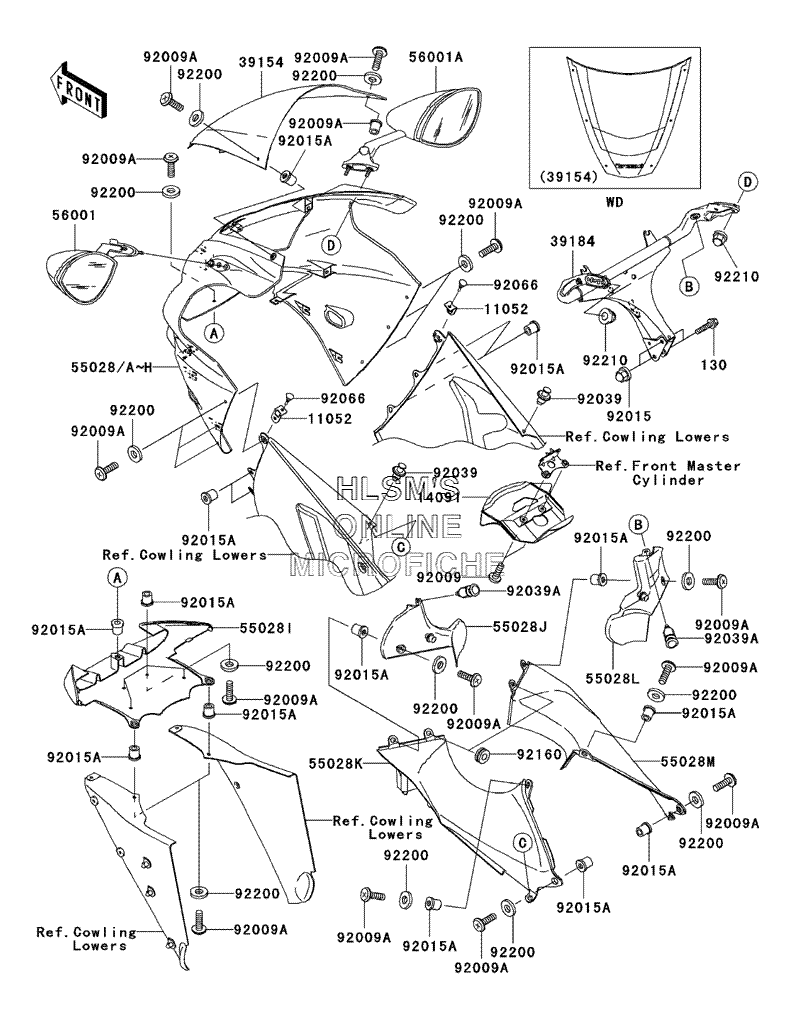

COWLING для Kawasaki NINJA ZX-12R - 2003 года выпуска
-
№АртикулНазвание
-
130130J0840 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
1105211052-1657 BRACKETBRACKET
-
1409114091-1211 COVER, UNDER BRACKETCOVER, UNDER BRACKET
-
3915439154-5018 WINDSHIELDWINDSHIELD
-
3918439184-1089 BRACKET, ASSY, MIRROR AND METERBRACKET, ASSY, MIRROR AND METER
-
5502855028-1425-ED COWLING, UPPER (C.S.RED)COWLING, UPPER (C.S.RED)
-
55028D55028-1425-473 COWLING, UPPER (M.SILVER) (CANADA ONLY)COWLING, UPPER (M.SILVER) (CANADA ONLY)
-
55028G55028-1425-7F COWLING, UPPER (L.GREEN)COWLING, UPPER (L.GREEN)
-
55028I55028-1426-263 COWLING, DUCT (M.F.C.GRAY)COWLING, DUCT (M.F.C.GRAY)
-
55028J55028-1434-263 COWLING, INNER (LEFT) FRONT (M.F.C.GRAY)COWLING, INNER (LEFT) FRONT (M.F.C.GRAY)
-
55028K55028-1435-263 COWLING, INNER (LEFT) REAR (M.F.C.GRAY)COWLING, INNER (LEFT) REAR (M.F.C.GRAY)
-
55028L55028-1436-263 COWLING, INNER (RIGHT) FRONT (M.F.C.GRAY)COWLING, INNER (RIGHT) FRONT (M.F.C.GRAY)
-
55028M55028-1437-263 COWLING, INNER (RIGHT) REAR (M.F.C.GRAY)COWLING, INNER (RIGHT) REAR (M.F.C.GRAY)
-
5600156001-1574 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-1575 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9200992009-1661 SCREW, 6X10SCREW, 6X10
-
92009A92009-1909 SCREW, 5X16SCREW, 5X16
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-1227 RIVETRIVET
-
92039A92039-1286 RIVETRIVET
-
9206692066-1576 PLUGPLUG
-
9216092160-1278 DAMPERDAMPER
-
9220092200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
