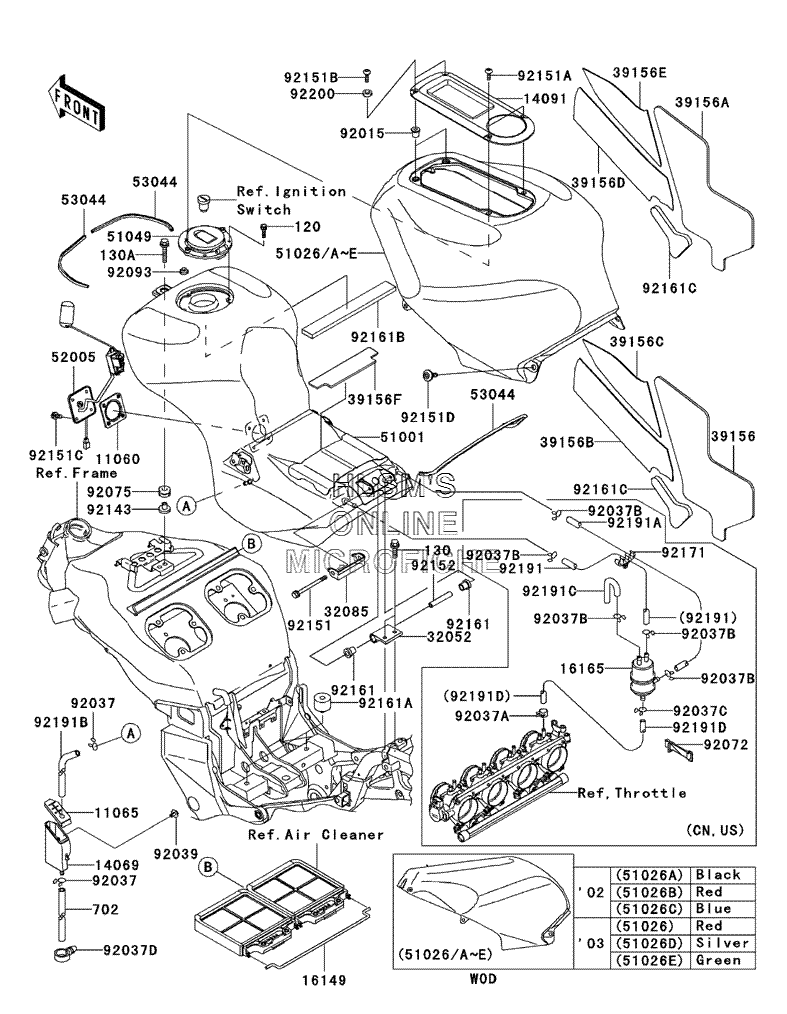

FUEL TANK для Kawasaki NINJA ZX-12R - 2003 года выпуска
-
№АртикулНазвание
-
1106011060-1952 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1106511065-1179 CAP, BREATHERCAP, BREATHER
-
1406914069-1065 BREATHER, FUEL TANK DRAINBREATHER, FUEL TANK DRAIN
-
1409114091-1145 COVER, FUEL TANK COVER CAPCOVER, FUEL TANK COVER CAP
-
1614916149-1119 BAR, FUEL TANKBAR, FUEL TANK
-
1616516165-1001 SEPARATOR (EXCEPT CALIF.)SEPARATOR (EXCEPT CALIF.)
-
3205232052-1500 BRACKET, TANK, REARBRACKET, TANK, REAR
-
3208532085-1507 STOPPER, FUEL TANK, REARSTOPPER, FUEL TANK, REAR
-
3915639156-1627 PAD, FUEL TANK COVER, REAR, UPPER (LEFT)PAD, FUEL TANK COVER, REAR, UPPER (LEFT)
-
39156A39156-1628 PAD, FUEL TANK COVER, REAR, UPPER (RIGHT)PAD, FUEL TANK COVER, REAR, UPPER (RIGHT)
-
39156B39156-1688 PAD, FUEL TANK COVER, FRONT, LOWER (LEFT)PAD, FUEL TANK COVER, FRONT, LOWER (LEFT)
-
39156C39156-1689 PAD, FUEL TANK COVER, FRONT, UPPER (LEFT)PAD, FUEL TANK COVER, FRONT, UPPER (LEFT)
-
39156D39156-1690 PAD, FUEL TANK COVER, FRONT, LOWER (RIGHT)PAD, FUEL TANK COVER, FRONT, LOWER (RIGHT)
-
39156E39156-1691 PAD, FUEL TANK COVER, FRONT, UPPER (RIGHT)PAD, FUEL TANK COVER, FRONT, UPPER (RIGHT)
-
39156F39156-1695 PAD, FUEL TANKPAD, FUEL TANK
-
5100151001-1666-C4 TANK, COMP, FUEL (M.GRAYSTONE)TANK, COMP, FUEL (M.GRAYSTONE)
-
5102651026-1051-ED COVER TANK, FUEL (C.S.RED)COVER TANK, FUEL (C.S.RED)
-
51026D51026-1051-473 COVER TANK, FUEL (M.SILVER) (CANADA ONLY)COVER TANK, FUEL (M.SILVER) (CANADA ONLY)
-
51026E51026-1051-7F COVER TANK, FUEL (L.GREEN)COVER TANK, FUEL (L.GREEN)
-
5104951049-1145 CAP, TANK, FUELCAP, TANK, FUEL
-
5200552005-1158 GAUGE, FUELGAUGE, FUEL
-
5304453044-1296 TRIMTRIM
-
9201592015-1700 NUTNUT
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1461 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92037B92037-147 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92037C92037-1712 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
92037D92037-1827 CLAMP, HOSECLAMP, HOSE
-
9203992039-1256 RIVETRIVET
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
130130J0620 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0630 BOLT, FLANGED, 6X30 (BLACK)BOLT, FLANGED, 6X30 (BLACK)
-
702702A06420 TUBE, RUBBER, 6X9X420TUBE, RUBBER, 6X9X420
-
9207292072-1085 BAND (EXCEPT CALIF.)BAND (EXCEPT CALIF.)
-
9207592075-1690 DAMPERDAMPER
-
9209392093-1030 SEAL, FUEL TANK CAPSEAL, FUEL TANK CAP
-
9214392143-1515 COLLARCOLLAR
-
9215192151-1200 BOLT, 6X80BOLT, 6X80
-
92151A92151-1449 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
92151B92151-1554 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92151C92151-1599 BOLT, 5X12BOLT, 5X12
-
92151D92151-1866 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
9215292152-1182 COLLAR, 6.8X10X60COLLAR, 6.8X10X60
-
9216192161-1070 DAMPERDAMPER
-
92161A92161-1116 DAMPERDAMPER
-
92161B92161-1117 DAMPERDAMPER
-
92161C92161-1153 DAMPER, FUEL TANK COVER, REAR, LOWERDAMPER, FUEL TANK COVER, REAR, LOWER
-
9217192171-1213 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
9219192191-1381 TUBE, SEPARATOR (BLUE) (EXCEPT CALIF.)TUBE, SEPARATOR (BLUE) (EXCEPT CALIF.)
-
92191A92191-1382 TUBE, SEPARATOR (RED) (EXCEPT CALIF.)TUBE, SEPARATOR (RED) (EXCEPT CALIF.)
-
92191B92191-1468 TUBETUBE
-
92191C92191-1654 TUBE, SEPARATOR (EXCEPT CALIF.)TUBE, SEPARATOR (EXCEPT CALIF.)
-
92191D92191-1742 TUBE, SEPARATOR (WHITE) (EXCEPT CALIF.)TUBE, SEPARATOR (WHITE) (EXCEPT CALIF.)
-
9220092200-1465 WASHER, 6.2X10X1WASHER, 6.2X10X1
