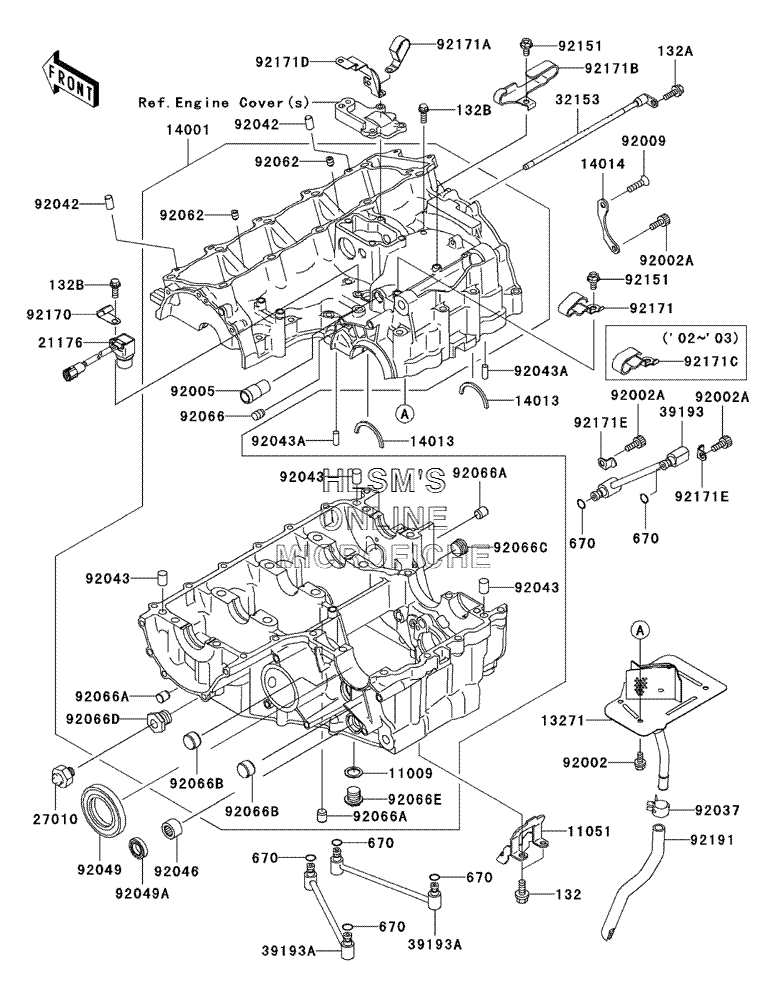

CRANKCASE для Kawasaki NINJA ZX-12R - 2003 года выпуска
-
№АртикулНазвание
-
132132H0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0614 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1105111051-1334 BRACKET, TUBEBRACKET, TUBE
-
1327113271-1228 PLATE, BREATHERPLATE, BREATHER
-
1400114001-1295 SET, CRANKCASESET, CRANKCASE
-
1401314013-1004 RING, POSITION, T=1.98RING, POSITION, T=1.98
-
1401414014-1140 PLATE, POSITIONPLATE, POSITION
-
2117621176-1106 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3215332153-1139 PIPE, OILPIPE, OIL
-
3919339193-1063 PIPE, OIL (RIGHT)PIPE, OIL (RIGHT)
-
39193A39193-1064 PIPE, OIL, OIL PANPIPE, OIL, OIL PAN
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
92002A92002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9200592005-1238 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1360 SCREW, 6X16SCREW, 6X16
-
9203792037-1678 CLAMPCLAMP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1506 PINPIN
-
92043A92043-1690 PIN, 6X16PIN, 6X16
-
9204692046-037 BEARING, NEEDLE, 7E, HK1412BEARING, NEEDLE, 7E, HK1412
-
9204992049-1510 SEAL, OIL, SD40X62X8SEAL, OIL, SD40X62X8
-
92049A92049-1520 SEAL, OIL, TC14245SEAL, OIL, TC14245
-
9206292062-1086 NOZZLE, 5X6 (SILVER)NOZZLE, 5X6 (SILVER)
-
9206692066-042 PLUGPLUG
-
92066A92066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066B92066-1110 PLUGPLUG
-
92066C92066-1252 PLUG, PT3/8X12PLUG, PT3/8X12
-
92066D92066-1513 PLUG, PT3/8X3PLUG, PT3/8X3
-
92066E92066-2196 PLUG, DRAINPLUG, DRAIN
-
9215192151-1239 BOLT, 6X12BOLT, 6X12
-
9217092170-1900 CLAMP, HARNESSCLAMP, HARNESS
-
92171A92171-1099 CLAMPCLAMP
-
92171B92171-1133 CLAMPCLAMP
-
92171C92171-1216 CLAMPCLAMP
-
92171D92171-1217 CLAMPCLAMP
-
92171E92171-1439 CLAMP, OIL PIPE, RIGHTCLAMP, OIL PIPE, RIGHT
-
9219192191-1602 TUBE, BREATHERTUBE, BREATHER
-
132B132Y0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670D1507 O-RING, 7MMO-RING, 7MM
