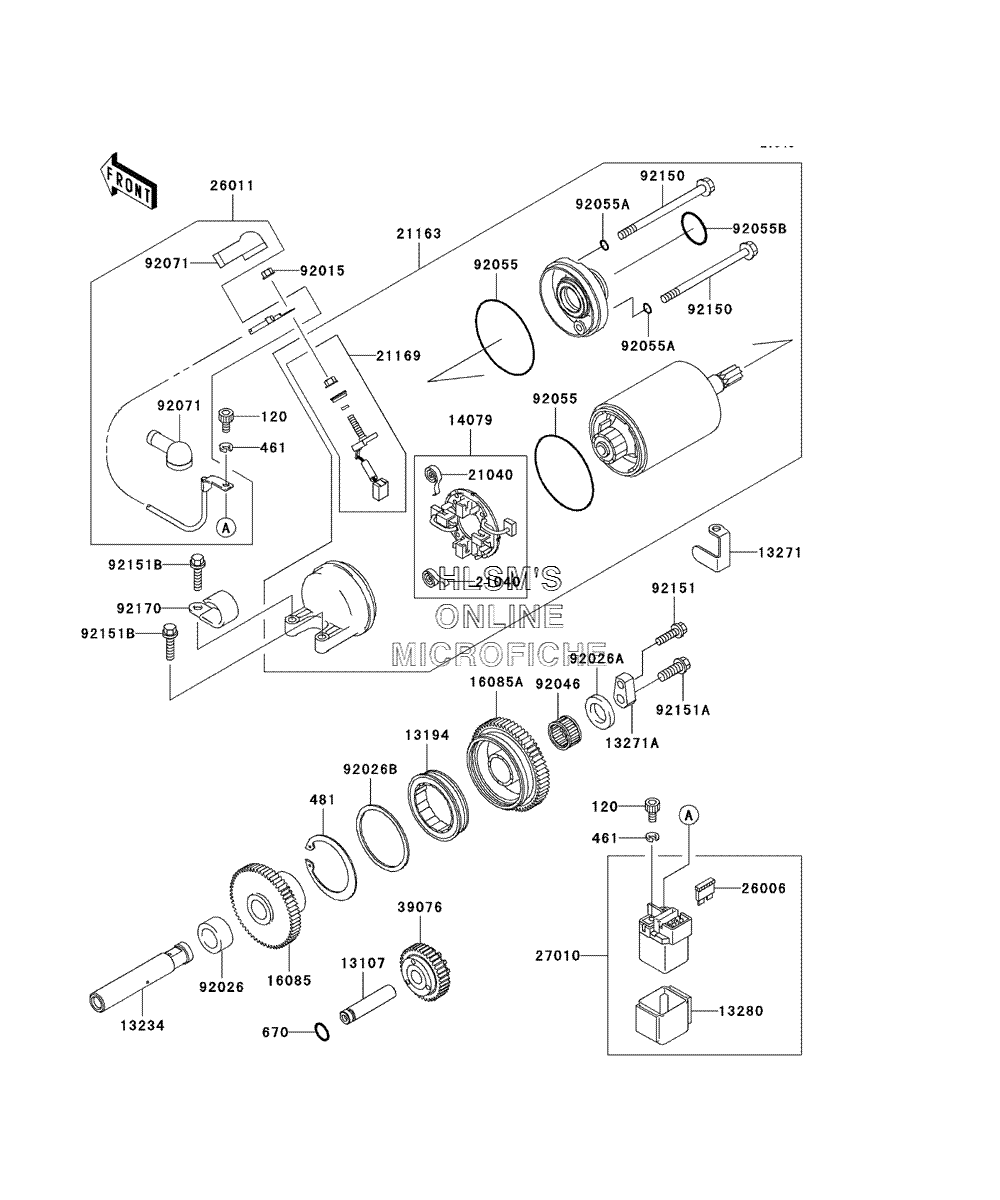

STARTER MOTOR для Kawasaki NINJA ZX-12R - 2003 года выпуска
-
№АртикулНазвание
-
120120S0510 BOLT, SOCKETBOLT, SOCKET
-
461461K0500 WASHER, SPRING, 5MM (BLACK)WASHER, SPRING, 5MM (BLACK)
-
481481J6200 CIRCLIPCIRCLIP
-
670670D1509 O-RING, 9MMO-RING, 9MM
-
1310713107-1422 SHAFTSHAFT
-
1319413194-1111 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1323413234-1114 SHAFT, COMPSHAFT, COMP
-
1327113271-1231 PLATEPLATE
-
13271A13271-1639 PLATEPLATE
-
1328013280-1263 HOLDERHOLDER
-
1407914079-0009 HOLDER, ASSY, STARTERHOLDER, ASSY, STARTER
-
1608516085-1328 GEARGEAR
-
16085A16085-1343 GEARGEAR
-
2104021040-1051 SPRING, BRUSHSPRING, BRUSH
-
2116321163-1302 STARTER, ELECTRICSTARTER, ELECTRIC
-
2116921169-1058 TERMINAL, STARTERTERMINAL, STARTER
-
2600626006-1006 FUSE, 30A, GFUSE, 30A, G
-
2601126011-1749 WIRE, LEADWIRE, LEAD
-
2701027010-1446 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-1074 LIMITERLIMITER
-
9201592015-1623 NUTNUT
-
9202692026-1541 SPACER (LEFT)SPACER (LEFT)
-
92026A92026-1542 SPACER (RIGHT)SPACER (RIGHT)
-
92026B92026-1550 SPACER, ONEWAY CLUTCHSPACER, ONEWAY CLUTCH
-
9204692046-1288 BEARING, NEEDLEBEARING, NEEDLE
-
9205592055-1260 O-RING, 62MMO-RING, 62MM
-
92055A92055-1261 O-RING, 4.5MMO-RING, 4.5MM
-
92055B92055-1262 O-RING, 24.4MMO-RING, 24.4MM
-
9207192071-1120 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
9215092150-1237 BOLTBOLT
-
9215192151-1411 BOLT, 6X22BOLT, 6X22
-
92151A92151-1543 BOLT, 8X22BOLT, 8X22
-
92151B92151-1930 BOLT, 6X25BOLT, 6X25
-
9217092170-1900 CLAMP, HARNESSCLAMP, HARNESS
