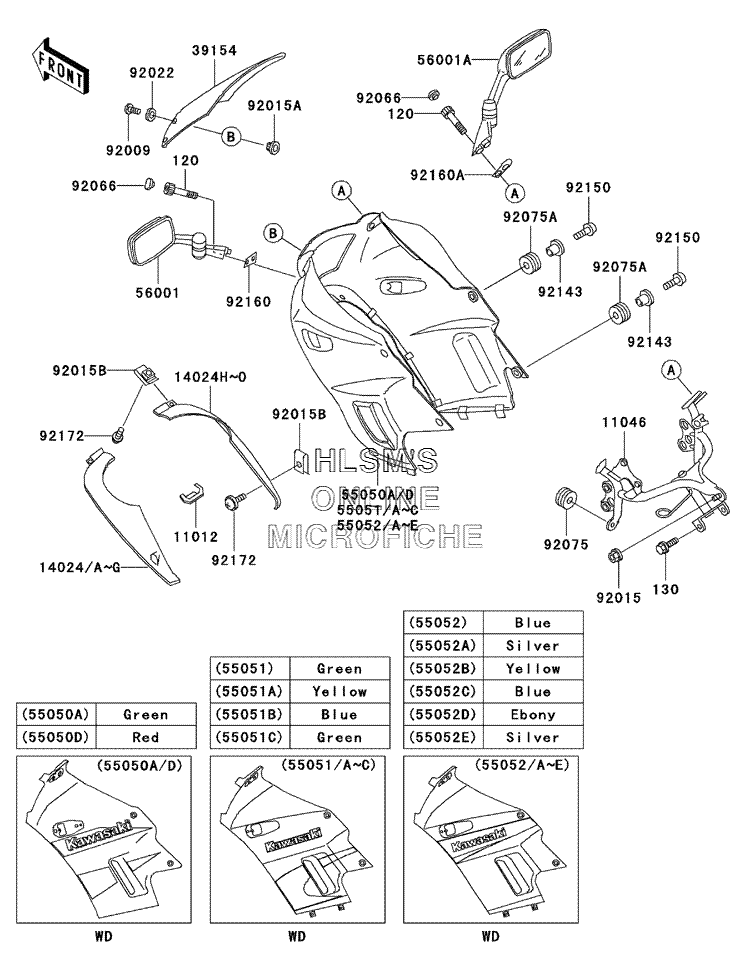

COWLING для Kawasaki NINJA 250R - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1587 CAP, RADIATOR COVERCAP, RADIATOR COVER
-
1104611046-1289 BRACKET, COWLING STAYBRACKET, COWLING STAY
-
14024C14024-1580-KQ COVER, RADIATOR (LEFT) (M.N.BLUE)COVER, RADIATOR (LEFT) (M.N.BLUE)
-
14024D14024-1580-X1 COVER, RADIATOR (LEFT) (G.SILVER)COVER, RADIATOR (LEFT) (G.SILVER)
-
14024F14024-1580-616 COVER, RADIATOR (LEFT) (P.C.YELLOW0COVER, RADIATOR (LEFT) (P.C.YELLOW0
-
14024K14024-1581-KQ COVER, RADIATOR (RIGHT) (M.N.BLUE)COVER, RADIATOR (RIGHT) (M.N.BLUE)
-
14024L14024-1581-X1 COVER, RADIATOR (RIGHT) (G.SILVER)COVER, RADIATOR (RIGHT) (G.SILVER)
-
14024N14024-1581-616 COVER, RADIATOR (RIGHT) (P.C.YELLOW)COVER, RADIATOR (RIGHT) (P.C.YELLOW)
-
3915439154-1083 WINDSHIELDWINDSHIELD
-
5505255052-5041-KQ COWLING, ASSY., UPPER (M.N.BLUE)COWLING, ASSY., UPPER (M.N.BLUE)
-
55052A55052-5042-X1 COWLING, ASSY., UPPER (G.SILVER)COWLING, ASSY., UPPER (G.SILVER)
-
55052B55052-5043-616 COWLING, ASSY., UPPER (P.C.YELLOW)COWLING, ASSY., UPPER (P.C.YELLOW)
-
120120S0840 BOLT, SOCKET, 8X40 (BLACK)BOLT, SOCKET, 8X40 (BLACK)
-
130130J0610 BOLT, FLANGEDBOLT, FLANGED
-
5600156001-1337 MIRROR, ASSY. (LEFT)MIRROR, ASSY. (LEFT)
-
56001A56001-1338 MIRROR, ASSY. (RIGHT)MIRROR, ASSY. (RIGHT)
-
9200992009-1652 SCREW, 5X12SCREW, 5X12
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015A92015-1343 NUT, 5MM, COWLINGNUT, 5MM, COWLING
-
92015B92015-1602 NUT, 6MMNUT, 6MM
-
9202292022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9206692066-1312 PLUGPLUG
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1634 DAMPERDAMPER
-
9214392143-1226 COLLAR (BLACK)COLLAR (BLACK)
-
9215092150-1553 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9216092160-1060 DAMPER, MIRROR (LEFT)DAMPER, MIRROR (LEFT)
-
92160A92160-1061 DAMPER, MIRROR (RIGHT)DAMPER, MIRROR (RIGHT)
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
