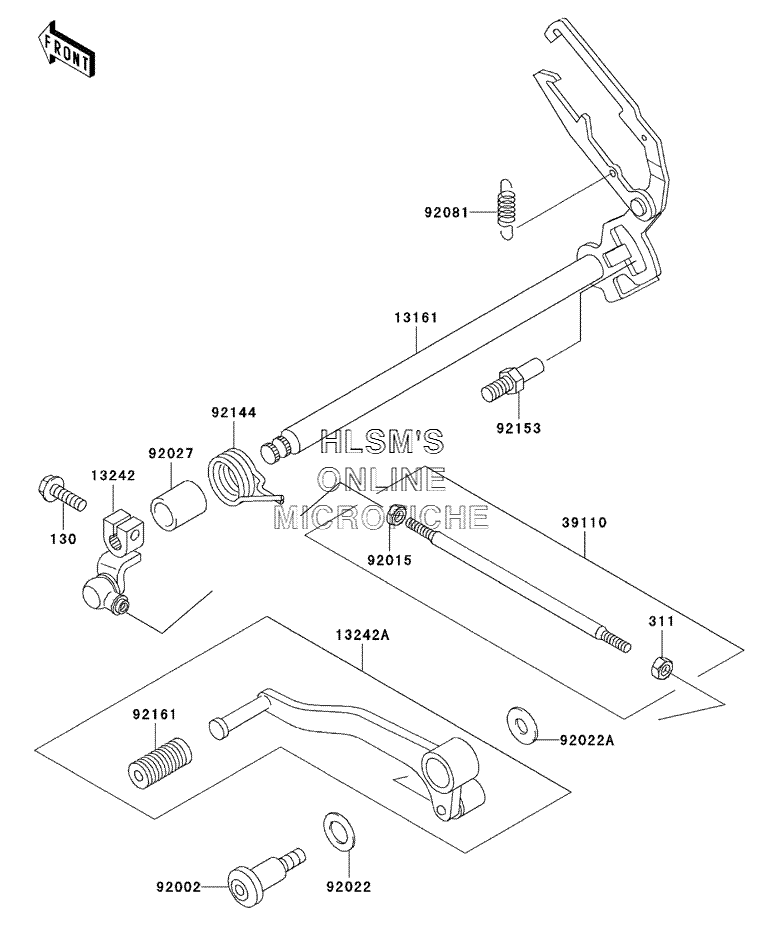

GEAR CHANGE MECHANISM для Kawasaki NINJA 250R - 2004 года выпуска
-
№АртикулНазвание
-
130130S0620 BOLT, FLANGED, 6X20 (BLACK)BOLT, FLANGED, 6X20 (BLACK)
-
311311J0600 NUT, HEXNUT, HEX
-
1316113161-1131 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1324213242-1214 LEVER, ASSY., CHANGELEVER, ASSY., CHANGE
-
13242A13242-1215 LEVER, ASSY., CHANGE, PEDALLEVER, ASSY., CHANGE, PEDAL
-
3911039110-1075 ROD, ASSY., TIEROD, ASSY., TIE
-
9200292002-1926 BOLT, CHANGE PEDALBOLT, CHANGE PEDAL
-
9201592015-1178 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
-
9202292022-072 WASHER, 12.5X21X1.2WASHER, 12.5X21X1.2
-
92022A92022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
9202792027-1440 COLLAR, 13X18.3X21.5COLLAR, 13X18.3X21.5
-
9208192081-076 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9214492144-1074 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9215392153-0720 BOLT, 8X15.5BOLT, 8X15.5
-
9216192161-1300 DAMPER, CHANGE LEVERDAMPER, CHANGE LEVER
