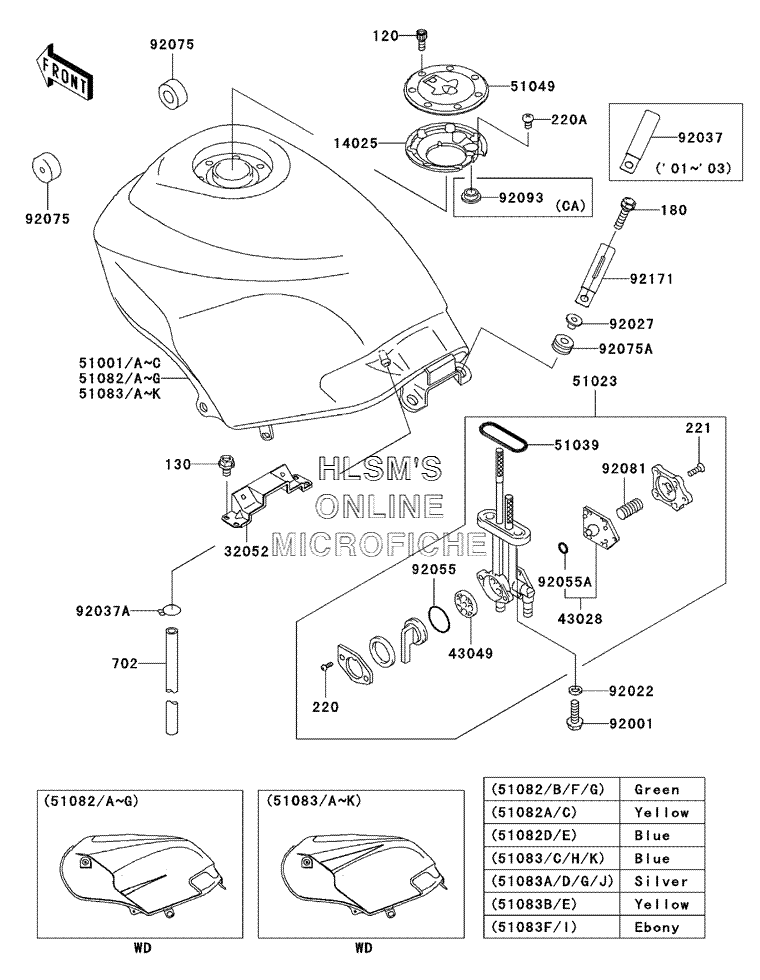

FUEL TANK для Kawasaki NINJA 250R - 2004 года выпуска
-
№АртикулНазвание
-
1402514025-1913 COVER, TANK CAPCOVER, TANK CAP
-
3205232052-1254 BRACKET, TANK, REARBRACKET, TANK, REAR
-
4302843028-1068 DIAPHRAGM, TAPDIAPHRAGM, TAP
-
4304943049-1103 PACKINGPACKING
-
5102351023-1393 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5103951039-003 RING, TAP FLANGEDRING, TAP FLANGED
-
5104951049-1131 CAP, TANK, FUELCAP, TANK, FUEL
-
5108351083-5159-KQ TANK, COMP, FUEL (M.N.BLUE) (US ONLY)TANK, COMP, FUEL (M.N.BLUE) (US ONLY)
-
51083A51083-5160-X1 TANK, COMP, FUEL (G.SILVER) (US ONLY)TANK, COMP, FUEL (G.SILVER) (US ONLY)
-
51083B51083-5161-616 TANK, COMP, FUEL (P.C.YELLOW) (US ONLY)TANK, COMP, FUEL (P.C.YELLOW) (US ONLY)
-
51083C51083-5162-KQ TANK, COMP, FUEL (M.N.BLUE) (CALIF. ONLY)TANK, COMP, FUEL (M.N.BLUE) (CALIF. ONLY)
-
51083D51083-5163-X1 TANK, COMP, FUEL (G.SILVER) (CALIF. ONLY)TANK, COMP, FUEL (G.SILVER) (CALIF. ONLY)
-
51083E51083-5164-616 TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
130130H0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
180180D0625 BOLT, UPSET, WS, 6X25BOLT, UPSET, WS, 6X25
-
220220C0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220F0508 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
-
702702A071000 TUBE, RUBBER, 7X10X1000TUBE, RUBBER, 7X10X1000
-
9200192001-1091 BOLT, 6X20BOLT, 6X20
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9202792027-251 COLLAR, L=13.1COLLAR, L=13.1
-
92037A92037-1712 CLAMPCLAMP
-
9205592055-1085 O-RING, TAP LEVERO-RING, TAP LEVER
-
92055A92055-1664 O-RINGO-RING
-
9207592075-1115 DAMPER, FUEL TANK, FRONTDAMPER, FUEL TANK, FRONT
-
92075A92075-1690 DAMPERDAMPER
-
9208192081-1240 SPRING, TAP DIAPHRAGMSPRING, TAP DIAPHRAGM
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9217192171-1425 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
