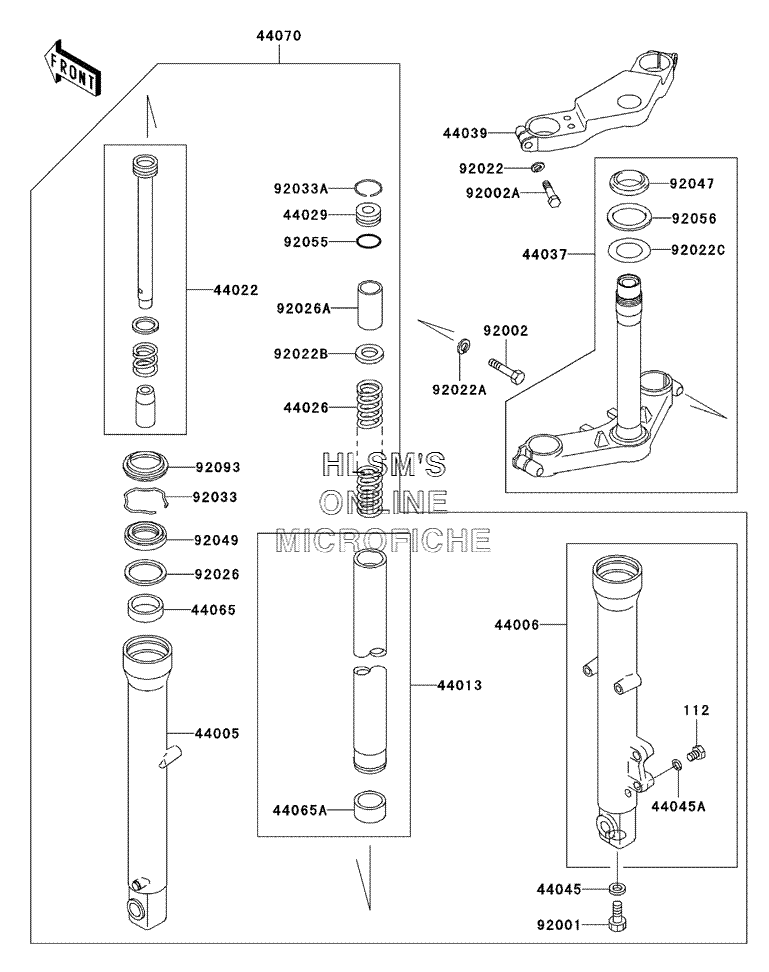

FRONT FORK для Kawasaki NINJA 250R - 2004 года выпуска
-
№АртикулНазвание
-
112112B0608 BOLT, UPSETBOLT, UPSET
-
4400544005-1258 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1255 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1273 PIPE, FORK INNERPIPE, FORK INNER
-
4402244022-1206 CYLINDER, FORKCYLINDER, FORK
-
4402644026-1362 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1127 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403744037-1217 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1163 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
44045A44045-052 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
4406544065-1068 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1082 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
4407044070-5026 DAMPER, ASSY., FORKDAMPER, ASSY., FORK
-
9200192001-1464 BOLT, FORK CYLINDERBOLT, FORK CYLINDER
-
9200292002-1811 BOLT, 10X32BOLT, 10X32
-
92002A92002-1959 BOLTBOLT
-
9202292022-1552 WASHER, SPRING, 8MMWASHER, SPRING, 8MM
-
92022A92022-1704 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
92022B92022-1879 WASHERWASHER
-
92022C92022-231 WASHER, 30.5X50X0.6WASHER, 30.5X50X0.6
-
9202692026-1038 SPACER, FORKSPACER, FORK
-
92026A92026-1291 SPACERSPACER
-
9203392033-1219 RING, SNAP, FORKRING, SNAP, FORK
-
92033A92033-1236 RING, SNAPRING, SNAP
-
9204792047-012 RACE, STEERING STEM BEARINGRACE, STEERING STEM BEARING
-
9204992049-1226 SEAL, OIL, FORKSEAL, OIL, FORK
-
9205592055-1384 O-RING, FORK SPRING SEATO-RING, FORK SPRING SEAT
-
9205692056-003 SEAL, OIL, STEERING STEMSEAL, OIL, STEERING STEM
-
9209392093-1196 SEAL, FORKSEAL, FORK
