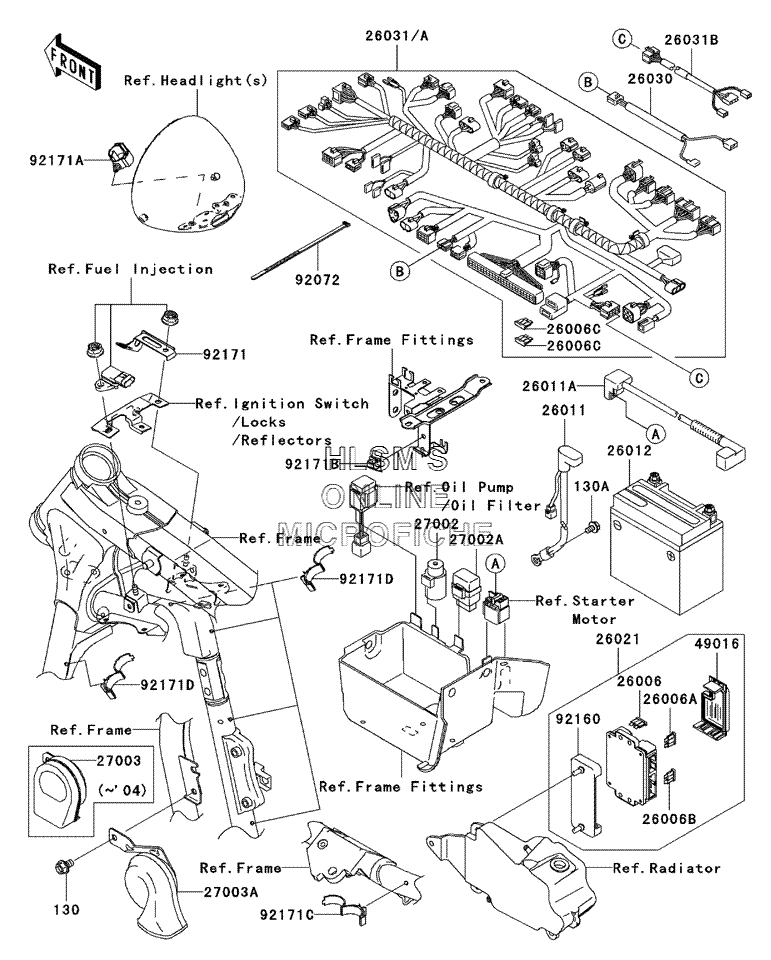

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Vulcan 1600 Classic - 2004 года выпуска
-
№АртикулНазвание
-
130130J0812 BOLT, FLANGED, M8X12BOLT, FLANGED, M8X12
-
130A130V0610 BOLT, FLANGED, M6X10BOLT, FLANGED, M6X10
-
2600626006-1006 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1007 FUSE, 10A, RFUSE, 10A, R
-
26006B26006-1061 FUSE, 15A, BFUSE, 15A, B
-
26006C26006-1075 FUSE, 15AFUSE, 15A
-
2601126011-0007 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26011A26011-0018 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
2601226012-1371 BATTERY, MF, FTZ16, BS, 12V 18AHBATTERY, MF, FTZ16, BS, 12V 18AH
-
2602126021-0002 JUNCTION BOXJUNCTION BOX
-
2603026030-1450 HARNESS, SUBHARNESS, SUB
-
26031A26031-0080 HARNESS, MAINHARNESS, MAIN
-
26031B26031-1077 HARNESS, TAILHARNESS, TAIL
-
2700227002-1051 RELAY, ASSYRELAY, ASSY
-
27002A27002-1113 RELAY, ASSY, SIGNAL LAMPRELAY, ASSY, SIGNAL LAMP
-
2700327003-0003 HORNHORN
-
4901649016-0005 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9207292072-1197 BAND, L=365BAND, L=365
-
9216092160-1650 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9217192171-0065 CLAMP, HARNESS COUPLERCLAMP, HARNESS COUPLER
-
92171A92171-0069 CLAMP, DIA=20CLAMP, DIA=20
-
92171B92171-1269 CLAMP, HARNESSCLAMP, HARNESS
-
92171C92171-1423 CLAMP, DIA=10CLAMP, DIA=10
-
92171D92171-1424 CLAMP, DIA=15CLAMP, DIA=15
