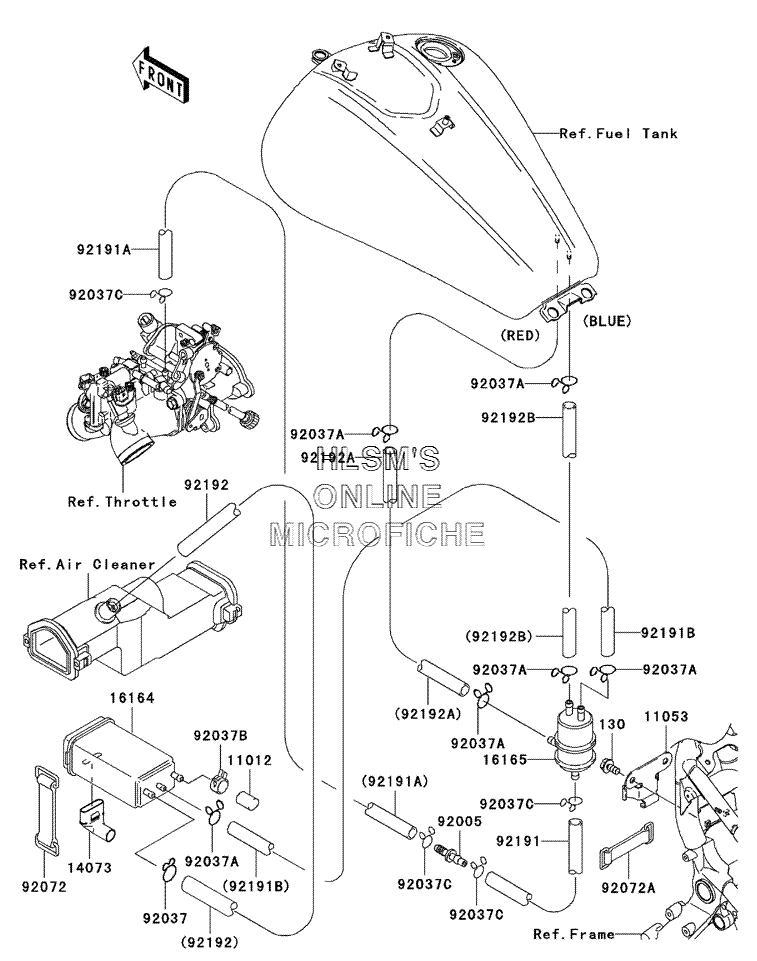

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 1600 Classic - 2004 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGED, M6X12BOLT, FLANGED, M6X12
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1105311053-0006 BRACKET, EVAPOBRACKET, EVAPO
-
1407314073-1219 DUCT, CANISTERDUCT, CANISTER
-
1616416164-1070 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1206 FITTINGFITTING
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
92037C92037-1712 CLAMPCLAMP
-
9207292072-045 BAND, L=90BAND, L=90
-
92072A92072-1419 BAND, L=50BAND, L=50
-
9219192191-1375 TUBE, THROTTLE, SEPARATOR (WHITE)TUBE, THROTTLE, SEPARATOR (WHITE)
-
92191A92191-1414 TUBE, 4X9X180 (WHITE)TUBE, 4X9X180 (WHITE)
-
92191B92191-1677 TUBE, SEPARATOR, CANISTER (BLUE)TUBE, SEPARATOR, CANISTER (BLUE)
-
9219292192-0027 TUBE, CANISTER, FILTER (GREEN)TUBE, CANISTER, FILTER (GREEN)
-
92192A92192-0036 TUBE, TANK, SEPARATOR (RED)TUBE, TANK, SEPARATOR (RED)
-
92192B92192-0037 TUBE (BLUE)TUBE (BLUE)
