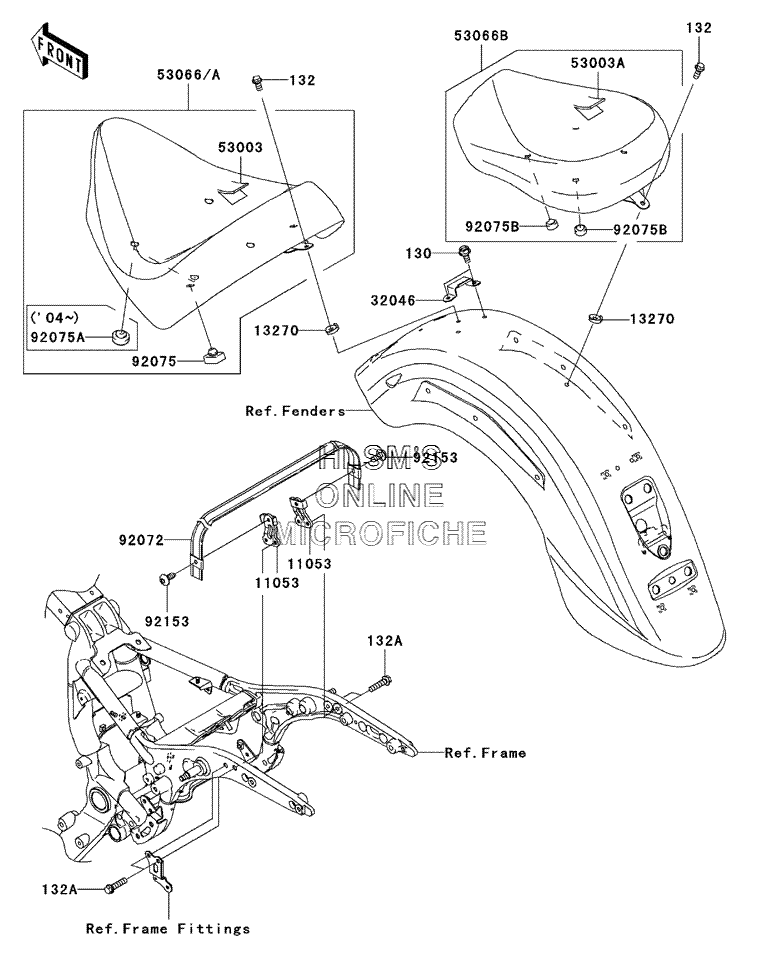

SEAT для Kawasaki Vulcan 1600 Classic - 2004 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK)BOLT, FLANGED, 6X14 (BLACK)
-
132132J0614 BOLT, FLANGED, SMALL, M6X14BOLT, FLANGED, SMALL, M6X14
-
132A132J0625 BOLT, FLANGED, SMALL, M6X25BOLT, FLANGED, SMALL, M6X25
-
1105311053-0280 BRACKET, SEAT BANDBRACKET, SEAT BAND
-
1327013270-1484 PLATE, SEATPLATE, SEAT
-
3204632046-1537 BRACKET, SEATBRACKET, SEAT
-
5300353003-1531-MA LEATHER, FRONT SEAT (BLACK)LEATHER, FRONT SEAT (BLACK)
-
53003A53003-1532-MA LEATHER, REAR SEAT (BLACK)LEATHER, REAR SEAT (BLACK)
-
53066A53066-0020-MA SEAT, ASSY, FRONT (BLACK)SEAT, ASSY, FRONT (BLACK)
-
53066B53066-1078-MA SEAT, ASSY, REAR (BLACK)SEAT, ASSY, REAR (BLACK)
-
9207292072-0020 BAND, SEATBAND, SEAT
-
9207592075-099 DAMPERDAMPER
-
92075A92075-1045 DAMPERDAMPER
-
92075B92075-1927 DAMPERDAMPER
-
9215392153-0374 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
