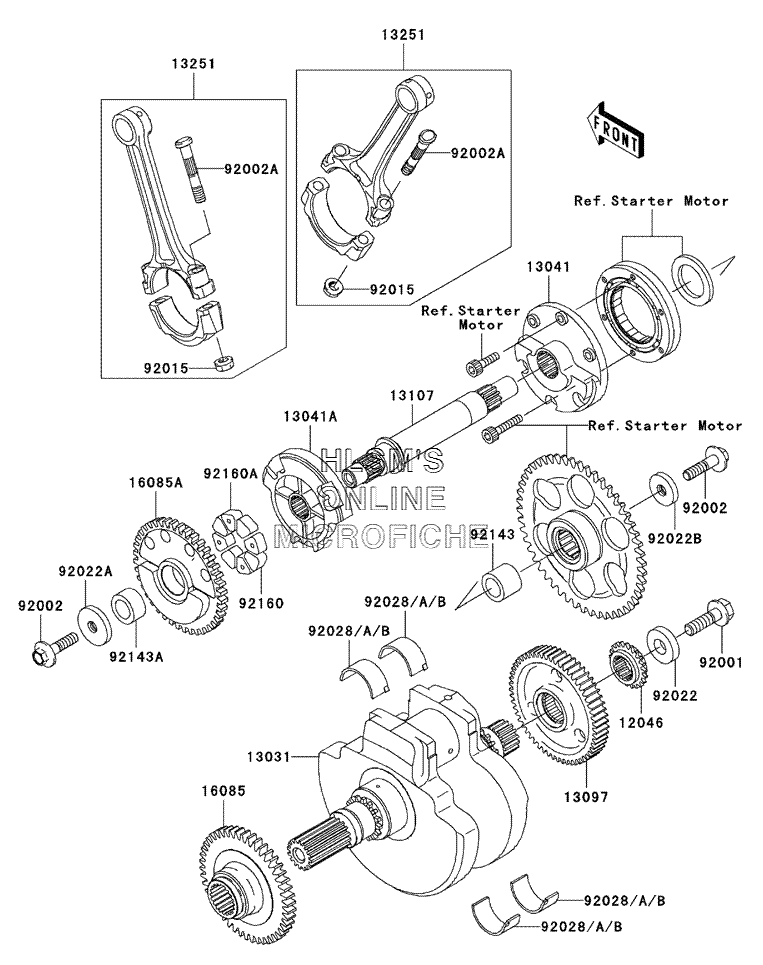

CRANKSHAFT для Kawasaki Vulcan 1600 Classic - 2004 года выпуска
-
№АртикулНазвание
-
1204612046-1103 SPROCKET, WATER PUMPSPROCKET, WATER PUMP
-
1303113031-0019 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1304113041-1089 BALANCER (RIGHT)BALANCER (RIGHT)
-
13041A13041-1093 BALANCER (LEFT)BALANCER (LEFT)
-
1309713097-1369 GEAR, PRIMARY SPUR (56 TEETH)GEAR, PRIMARY SPUR (56 TEETH)
-
1310713107-1524 SHAFT, BALANCERSHAFT, BALANCER
-
1325113251-1147-DD ROD, ASSY, CONNECTING, DROD, ASSY, CONNECTING, D
-
1608516085-0023 GEAR, BALANCER (46 TEETH)GEAR, BALANCER (46 TEETH)
-
16085A16085-1366 GEAR, BALANCER (46 TEETH)GEAR, BALANCER (46 TEETH)
-
9200192001-1146 BOLT, FLANGED, 12X40BOLT, FLANGED, 12X40
-
9200292002-1296 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
92002A92002-1896 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
9201592015-1643 NUT, CONNECTING RODNUT, CONNECTING ROD
-
9202292022-1904 WASHER, 12X40X6WASHER, 12X40X6
-
92022A92022-1905 WASHER, 10X40X6WASHER, 10X40X6
-
92022B92022-1906 WASHER, 10X33X6WASHER, 10X33X6
-
9202892028-1474 BUSHING, CONNECTING ROD (BLUE)BUSHING, CONNECTING ROD (BLUE)
-
92028A92028-1475 BUSHING, CONNECTING ROD (BLACK)BUSHING, CONNECTING ROD (BLACK)
-
92028B92028-1476 BUSHING, CONNECTING ROD (BROWN)BUSHING, CONNECTING ROD (BROWN)
-
9214392143-1093 COLLAR, 20X30X24COLLAR, 20X30X24
-
92143A92143-1821 COLLAR, 20X31X16COLLAR, 20X31X16
-
9216092160-1725 DAMPERDAMPER
-
92160A92160-1726 DAMPERDAMPER
