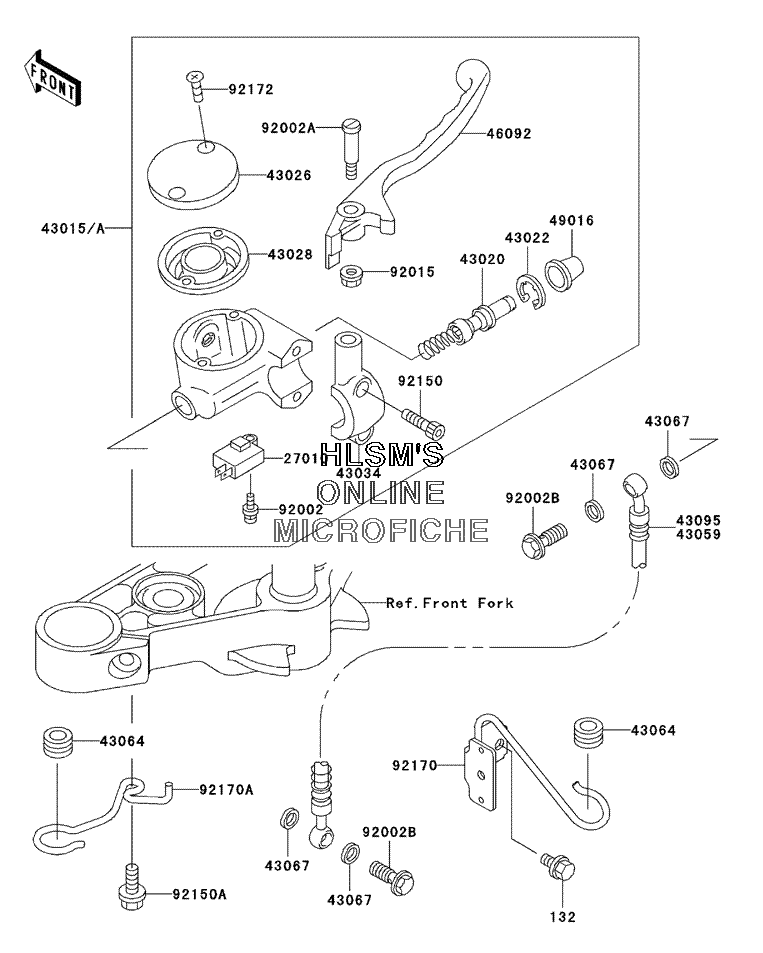

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 500 LTD - 2004 года выпуска
-
№АртикулНазвание
-
132132E0610 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0010 CYLINDER, ASSY., MASTER, FRONTCYLINDER, ASSY., MASTER, FRONT
-
4302043020-1098 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1078 CAP, BRAKE (SILVER)CAP, BRAKE (SILVER)
-
4302843028-1071 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1102 HOLDER, BRAKE (SILVER)HOLDER, BRAKE (SILVER)
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1278 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4609246092-1172 LEVER, GRIP, FRONT BRAKELEVER, GRIP, FRONT BRAKE
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
92002B92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
92150A92150-1340 BOLT, 6X14BOLT, 6X14
-
9217092170-1611 CLAMP, HOSECLAMP, HOSE
-
92170A92170-1647 CLAMP, HOSECLAMP, HOSE
-
9217292172-0089 SCREW, 5MMSCREW, 5MM
