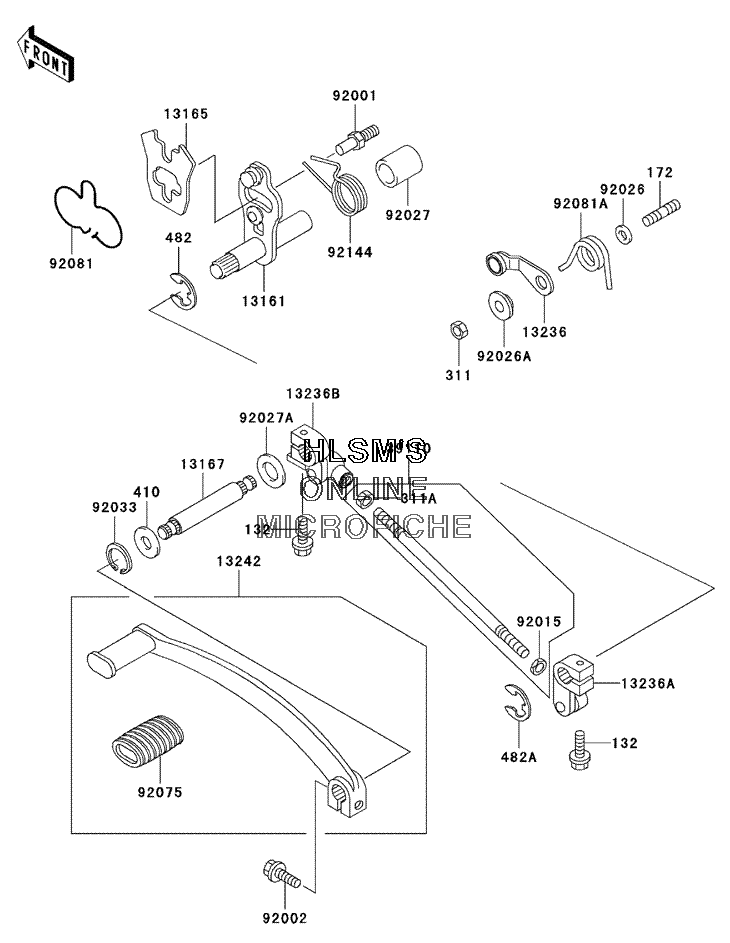

GEAR CHANGE MECHANISM для Kawasaki Vulcan 500 LTD - 2004 года выпуска
-
№АртикулНазвание
-
132132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
172172G0614 BOLT, STUD, 6X14BOLT, STUD, 6X14
-
311311G0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
311A311J0600 NUT, HEXNUT, HEX
-
410410F1200 WASHER, PLAIN, SMALL, 12MM (BLACK)WASHER, PLAIN, SMALL, 12MM (BLACK)
-
482482J0200 CIRCLIP, TYPE, E, 12MMCIRCLIP, TYPE, E, 12MM
-
482A482L7000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
1316113161-1117 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-1034 PAWL, CHANGE LEVERPAWL, CHANGE LEVER
-
1316713167-1059 SHAFT, CHANGESHAFT, CHANGE
-
1323613236-1103 LEVER, COMP, GEAR POSITIONLEVER, COMP, GEAR POSITION
-
13236A13236-1123 LEVER, COMP, CHANGELEVER, COMP, CHANGE
-
13236B13236-1274 LEVER, COMP, CHANGELEVER, COMP, CHANGE
-
1324213242-1331 LEVER, ASSY., CHANGE, PEDALLEVER, ASSY., CHANGE, PEDAL
-
3911039110-1116 ROD, ASSY., TIEROD, ASSY., TIE
-
9200192001-1455 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9201592015-1178 NUTNUT
-
9202692026-094 SPACER, 6.3X12X1.0SPACER, 6.3X12X1.0
-
92026A92026-1217 SPACERSPACER
-
9202792027-1440 COLLAR, 13X18.3X21.5COLLAR, 13X18.3X21.5
-
92027A92027-1855 COLLAR, 13.2X22X5.5COLLAR, 13.2X22X5.5
-
9203392033-1189 RING, SNAP, 11MMRING, SNAP, 11MM
-
9207592075-1585 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9208192081-1785 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
92081A92081-1786 SPRING, POSITION LEVERSPRING, POSITION LEVER
-
9214492144-1644 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
