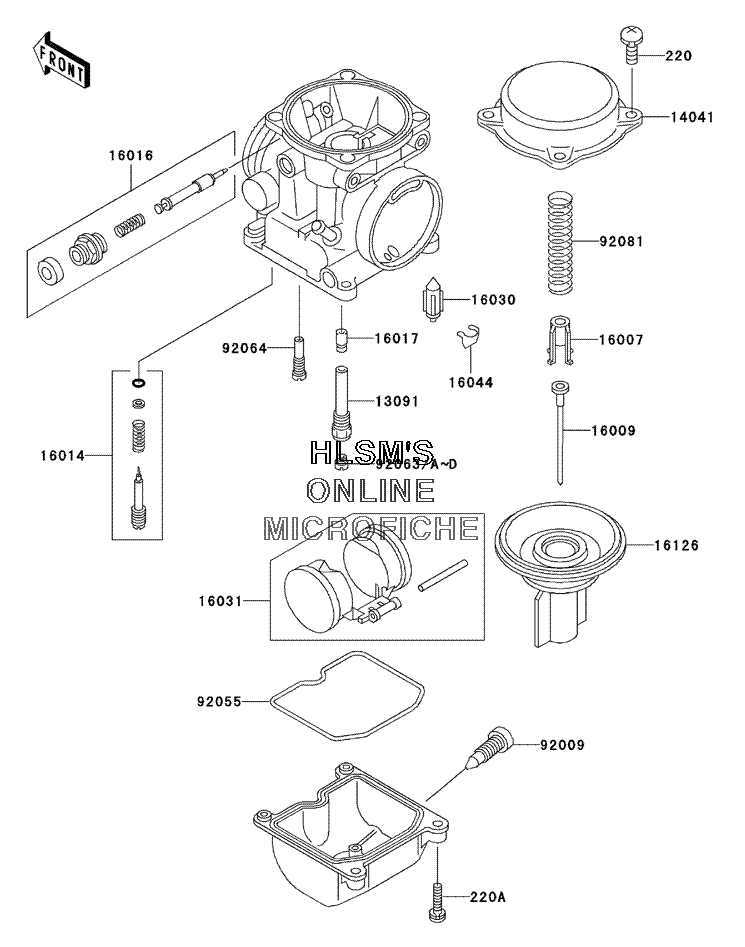

CARBURETOR PARTS для Kawasaki Vulcan 500 LTD - 2004 года выпуска
-
№АртикулНазвание
-
220220D0408 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
1309113091-1713 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1404114041-1076 TOP, CHAMBER, MIXING, OUTERSIDETOP, CHAMBER, MIXING, OUTERSIDE
-
1600716007-1120 SEAT, SPRING, THROTTLE VALVESEAT, SPRING, THROTTLE VALVE
-
1600916009-1895 NEEDLE, JET, N2WENEEDLE, JET, N2WE
-
1601416014-1081 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1092 PLUNGERPLUNGER
-
1601716017-1376 JET, NEEDLEJET, NEEDLE
-
1603016030-1007 VALVE, FLOATVALVE, FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1160 VALVE, VACUUMVALVE, VACUUM
-
9200992009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9205592055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1005 JET, MAIN, #98 (RACING USE ONLY)JET, MAIN, #98 (RACING USE ONLY)
-
92063A92063-1008 JET, MAIN, #100 (RACING USE ONLY)JET, MAIN, #100 (RACING USE ONLY)
-
92063B92063-1009 JET, MAIN, #105 (RACING USE ONLY)JET, MAIN, #105 (RACING USE ONLY)
-
92063C92063-1090 JET, MAIN, #102JET, MAIN, #102
-
92063D92063-1116 JET, MAIN, #108 (RACING USE ONLY)JET, MAIN, #108 (RACING USE ONLY)
-
9206492064-1101 JET, PILOT, #35JET, PILOT, #35
-
9208192081-1925 SPRING, VACUUM VALVESPRING, VACUUM VALVE
