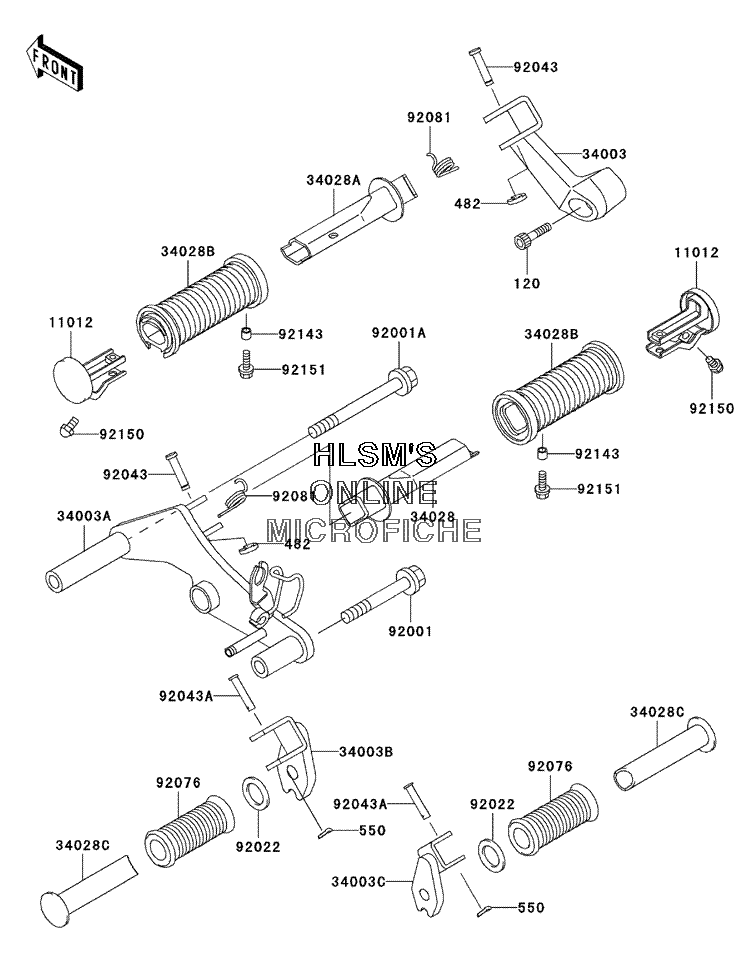

FOOTRESTS для Kawasaki Vulcan 500 LTD - 2004 года выпуска
-
№АртикулНазвание
-
120120S1245 BOLT, SOCKET, 12X45BOLT, SOCKET, 12X45
-
482482L7000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1101211012-1957 CAP, FRONT STEPCAP, FRONT STEP
-
3400334003-1437 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-1438 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
34003B34003-1439 HOLDER, STEP, REAR (LEFT)HOLDER, STEP, REAR (LEFT)
-
34003C34003-1440 HOLDER, STEP, REAR (RIGHT)HOLDER, STEP, REAR (RIGHT)
-
3402834028-1412 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
34028A34028-1413 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028B34028-1414 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028C34028-1420 STEP, REARSTEP, REAR
-
9200192001-1618 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
92001A92001-1751 BOLT, FLANGED, 10X105 (BLACK)BOLT, FLANGED, 10X105 (BLACK)
-
9202292022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1464 PIN, 6X28PIN, 6X28
-
9207692076-020 DAMPERDAMPER
-
9208192081-1133 SPRING, STEPSPRING, STEP
-
9214392143-1336 COLLAR, 5.6X8X7COLLAR, 5.6X8X7
-
9215092150-1114 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9215192151-1096 BOLT, SOCKET, 5X20BOLT, SOCKET, 5X20
