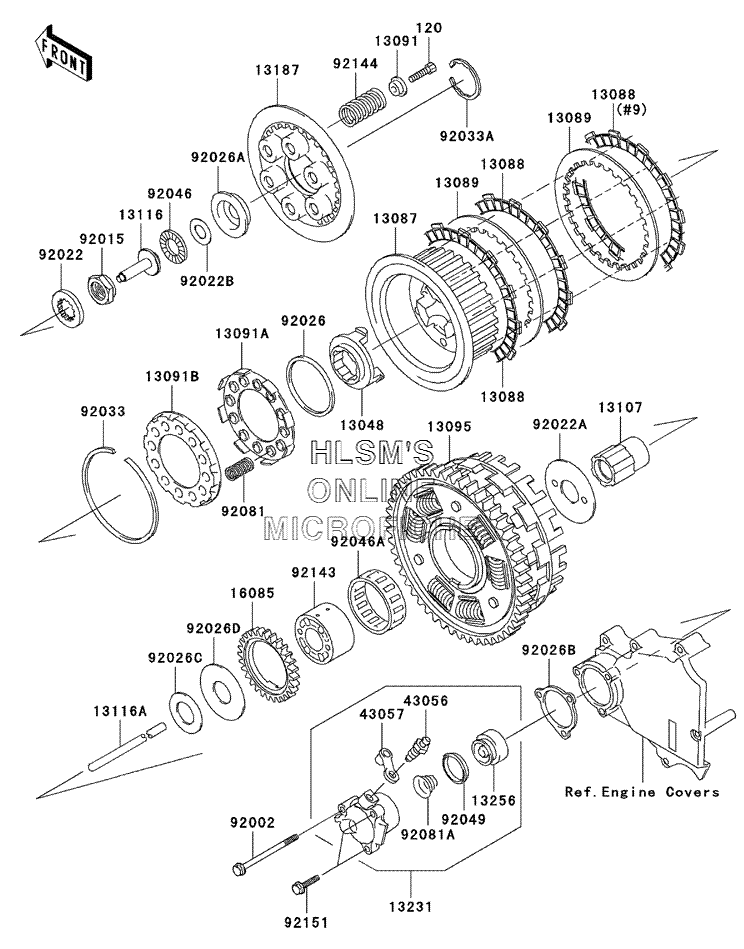

CLUTCH для Kawasaki ZZR1200 - 2004 года выпуска
-
№АртикулНазвание
-
120120Q0625 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
1304813048-1007 CAM, DAMPERCAM, DAMPER
-
1308713087-1121 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1145 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1092 PLATE, CLUTCHPLATE, CLUTCH
-
1309113091-1041 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
13091A13091-1042 HOLDER, DAMPER SPRING (RIGHT)HOLDER, DAMPER SPRING (RIGHT)
-
13091B13091-1043 HOLDER, DAMPER SPRING (LEFT)HOLDER, DAMPER SPRING (LEFT)
-
1309513095-1415 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310713107-1299 SHAFT, CLUTCHSHAFT, CLUTCH
-
1311613116-1102 ROD, PUSH, CLUTCHROD, PUSH, CLUTCH
-
13116A13116-1140 ROD, PUSH, CLUTCHROD, PUSH, CLUTCH
-
1318713187-1069 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
1323113231-1076 RELEASE, ASSY, CLUTCHRELEASE, ASSY, CLUTCH
-
1325613256-1052 PISTONPISTON
-
1608516085-1235 GEAR, OIL PUMP (37 TEETH)GEAR, OIL PUMP (37 TEETH)
-
4305643056-1052 BREATHERBREATHER
-
4305743057-1001 CAP, BREATHERCAP, BREATHER
-
9200292002-1568 BOLT, 6X80BOLT, 6X80
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1114 WASHER, TOOTHED, 25X40X5WASHER, TOOTHED, 25X40X5
-
92022A92022-1221 WASHER, CLUTCH THRUSTWASHER, CLUTCH THRUST
-
92022B92022-1463 WASHER, 15.1X29X1.0WASHER, 15.1X29X1.0
-
9202692026-1043 SPACER, 59X70X3.5SPACER, 59X70X3.5
-
92026A92026-1202 SPACER, CLUTCHSPACER, CLUTCH
-
92026B92026-1263 SPACER, CLUTCH RELEASESPACER, CLUTCH RELEASE
-
92026C92026-1306 SPACER, 25X45X2.0SPACER, 25X45X2.0
-
92026D92026-1307 SPACER, 25X62X2.0SPACER, 25X62X2.0
-
9203392033-1029 RING, SNAPRING, SNAP
-
92033A92033-1177 RING, SNAP, 50MMRING, SNAP, 50MM
-
9204692046-1052 BEARING, NEEDLE, AXK1102BEARING, NEEDLE, AXK1102
-
92046A92046-1200 BEARING, NEEDLE, K550X62X18BEARING, NEEDLE, K550X62X18
-
9204992049-1165 SEAL, OIL, PISTONSEAL, OIL, PISTON
-
9208192081-1115 SPRING, CLUTCH DAMPERSPRING, CLUTCH DAMPER
-
92081A92081-1644 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
9214392143-1429 COLLAR, CLUTCHCOLLAR, CLUTCH
-
9214492144-1473 SPRING, CLUTCHSPRING, CLUTCH
-
9215192151-1190 BOLT, 6X25BOLT, 6X25
