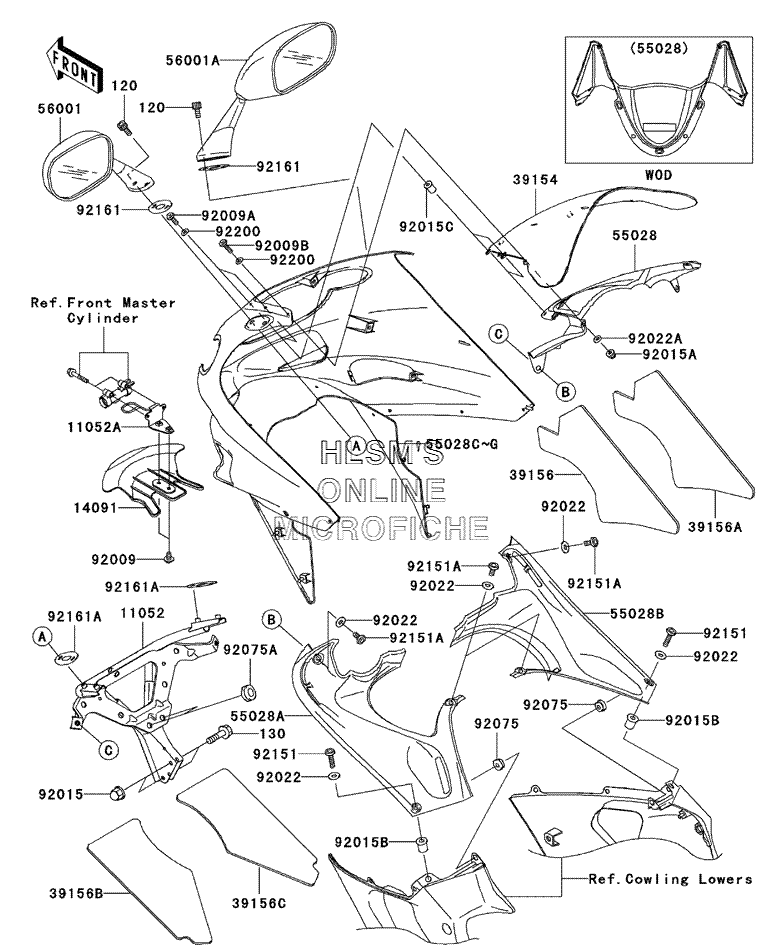

COWLING для Kawasaki ZZR1200 - 2004 года выпуска
-
№АртикулНазвание
-
120120P0616 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
130130J0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
1105211052-1675 BRACKET, METER AND MIRRORBRACKET, METER AND MIRROR
-
11052A11052-1870 BRACKET, UNDER BRACKET COVERBRACKET, UNDER BRACKET COVER
-
1409114091-1504 COVER, UNDER BRACKETCOVER, UNDER BRACKET
-
3915439154-1156 WINDSHIELDWINDSHIELD
-
3915639156-1712 PAD, UPPER COWLING (LEFT)PAD, UPPER COWLING (LEFT)
-
39156A39156-1713 PAD, UPPER COWLING (RIGHT)PAD, UPPER COWLING (RIGHT)
-
39156B39156-1714 PAD, INNER COWLING, REAR (LEFT)PAD, INNER COWLING, REAR (LEFT)
-
39156C39156-1715 PAD, INNER COWLING, REAR (RIGHT)PAD, INNER COWLING, REAR (RIGHT)
-
5502855028-1444-265 COWLING, INNER, FRONT (M.F.BLACK)COWLING, INNER, FRONT (M.F.BLACK)
-
55028A55028-1445-265 COWLING, INNER, REAR (LEFT) (M.F.BLACK)COWLING, INNER, REAR (LEFT) (M.F.BLACK)
-
55028B55028-1446-265 COWLING, INNER, REAR (RIGHT) (M.F.BLACK)COWLING, INNER, REAR (RIGHT) (M.F.BLACK)
-
55028E55028-1447-235 COWLING, UPPER (C.T.BLUE) (CANADA ONLY)COWLING, UPPER (C.T.BLUE) (CANADA ONLY)
-
55028F55028-1447-473 COWLING, UPPER (M.SILVER)COWLING, UPPER (M.SILVER)
-
5600156001-1543 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-1544 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9200992009-1661 SCREW, 6X10SCREW, 6X10
-
92009A92009-1909 SCREW, 5X16SCREW, 5X16
-
92009B92009-1934 SCREW, 5X20SCREW, 5X20
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015A92015-1263 NUT, LOCK, FLANGE CAP, 5MMNUT, LOCK, FLANGE CAP, 5MM
-
92015B92015-1700 NUTNUT
-
92015C92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
92022A92022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9207592075-1011 DAMPERDAMPER
-
92075A92075-1067 DAMPERDAMPER
-
9215192151-1611 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92151A92151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9216192161-1234 DAMPER, MIRRORDAMPER, MIRROR
-
92161A92161-1298 DAMPER, MIRRORDAMPER, MIRROR
-
9220092200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
