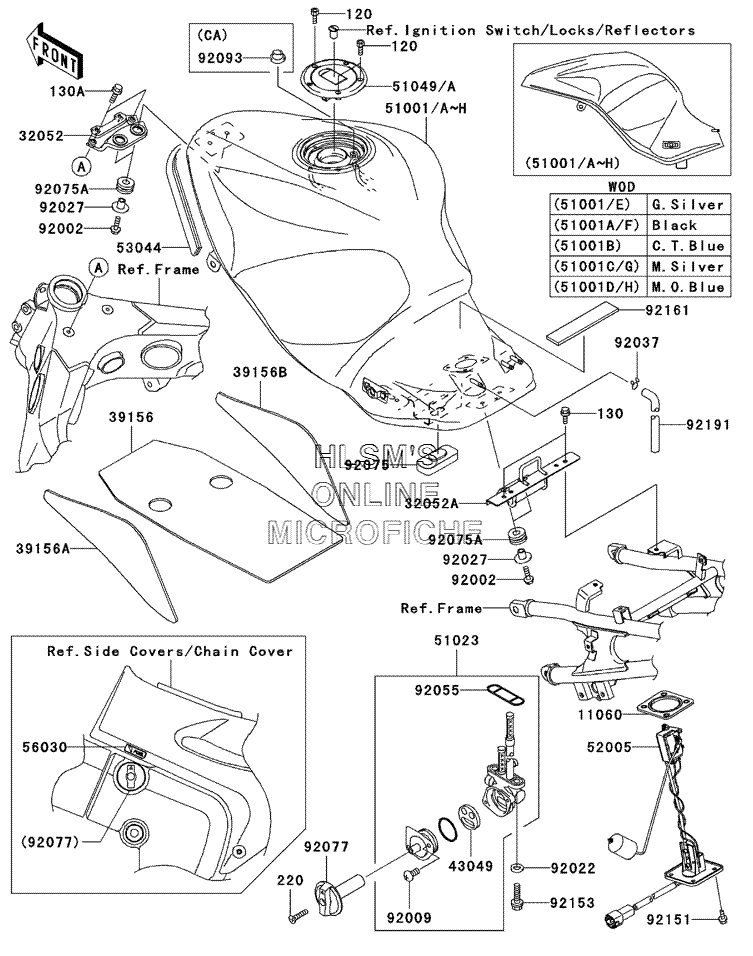

FUEL TANK для Kawasaki ZZR1200 - 2004 года выпуска
-
№АртикулНазвание
-
1106011060-1952 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
3205232052-1559 BRACKET, TANK, FRONTBRACKET, TANK, FRONT
-
32052A32052-1560 BRACKET, TANK, REARBRACKET, TANK, REAR
-
3915639156-1709 PAD, FUEL TANK, CENTERPAD, FUEL TANK, CENTER
-
39156A39156-1710 PAD, FUEL TANK (LEFT)PAD, FUEL TANK (LEFT)
-
39156B39156-1711 PAD, FUEL TANK (RIGHT)PAD, FUEL TANK (RIGHT)
-
4304943049-1099 PACKING, TAP VALVEPACKING, TAP VALVE
-
51001B51001-1672-235 TANK, COMP, FUEL (C.T.BLUE) (CANADA ONLY)TANK, COMP, FUEL (C.T.BLUE) (CANADA ONLY)
-
51001C51001-1672-473 TANK, COMP, FUEL (M.SILVER) (EXCEPT CALIF.)TANK, COMP, FUEL (M.SILVER) (EXCEPT CALIF.)
-
51001G51001-1673-473 TANK, COMP, FUEL (M.SILVER) (CALIF. ONLY)TANK, COMP, FUEL (M.SILVER) (CALIF. ONLY)
-
5102351023-1368 TAP, ASSY, FUELTAP, ASSY, FUEL
-
51049A51049-1127 CAP, TANK, FUELCAP, TANK, FUEL
-
5200552005-1155 GAUGE, FUELGAUGE, FUEL
-
5304453044-1329 TRIM, L=600TRIM, L=600
-
5603056030-1281 LABEL, FUEL TAP KNOBLABEL, FUEL TAP KNOB
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9200992009-1386 SCREW, 3X8SCREW, 3X8
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9202792027-251 COLLAR, L=13.1COLLAR, L=13.1
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
9207592075-1114 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
92075A92075-1690 DAMPERDAMPER
-
9207792077-1131 KNOB, FUEL TAPKNOB, FUEL TAP
-
120120S0516 BOLT, SOCKETBOLT, SOCKET
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
130A130J0620 BOLT, FLANGEDBOLT, FLANGED
-
220220F0416 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9215192151-1599 BOLT, 5X12BOLT, 5X12
-
9215392153-0514 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9216192161-1299 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9219192191-1272 TUBE, DRAINTUBE, DRAIN
