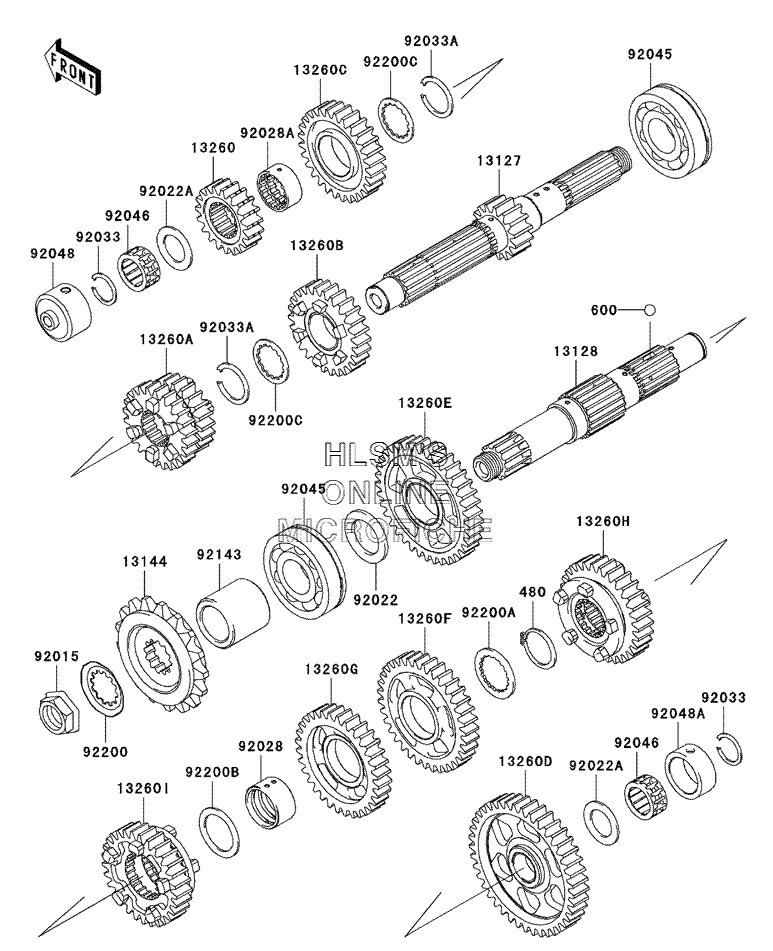

TRANSMISSION для Kawasaki ZZR1200 - 2004 года выпуска
-
№АртикулНазвание
-
480480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1291 SHAFT, TRANSMISSION INPUT (15 TEETH)SHAFT, TRANSMISSION INPUT (15 TEETH)
-
1312813128-1255 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1224 SPROCKET, OUTPUT (17 TEETH)SPROCKET, OUTPUT (17 TEETH)
-
1326013260-1952 GEAR, INPUT 2ND (19 TEETH)GEAR, INPUT 2ND (19 TEETH)
-
13260A13260-1953 GEAR, INPUT 3RD AND 4TH (22/24 TEETH)GEAR, INPUT 3RD AND 4TH (22/24 TEETH)
-
13260B13260-1954 GEAR, INPUT 5TH (26 TEETH)GEAR, INPUT 5TH (26 TEETH)
-
13260C13260-1955 GEAR, INPUT TOP (28 TEETH)GEAR, INPUT TOP (28 TEETH)
-
13260D13260-1956 GEAR, OUTPUT LOW (41 TEETH)GEAR, OUTPUT LOW (41 TEETH)
-
13260E13260-1957 GEAR, OUTPUT 2ND (37 TEETH)GEAR, OUTPUT 2ND (37 TEETH)
-
13260F13260-1958 GEAR, OUTPUT 3RD (35 TEETH)GEAR, OUTPUT 3RD (35 TEETH)
-
13260G13260-1959 GEAR, OUTPUT 4TH (32 TEETH)GEAR, OUTPUT 4TH (32 TEETH)
-
13260H13260-1960 GEAR, OUTPUT 5TH (30 TEETH)GEAR, OUTPUT 5TH (30 TEETH)
-
13260I13260-1961 GEAR, OUTPUT TOP (29 TEETH)GEAR, OUTPUT TOP (29 TEETH)
-
9201592015-1210 NUT, 20MMNUT, 20MM
-
9202292022-1219 WASHER, 28.3X42X2.9WASHER, 28.3X42X2.9
-
92022A92022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9202892028-1753 BUSHING, OUTPUT, 3RD AND 4THBUSHING, OUTPUT, 3RD AND 4TH
-
92028A92028-1802 BUSHING, INPUT, TOP GEARBUSHING, INPUT, TOP GEAR
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-1249 RING, SNAP, T=1.5RING, SNAP, T=1.5
-
9204592045-1413 BEARING, BALLBEARING, BALL
-
9204692046-031 BEARING, NEEDLE, FWF, 223014BEARING, NEEDLE, FWF, 223014
-
9204892048-1052 RACE, INPUT SHAFTRACE, INPUT SHAFT
-
92048A92048-1053 RACE, 30X38X15RACE, 30X38X15
-
9214392143-1649 COLLAR, SPROCKETCOLLAR, SPROCKET
-
9220092200-1234 WASHER, TOOTHED, 23.9X45X1.0WASHER, TOOTHED, 23.9X45X1.0
-
92200A92200-1277 WASHER, TOOTHED, 28X30X2WASHER, TOOTHED, 28X30X2
-
92200B92200-1278 WASHER, 29.9X40X1.5WASHER, 29.9X40X1.5
-
92200C92200-1340 WASHERWASHER
