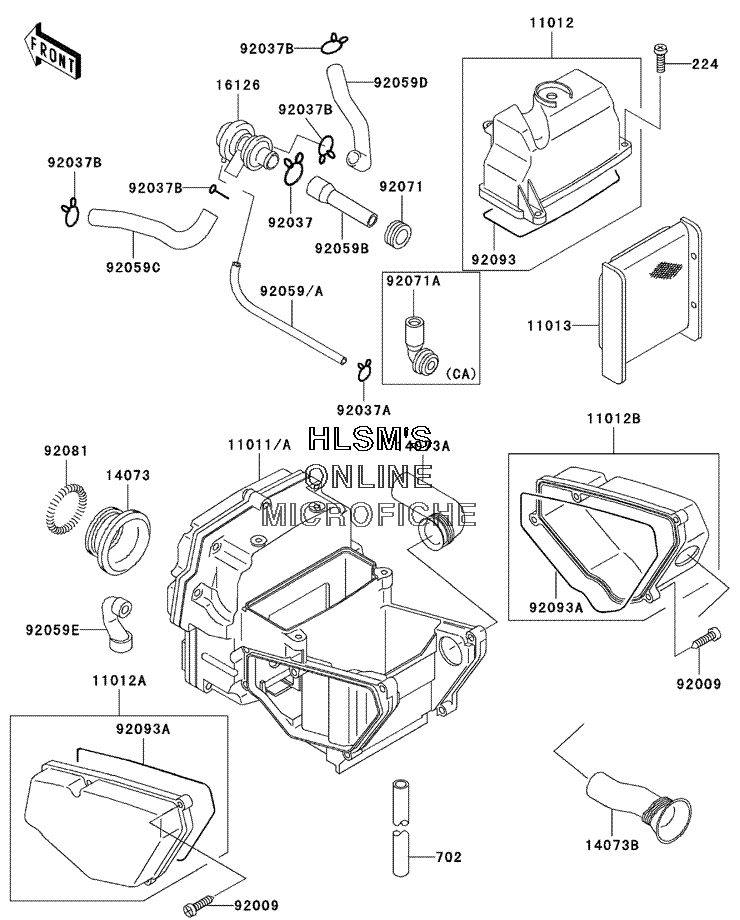

AIR CLEANER для Kawasaki NINJA 500R - 2005 года выпуска
-
№АртикулНазвание
-
224224B0620 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
702702A05350 TUBE, RUBBER, 5X350TUBE, RUBBER, 5X350
-
1101111011-1269 CASE, AIR FILTER (CALIF. ONLY)CASE, AIR FILTER (CALIF. ONLY)
-
11011A11011-1649 CASE, AIR FILTER (EXCEPT CALIF.)CASE, AIR FILTER (EXCEPT CALIF.)
-
1101211012-1571 CAP, AIR FILTER CASE, UPPERCAP, AIR FILTER CASE, UPPER
-
11012A11012-1608 CAP, AIR FILTER (LEFT)CAP, AIR FILTER (LEFT)
-
11012B11012-1609 CAP, AIR FILTER (RIGHT)CAP, AIR FILTER (RIGHT)
-
1101311013-1252 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1407314073-1292 DUCT, CARBURATORDUCT, CARBURATOR
-
14073A14073-1293 DUCT, INTAKEDUCT, INTAKE
-
14073B14073-1295 DUCTDUCT
-
1612616126-1283 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
9200992009-1488 SCREW, TAPPING, 5X30SCREW, TAPPING, 5X30
-
9203792037-1076 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1712 CLAMPCLAMP
-
92037B92037-213 CLAMP, TUBECLAMP, TUBE
-
9205992059-1043 TUBE, 4X9X290 (EXCEPT CALIF.)TUBE, 4X9X290 (EXCEPT CALIF.)
-
92059A92059-1131 TUBE, 4X9X110 (CALIF. ONLY)TUBE, 4X9X110 (CALIF. ONLY)
-
92059B92059-1770 TUBE, AIR FILTER, ACVTUBE, AIR FILTER, ACV
-
92059C92059-1771 TUBE, AIR SWITCH (LEFT)TUBE, AIR SWITCH (LEFT)
-
92059D92059-1772 TUBE, AIR SWITCH (RIGHT)TUBE, AIR SWITCH (RIGHT)
-
92059E92059-1773 TUBE, BREATHERTUBE, BREATHER
-
9207192071-1028 GROMMET, AIR FILTERGROMMET, AIR FILTER
-
92071A92071-1114 GROMMET, AIR FILTER (CALIF. ONLY)GROMMET, AIR FILTER (CALIF. ONLY)
-
9208192081-1457 SPRING, COIL (BLACK)SPRING, COIL (BLACK)
-
9209392093-1233 SEAL, AIR FILTER CAPSEAL, AIR FILTER CAP
-
92093A92093-1234 SEAL, AIR FILTERSEAL, AIR FILTER
