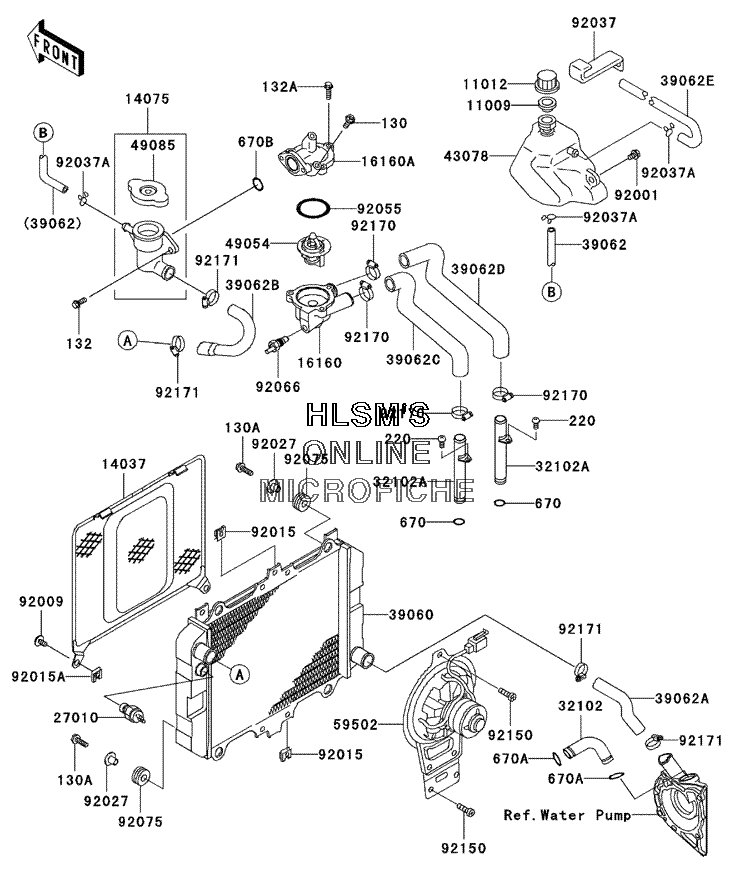

RADIATOR для Kawasaki NINJA 500R - 2005 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1403714037-1143 SCREENSCREEN
-
1407514075-1085 CAP, ASSY, RADIATORCAP, ASSY, RADIATOR
-
1616016160-1138 BODY, THERMOSTAT, LOWERBODY, THERMOSTAT, LOWER
-
16160A16160-1170 BODY, THERMOSTAT, UPPERBODY, THERMOSTAT, UPPER
-
2701027010-1304 SWITCH, THERMOSTATSWITCH, THERMOSTAT
-
3210232102-1405 PIPE, PUMP, CYLINDERPIPE, PUMP, CYLINDER
-
32102A32102-1473 PIPEPIPE
-
3906039060-1084 RADIATORRADIATOR
-
3906239062-1195 HOSE, COOLING, L=447HOSE, COOLING, L=447
-
39062A39062-1222 HOSE, COOLING, RADIATOR, PUMPHOSE, COOLING, RADIATOR, PUMP
-
39062B39062-1223 HOSE, COOLING, CAP, RADIATORHOSE, COOLING, CAP, RADIATOR
-
39062C39062-1224 HOSE, COOLING, THERMO, HEAD (LEFT)HOSE, COOLING, THERMO, HEAD (LEFT)
-
39062D39062-1225 HOSE, COOLING, THERMO, HEAD (RIGHT)HOSE, COOLING, THERMO, HEAD (RIGHT)
-
39062E39062-1257 HOSE, COOLINGHOSE, COOLING
-
4307843078-1084 RESERVOIRRESERVOIR
-
4905449054-1059 THERMOSTATTHERMOSTAT
-
4908549085-1066 CAP, ASSY, PRESSURECAP, ASSY, PRESSURE
-
5950259502-1070 FAN, ASSYFAN, ASSY
-
9200192001-1516 BOLT, W/WASHER, 6X12BOLT, W/WASHER, 6X12
-
9200992009-1480 SCREW, 6X12SCREW, 6X12
-
9201592015-1487 NUTNUT
-
92015A92015-1758 NUT, 6MMNUT, 6MM
-
9202792027-1651 COLLAR, FLANGED, L=12.1 (BLACK)COLLAR, FLANGED, L=12.1 (BLACK)
-
9203792037-1316 CLAMP, HARNESSCLAMP, HARNESS
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-1279 O-RING, 44.7X2.4O-RING, 44.7X2.4
-
9206692066-1118 PLUG, SENSOR, WATERPLUG, SENSOR, WATER
-
9207592075-277 DAMPERDAMPER
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9217092170-1077 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9217192171-0261 CLAMPCLAMP
-
130130B0614 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0620 BOLT, FLANGEDBOLT, FLANGED
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
670670B2014 O-RING, 14MMO-RING, 14MM
-
670A670B2018 O-RING, 18MMO-RING, 18MM
-
670B670B2020 O-RING, 20MMO-RING, 20MM
