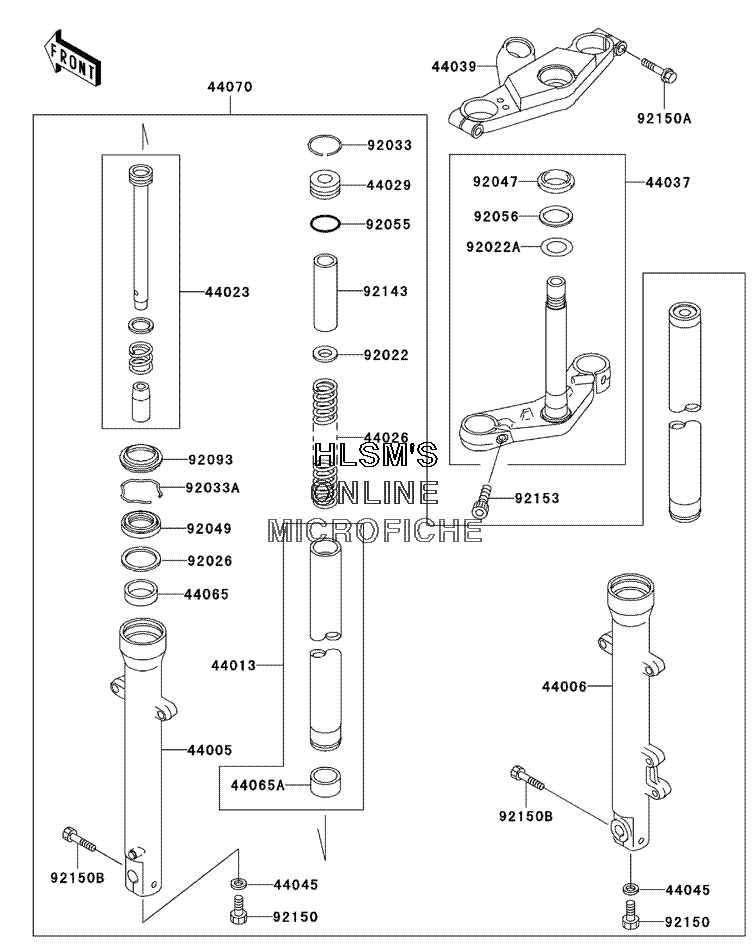

FRONT FORK для Kawasaki NINJA 500R - 2005 года выпуска
-
№АртикулНазвание
-
4400544005-1330 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1330 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1394 PIPE, FORK INNERPIPE, FORK INNER
-
4402344023-1092 CYLINDER, COMP, FORKCYLINDER, COMP, FORK
-
4402644026-1555 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1127 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403744037-1319 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1246-10 HOLDER, FORK UPPER (BLACK)HOLDER, FORK UPPER (BLACK)
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4406544065-1109 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1110 BUSHING, FRONT FORK, INNER PIPEBUSHING, FRONT FORK, INNER PIPE
-
4407044070-5174 DAMPER, ASSY, FORKDAMPER, ASSY, FORK
-
9202292022-1879 WASHERWASHER
-
92022A92022-231 WASHER, 30.5X50X0.6WASHER, 30.5X50X0.6
-
9202692026-1443 SPACER, FORKSPACER, FORK
-
9203392033-1236 RING, SNAPRING, SNAP
-
92033A92033-1286 RING, SNAPRING, SNAP
-
9204792047-012 RACE, STEERING STEM BEARINGRACE, STEERING STEM BEARING
-
9204992049-1421 SEAL, OIL, FORK OUTERSEAL, OIL, FORK OUTER
-
9205592055-1384 O-RING, FORK SPRING SEATO-RING, FORK SPRING SEAT
-
9205692056-003 SEAL, OIL, STEERING STEMSEAL, OIL, STEERING STEM
-
9209392093-1367 SEAL, FORK OUTERSEAL, FORK OUTER
-
9214392143-1682 COLLAR, FORK, L=100COLLAR, FORK, L=100
-
9215092150-1432 BOLT, SOCKET, 8X18BOLT, SOCKET, 8X18
-
92150A92150-1610 BOLTBOLT
-
92150B92150-1613 BOLT, SOCKET, 8MMBOLT, SOCKET, 8MM
-
9215392153-0301 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
