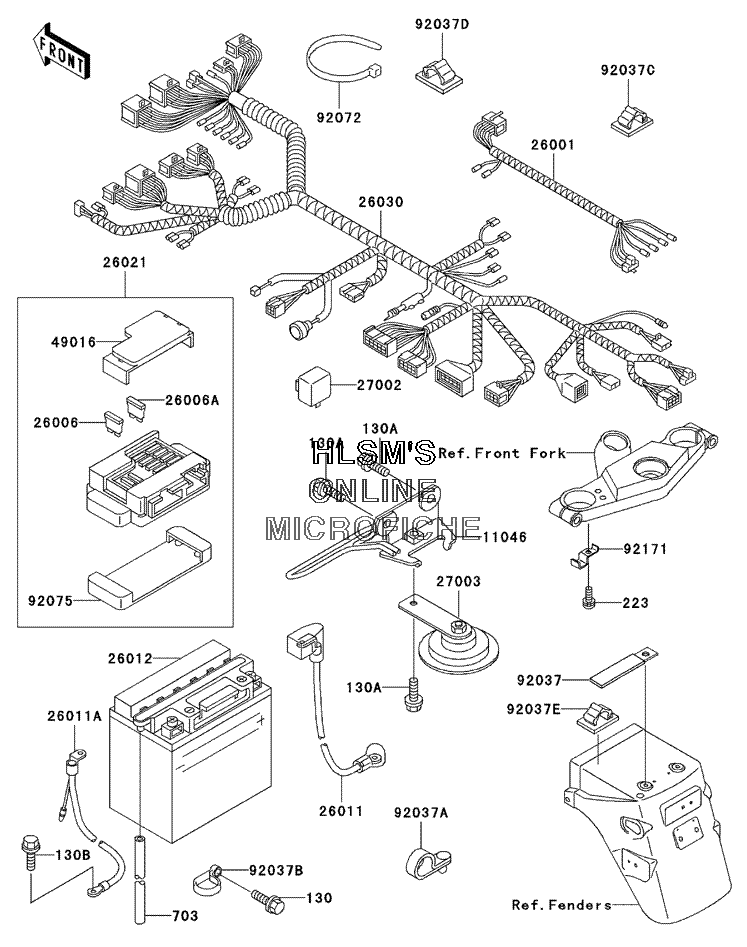

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 500R - 2005 года выпуска
-
№АртикулНазвание
-
130130B0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
130A130J0612 BOLT, FLANGEDBOLT, FLANGED
-
130B130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
223223C0610 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
703703A08530 TUBE, RUBBER, 8X12X530TUBE, RUBBER, 8X12X530
-
1104611046-1233 BRACKET, HORN AND CABLEBRACKET, HORN AND CABLE
-
2600126001-1859 HARNESS, FRONT SIGNAL LAMPHARNESS, FRONT SIGNAL LAMP
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1388 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1389 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1349 BATTERY, FB14L, A2, 12V 14AHBATTERY, FB14L, A2, 12V 14AH
-
2602126021-1089 JUNCTION BOXJUNCTION BOX
-
2603026030-1733 HARNESS, MAINHARNESS, MAIN
-
2700227002-1101 RELAY, ASSY, TURN SIGNALRELAY, ASSY, TURN SIGNAL
-
2700327003-1288 HORNHORN
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037B92037-1727 CLAMP, HOSECLAMP, HOSE
-
92037C92037-1793 CLAMP, HARNESSCLAMP, HARNESS
-
92037D92037-1794 CLAMP, TUBECLAMP, TUBE
-
92037E92037-1816 CLAMP, HARNESSCLAMP, HARNESS
-
9207292072-1195 BAND, L=202BAND, L=202
-
9207592075-1688 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9217192171-1199 CLAMP, HARNESSCLAMP, HARNESS
