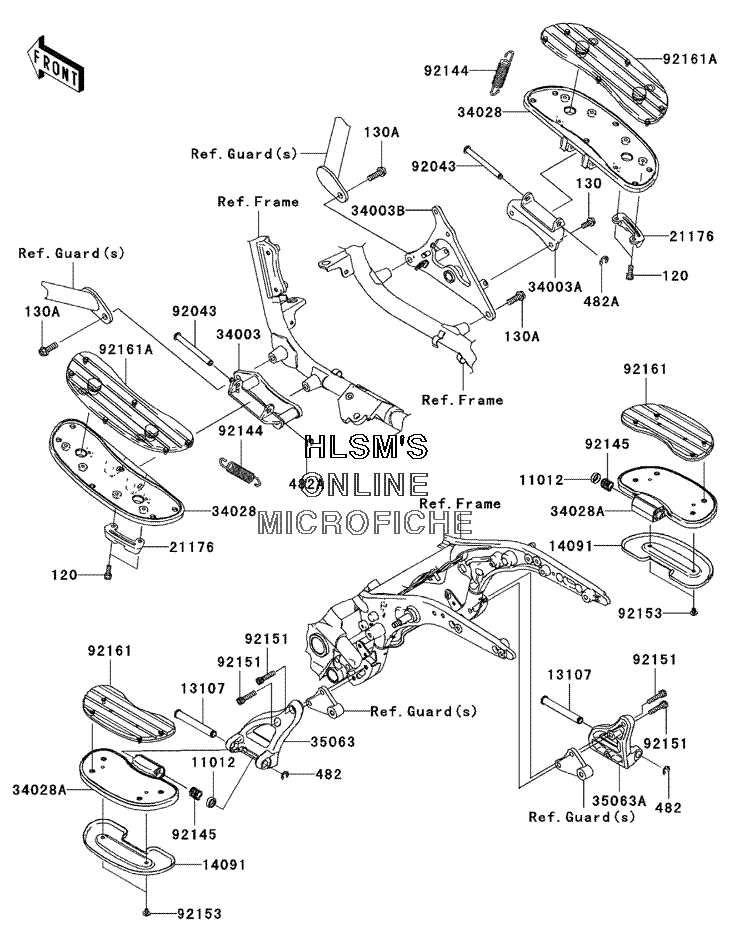

FOOTRESTS для Kawasaki Vulcan 1600 Nomad - 2005 года выпуска
-
№АртикулНазвание
-
120120S0616 BOLT, SOCKETBOLT, SOCKET
-
130130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
130A130J1030 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
482482L0200 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
482A482L8000 CIRCLIP, TYPE, E, 8MMCIRCLIP, TYPE, E, 8MM
-
1101211012-1498 CAPCAP
-
1310713107-0087 SHAFT, REAR STEPSHAFT, REAR STEP
-
1409114091-0229 COVER, REAR STEPCOVER, REAR STEP
-
2117621176-0021 SENSOR, BANKSENSOR, BANK
-
3400334003-0012 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-0013 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
34003B34003-0014 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
3402834028-0011 STEP, FRONTSTEP, FRONT
-
34028A34028-0028 STEP, REARSTEP, REAR
-
3506335063-0149 STAY, REAR STEP (LEFT)STAY, REAR STEP (LEFT)
-
35063A35063-0150 STAY, REAR STEP (RIGHT)STAY, REAR STEP (RIGHT)
-
9204392043-1707 PIN, 10X98.5PIN, 10X98.5
-
9214492144-1266 SPRINGSPRING
-
9214592145-1130 SPRING, REAR STEPSPRING, REAR STEP
-
9215192151-1535 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
-
9215392153-1096 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9216192161-0145 DAMPER, REAR STEPDAMPER, REAR STEP
-
92161A92161-1325 DAMPER, FRONT STEPDAMPER, FRONT STEP
