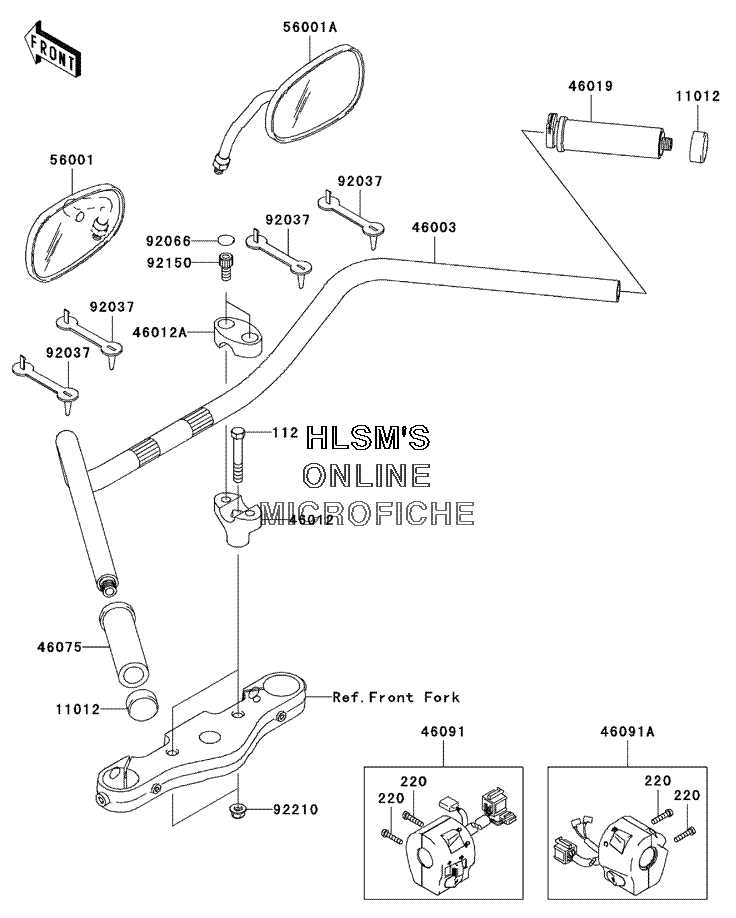

HANDLEBAR для Kawasaki Vulcan 1600 Nomad - 2005 года выпуска
-
№АртикулНазвание
-
112112H1065 BOLT, UPSET, 10X65BOLT, UPSET, 10X65
-
220220R0525 SCREW, PAN, CROSS, 5X25SCREW, PAN, CROSS, 5X25
-
1101211012-1975 CAP, GRIP ENDCAP, GRIP END
-
4600346003-0074 HANDLEHANDLE
-
4601246012-1272 HOLDER, HANDLE, LOWERHOLDER, HANDLE, LOWER
-
46012A46012-1273 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-1109 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
4607546075-1074 GRIP (LEFT)GRIP (LEFT)
-
4609146091-0018 HOUSING, ASSY., CONTROL (LEFT)HOUSING, ASSY., CONTROL (LEFT)
-
46091A46091-0019 HOUSING, ASSY., CONTROL (RIGHT)HOUSING, ASSY., CONTROL (RIGHT)
-
5600156001-1592 MIRROR, ASSY. (LEFT)MIRROR, ASSY. (LEFT)
-
56001A56001-1593 MIRROR, ASSY. (RIGHT)MIRROR, ASSY. (RIGHT)
-
9203792037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9206692066-1285 PLUGPLUG
-
9215092150-1942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
