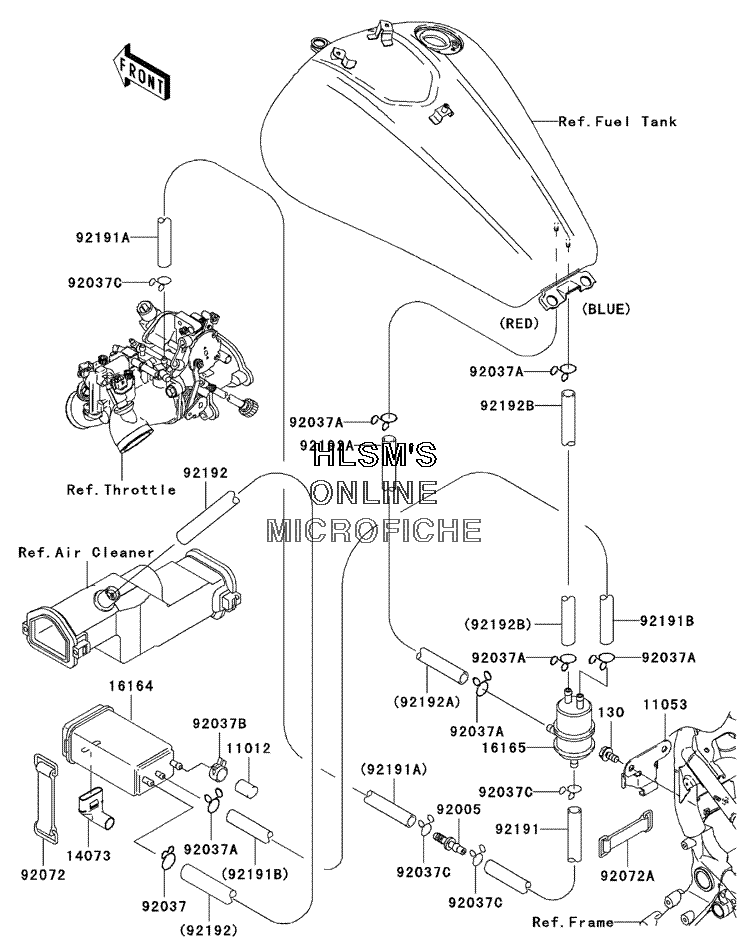

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 1600 Nomad - 2005 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGED (CALIF. ONLY)BOLT, FLANGED (CALIF. ONLY)
-
1101211012-1388 CAP, CANISTER (CALIF. ONLY)CAP, CANISTER (CALIF. ONLY)
-
1105311053-0006 BRACKET, EVAPO (CALIF. ONLY)BRACKET, EVAPO (CALIF. ONLY)
-
1407314073-1219 DUCT, CANISTER (CALIF. ONLY)DUCT, CANISTER (CALIF. ONLY)
-
1616416164-1070 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
9200592005-1206 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-1104 CLAMP, HOSE (CALIF. ONLY)CLAMP, HOSE (CALIF. ONLY)
-
92037A92037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037B92037-1512 CLAMP, CANISTER (CALIF. ONLY)CLAMP, CANISTER (CALIF. ONLY)
-
92037C92037-1712 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9207292072-045 BAND, L=90 (CALIF. ONLY)BAND, L=90 (CALIF. ONLY)
-
92072A92072-1419 BAND, L=50 (CALIF. ONLY)BAND, L=50 (CALIF. ONLY)
-
9219192191-1375 TUBE, THROTTLE, SEPARATOR (WHITE) (CALIF. ONLY)TUBE, THROTTLE, SEPARATOR (WHITE) (CALIF. ONLY)
-
92191A92191-1414 TUBE, 4X9X180 (WHITE) (CALIF. ONLY)TUBE, 4X9X180 (WHITE) (CALIF. ONLY)
-
92191B92191-1677 TUBE, SEPARATOR, CANISTER (BLUE) (CALIF. ONLY)TUBE, SEPARATOR, CANISTER (BLUE) (CALIF. ONLY)
-
9219292192-0027 TUBE, CANISTER, FILTER (GREEN) (CALIF. ONLY)TUBE, CANISTER, FILTER (GREEN) (CALIF. ONLY)
-
92192A92192-0214 TUBE, TANK, SEPARATOR (RED) (CALIF. ONLY)TUBE, TANK, SEPARATOR (RED) (CALIF. ONLY)
-
92192B92192-0215 TUBE, TANK, SEPARATOR (BLUE) (CALIF. ONLY)TUBE, TANK, SEPARATOR (BLUE) (CALIF. ONLY)
