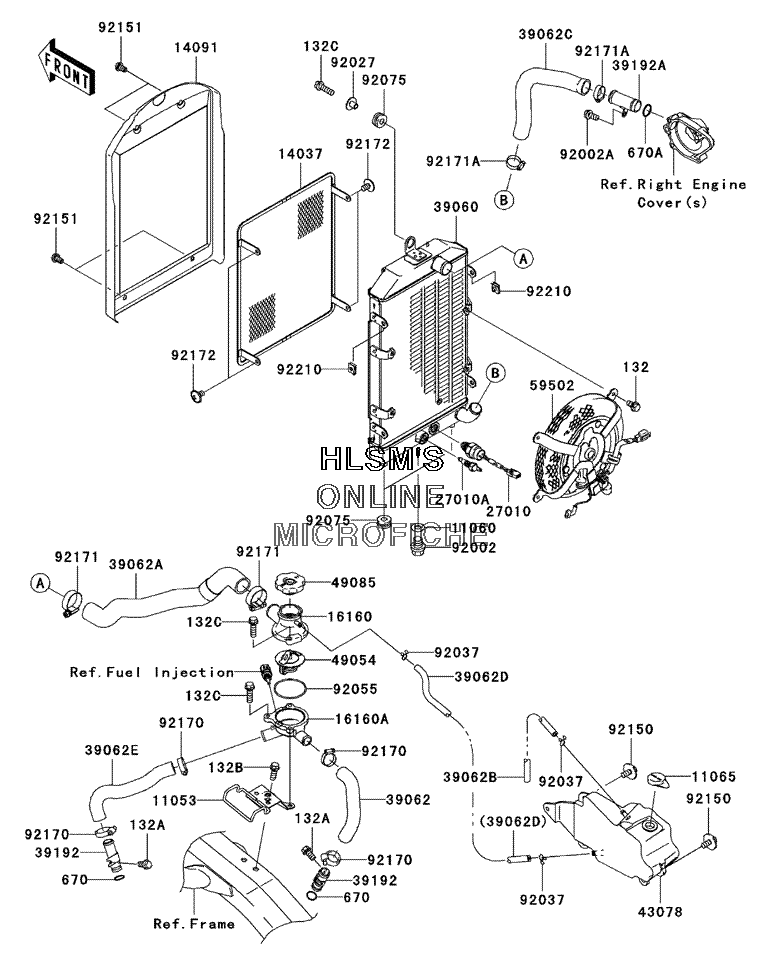

RADIATOR для Kawasaki Vulcan 1600 Nomad - 2005 года выпуска
-
№АртикулНазвание
-
132132J0610 BOLT, FLANGED, SMALL, 6X10BOLT, FLANGED, SMALL, 6X10
-
132A132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132C132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670B2014 O-RING, 14MMO-RING, 14MM
-
1105311053-0009 BRACKET, THERMOSTAT CASEBRACKET, THERMOSTAT CASE
-
1106011060-1767 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1106511065-1093 CAP, COOLANTCAP, COOLANT
-
1403714037-0014 SCREEN, INNERSCREEN, INNER
-
1409114091-0414 COVERCOVER
-
1616016160-1152 BODY, UPPERBODY, UPPER
-
16160A16160-1361 BODY, LOWERBODY, LOWER
-
2701027010-0024 SWITCH, FANSWITCH, FAN
-
27010A27010-1305 SWITCH, WARNINGSWITCH, WARNING
-
3906039060-0019 RADIATORRADIATOR
-
3906239062-0018 HOSE, COOLING, REAR HEAD, THERMOHOSE, COOLING, REAR HEAD, THERMO
-
39062A39062-0019 HOSE, COOLING, RADIATOR, THERMOHOSE, COOLING, RADIATOR, THERMO
-
39062B39062-1258 HOSE, COOLINGHOSE, COOLING
-
39062C39062-1850 HOSE, COOLING, RADIATOR, PUMPHOSE, COOLING, RADIATOR, PUMP
-
39062D39062-1934 HOSE, COOLING, THERMO, RESERVOIRHOSE, COOLING, THERMO, RESERVOIR
-
39062E39062-1935 HOSE, COOLING, FRONT HEAD, THERMOHOSE, COOLING, FRONT HEAD, THERMO
-
3919239192-1094 PIPE, WATERPIPE, WATER
-
39192A39192-1096 PIPE, WATERPIPE, WATER
-
4307843078-1180 RESERVOIRRESERVOIR
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4908549085-1067 CAP, ASSY., PRESSURECAP, ASSY., PRESSURE
-
5950259502-0013 FAN, ASSY.FAN, ASSY.
-
9200292002-1311 BOLT, FLANGED, 10X10BOLT, FLANGED, 10X10
-
92002A92002-1569 BOLT, 6X12BOLT, 6X12
-
9202792027-1450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
9207592075-1690 DAMPERDAMPER
-
9215092150-1392 BOLT, 6X14BOLT, 6X14
-
9215192151-1809 BOLT, 6X10BOLT, 6X10
-
9217092170-1032 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9217192171-0179 CLAMPCLAMP
-
92171A92171-0261 CLAMPCLAMP
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
-
9221092210-1125 NUTNUT
-
670A670B2018 O-RING, 18MMO-RING, 18MM
