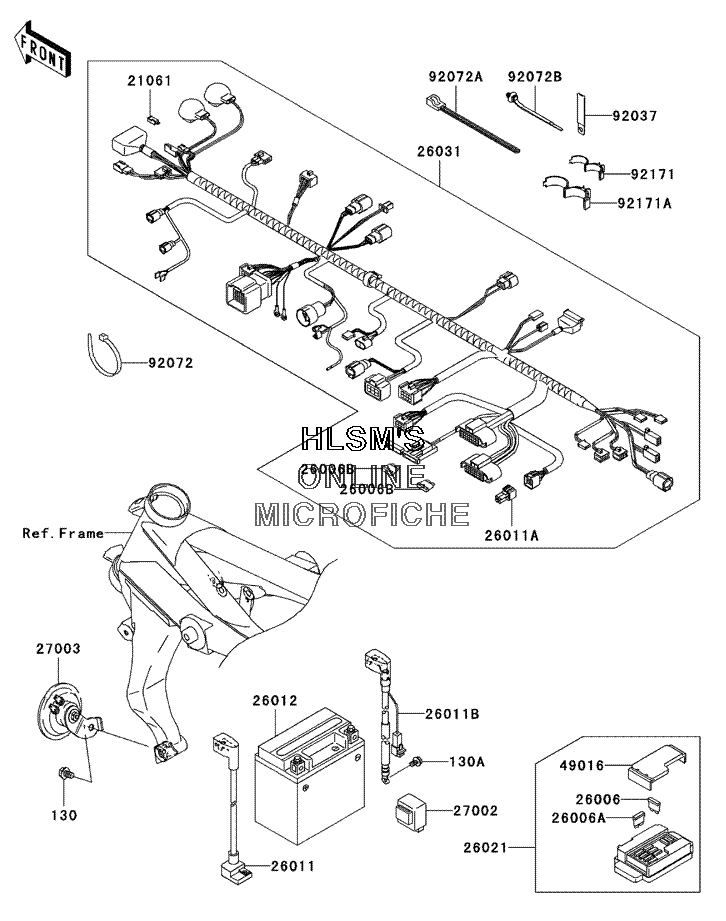

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Z1000 - 2005 года выпуска
-
№АртикулНазвание
-
130130L0812 BOLT, FLANGEDBOLT, FLANGED
-
130A130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
2106121061-0001 RECTIFIERRECTIFIER
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
26006B26006-1075 FUSE, 15AFUSE, 15A
-
2601126011-0006 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-0037 WIRE, LEADWIRE, LEAD
-
26011B26011-0041 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1326 BATTERY, YTX9, BS, 12V 8AHBATTERY, YTX9, BS, 12V 8AH
-
2602126021-0001 JUNCTION BOXJUNCTION BOX
-
2603126031-0257 HARNESS, MAINHARNESS, MAIN
-
2700227002-1101 RELAY, ASSY., TURN SIGNALRELAY, ASSY., TURN SIGNAL
-
2700327003-0015 HORNHORN
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
9207292072-1195 BAND, L=202BAND, L=202
-
92072A92072-1237 BAND, L=250BAND, L=250
-
92072B92072-1414 BANDBAND
-
9217192171-1424 CLAMP, DIA=15CLAMP, DIA=15
-
92171A92171-1559 CLAMP, DIA=25CLAMP, DIA=25
