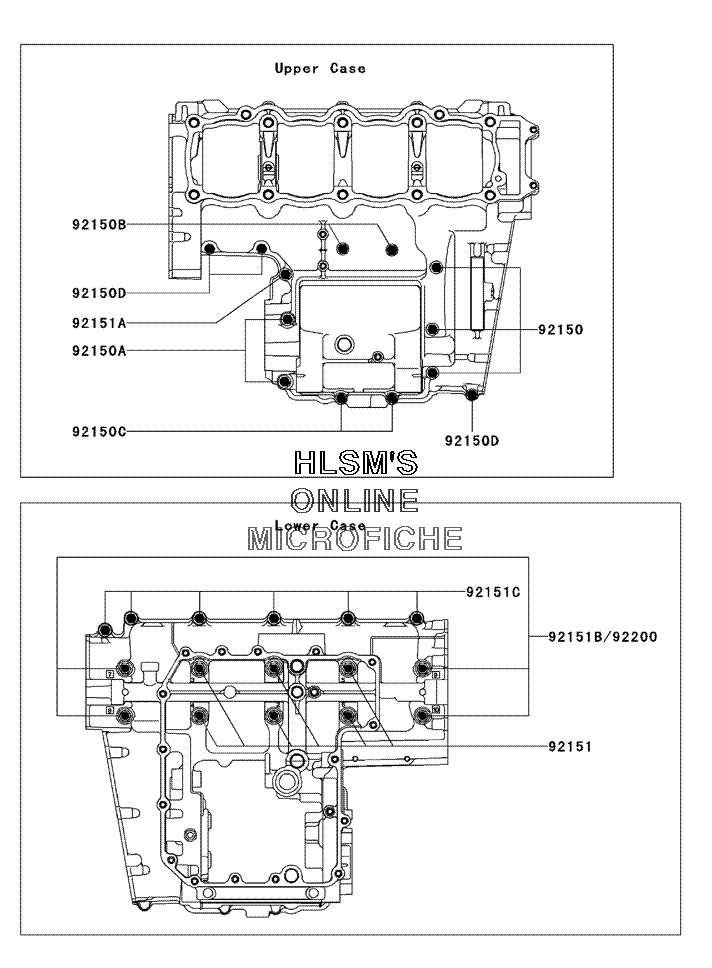

CRANKCASE BOLT PATTERN для Kawasaki Z1000 - 2005 года выпуска
-
№АртикулНазвание
-
9215092150-1251 BOLT, 7X85BOLT, 7X85
-
92150A92150-1483 BOLT, 8X70BOLT, 8X70
-
92150B92150-1548 BOLT, 6X60BOLT, 6X60
-
92150C92150-1622 BOLT, 6X90BOLT, 6X90
-
92150D92150-1794 BOLT, 6X40BOLT, 6X40
-
9215192151-1222 BOLT, 9X81BOLT, 9X81
-
92151A92151-1223 BOLT, 7X50BOLT, 7X50
-
92151B92151-1378 BOLT, 9X95BOLT, 9X95
-
92151C92151-1539 BOLT, 7X45BOLT, 7X45
-
9220092200-1426 WASHERWASHER
