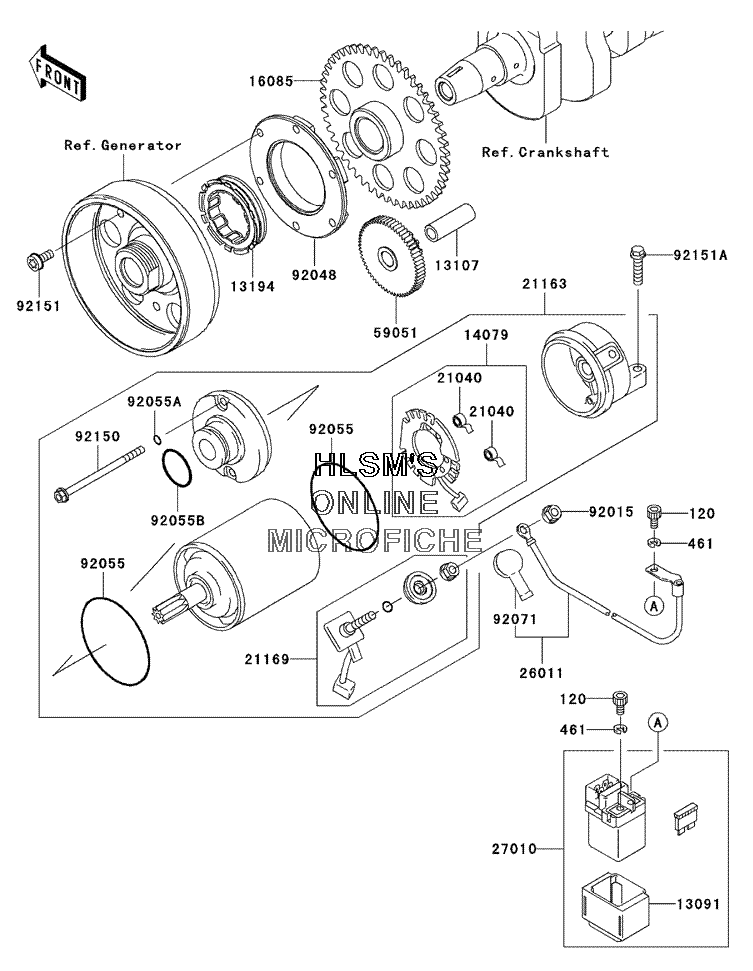

STARTER MOTOR для Kawasaki Z1000 - 2005 года выпуска
-
№АртикулНазвание
-
120120S0510 BOLT, SOCKETBOLT, SOCKET
-
461461K0500 WASHER, SPRING, 5MM (BLACK)WASHER, SPRING, 5MM (BLACK)
-
1309113091-1992 HOLDERHOLDER
-
1310713107-1377 SHAFT, IDLER GEARSHAFT, IDLER GEAR
-
1319413194-1096 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
1407914079-0009 HOLDER, ASSY., STARTERHOLDER, ASSY., STARTER
-
1608516085-1303 GEAR, CLUTCH ONEWAYGEAR, CLUTCH ONEWAY
-
2104021040-0001 SPRING, BRUSHSPRING, BRUSH
-
2116321163-0024 STARTER, ELECTRICSTARTER, ELECTRIC
-
2116921169-1058 TERMINAL, STARTERTERMINAL, STARTER
-
2601126011-0015 WIRE, LEAD, STARTERWIRE, LEAD, STARTER
-
2701027010-1376 SWITCH, MAGNETICSWITCH, MAGNETIC
-
5905159051-0037 GEAR, SPUR, IDLERGEAR, SPUR, IDLER
-
9201592015-1623 NUTNUT
-
9204892048-1114 RACE, CLUTCH ONEWAYRACE, CLUTCH ONEWAY
-
9205592055-1260 O-RING, 62MMO-RING, 62MM
-
92055A92055-1261 O-RING, 4.5MMO-RING, 4.5MM
-
92055B92055-1262 O-RING, 24.4MMO-RING, 24.4MM
-
9207192071-1120 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
9215092150-1237 BOLTBOLT
-
9215192151-1335 BOLT, 6X14BOLT, 6X14
-
92151A92151-1930 BOLT, 6X25BOLT, 6X25
