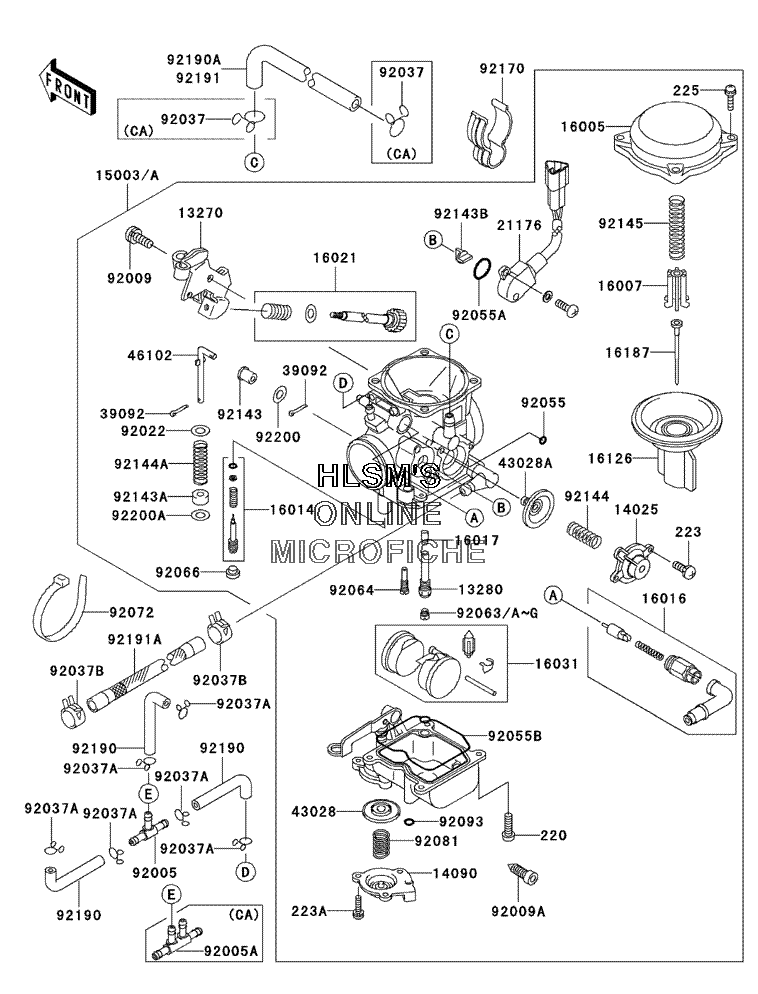

CARBURETOR для Kawasaki Vulcan 800 Drifter - 2006 года выпуска

№

Артикул

Название
13270

13270-1513 PLATE

PLATE

5 970 ₽
13280

13280-1140 HOLDER, NEEDLE JET

HOLDER, NEEDLE JET

4 900 ₽
14025

14025-1903 COVER, AIR CUT VALVE

COVER, AIR CUT VALVE

8 830 ₽
14090

14090-1635 COVER, ACCELERATOR

COVER, ACCELERATOR

8 530 ₽
15003

15003-1452 CARBURETOR, ASSY (US ONLY)

CARBURETOR, ASSY (US ONLY)

130 ₽
15003A

15003-1559 CARBURETOR, ASSY (CALIF. ONLY)

CARBURETOR, ASSY (CALIF. ONLY)

130 ₽
16005

16005-1057 TOP, CHAMBER, MIXING, 27/60

TOP, CHAMBER, MIXING, 27/60

6 430 ₽
16007

16007-1117 SEAT, SPRING, VALVE

SEAT, SPRING, VALVE

3 960 ₽
16014

16014-1081 SCREW, PILOT AIR

SCREW, PILOT AIR

3 700 ₽
16016

16016-1100 PLUNGER, STARTER

PLUNGER, STARTER

6 470 ₽
16017

16017-1405 JET, NEEDLE, #6

JET, NEEDLE, #6

7 300 ₽
16021

16021-1207 SCREW, THROTTLE STOP

SCREW, THROTTLE STOP

17 870 ₽
16031

16031-1102 FLOAT

FLOAT

9 940 ₽
16126

16126-1170 VALVE, VACUUM

VALVE, VACUUM

30 440 ₽
16187

16187-1114 NEEDLE, JET, N8GT

NEEDLE, JET, N8GT

6 010 ₽
21176

21176-1096 SENSOR

SENSOR

38 670 ₽
39092

39092-1058 PIN, HAIR

PIN, HAIR

450 ₽
43028

43028-0002 DIAPHRAGM

DIAPHRAGM

13 250 ₽
43028A

43028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVE

DIAPHRAGM, 5.9MM, AIR CUT VALVE

13 060 ₽
46102

46102-1385 ROD

ROD

2 150 ₽
92005

92005-1017 FITTING, TUBE, T, TYPE (US ONLY)

FITTING, TUBE, T, TYPE (US ONLY)

1 540 ₽
92005A

92005-1307 FITTING (CALIF. ONLY)

FITTING (CALIF. ONLY)

1 260 ₽
92009

92009-1365 SCREW, 5X10

SCREW, 5X10

1 120 ₽
92009A

92009-1551 SCREW, DRAIN, 6X0.75

SCREW, DRAIN, 6X0.75

1 540 ₽
92022

92022-1480 WASHER, PLAIN, STOP SPRING

WASHER, PLAIN, STOP SPRING

780 ₽
92037

92037-1104 CLAMP, HOSE (CALIF. ONLY)

CLAMP, HOSE (CALIF. ONLY)

250 ₽
92037A

92037-1610 CLAMP

CLAMP

350 ₽
92037B

92037-2082 CLAMP

CLAMP

250 ₽
92055

92055-1245 O-RING

O-RING

860 ₽
92055A

92055-1574 O-RING, SENSOR

O-RING, SENSOR

640 ₽
92055B

92055-1615 O-RING, FLOAT CHAMBER

O-RING, FLOAT CHAMBER

4 060 ₽
92063

92063-1013 JET, MAIN, #140 (OPTION)

JET, MAIN, #140 (OPTION)

2 240 ₽
92063A

92063-1014 JET, MAIN, #135 (US ONLY)

JET, MAIN, #135 (US ONLY)

2 240 ₽
92063B

92063-1014 JET, MAIN, #135 (CALIF. ONLY) (OPTION)

JET, MAIN, #135 (CALIF. ONLY) (OPTION)

2 240 ₽
220

220D0414 SCREW, PAN, CROS, 4X14

SCREW, PAN, CROS, 4X14

520 ₽
223

223C0408 SCREW, PAN, WS, CROS, 4X8

SCREW, PAN, WS, CROS, 4X8

190 ₽
223A

223D0410 SCREW, PAN, WS, CROS, 4X10

SCREW, PAN, WS, CROS, 4X10

110 ₽
225

225C0418 SCREW, PAN, WSP, CROS, 4X18

SCREW, PAN, WSP, CROS, 4X18

750 ₽
92063C

92063-1015 JET, MAIN, #138 (CALIF. ONLY)

JET, MAIN, #138 (CALIF. ONLY)

2 240 ₽
92063D

92063-1015 JET, MAIN, #138 (US ONLY) (OPT)

JET, MAIN, #138 (US ONLY) (OPT)

2 240 ₽
92063E

92063-1016 JET, MAIN, #142 (CALIF. ONLY) (OPT)

JET, MAIN, #142 (CALIF. ONLY) (OPT)

2 240 ₽
92063F

92063-1075 JET, MAIN, #130 (US ONLY) (OPT)

JET, MAIN, #130 (US ONLY) (OPT)

2 240 ₽
92063G

92063-1076 JET, MAIN, #132 (OPT)

JET, MAIN, #132 (OPT)

2 240 ₽
92064

92064-1174 JET, PILOT

JET, PILOT

2 750 ₽
92066

92066-1051 PLUG, PILOT AIR SCREW, 6.9X2

PLUG, PILOT AIR SCREW, 6.9X2

780 ₽
92072

92072-1197 BAND, L=365

BAND, L=365

1 330 ₽
92081

92081-1092 SPRING, DIAPHRAGM

SPRING, DIAPHRAGM

1 830 ₽
92093

92093-1046 SEAL, "U"RING

SEAL, "U"RING

1 040 ₽
92143

92143-1790 COLLAR

COLLAR

530 ₽
92143A

92143-1791 COLLAR

COLLAR

1 250 ₽
92143B

92143-1907 COLLAR

COLLAR

1 400 ₽
92144

92144-1885 SPRING

SPRING

1 860 ₽
92144A

92144-1886 SPRING

SPRING

1 310 ₽
92145

92145-1064 SPRING, VACUUM VALVE

SPRING, VACUUM VALVE

4 280 ₽
92170

92170-1703 CLAMP, HOSE

CLAMP, HOSE

1 330 ₽
92190

92190-1610 TUBE, 4X9X80

TUBE, 4X9X80

680 ₽
92190A

92190-1619 TUBE, 7X12X540 (GREEN) (US ONLY)

TUBE, 7X12X540 (GREEN) (US ONLY)

3 830 ₽
92191

92191-1008 TUBE, 7X12X480 (YELLOW) (CALIF. ONLY)

TUBE, 7X12X480 (YELLOW) (CALIF. ONLY)

3 340 ₽
92191A

92191-1351 TUBE, FUEL

TUBE, FUEL

3 480 ₽
92200

92200-1274 WASHER

WASHER

450 ₽
92200A

92200-1275 WASHER

WASHER

450 ₽
