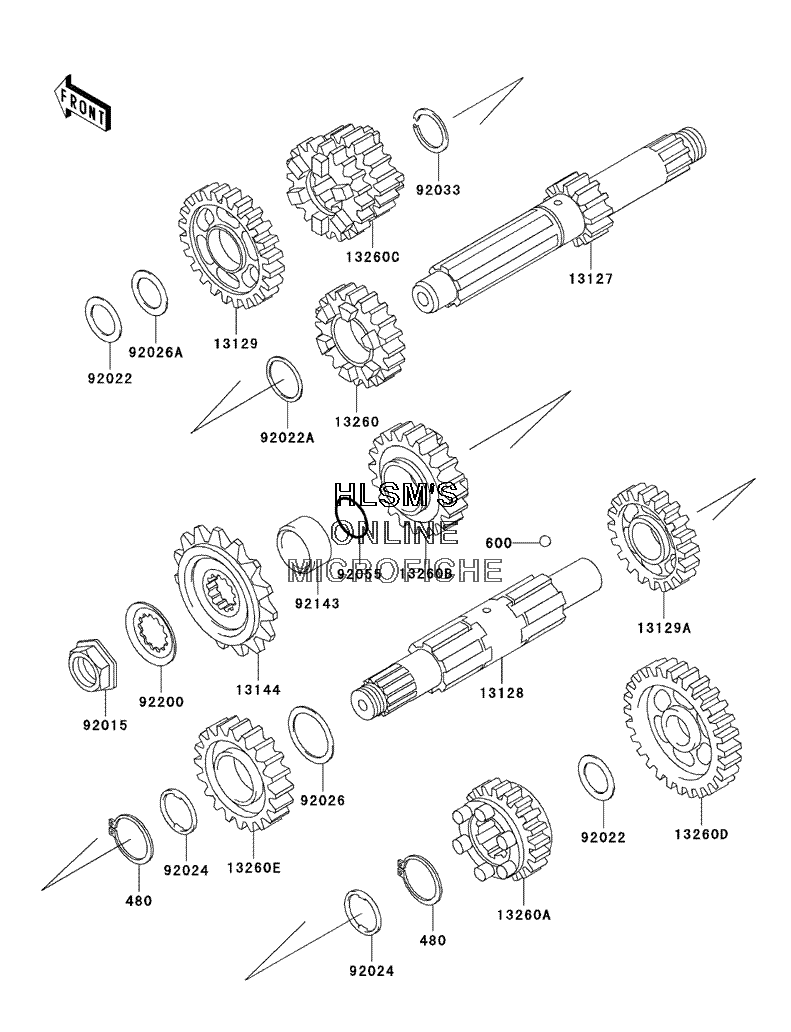

TRANSMISSION для Kawasaki Vulcan 800 Drifter - 2006 года выпуска
-
№АртикулНазвание
-
480480J3000 CIRCLIP, TYPE, C, 30MMCIRCLIP, TYPE, C, 30MM
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1241 SHAFT, TRANSMISSION INPUT (15 TEETH)SHAFT, TRANSMISSION INPUT (15 TEETH)
-
1312813128-1204 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1632 GEAR, INPUT 5TH (28 TEETH)GEAR, INPUT 5TH (28 TEETH)
-
13129A13129-1635 GEAR, OUTPUT 3RD (32 TEETH)GEAR, OUTPUT 3RD (32 TEETH)
-
1314413144-1304 SPROCKET, OUTPUT (17 TEETH)SPROCKET, OUTPUT (17 TEETH)
-
1326013260-1473 GEAR, INPUT 4TH (29 TEETH)GEAR, INPUT 4TH (29 TEETH)
-
13260A13260-1476 GEAR, OUTPUT 4TH (29 TEETH)GEAR, OUTPUT 4TH (29 TEETH)
-
13260B13260-1477 GEAR, OUTPUT 5TH (24 TEETH)GEAR, OUTPUT 5TH (24 TEETH)
-
13260C13260-1486 GEAR, INPUT 2ND AND 3RD (20/26 TEETH)GEAR, INPUT 2ND AND 3RD (20/26 TEETH)
-
13260D13260-1487 GEAR, OUTPUT LOW (38 TEETH)GEAR, OUTPUT LOW (38 TEETH)
-
13260E13260-1488 GEAR, OUTPUT 2ND (33 TEETH)GEAR, OUTPUT 2ND (33 TEETH)
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
92022A92022-161 WASHER, 25.3X30X1WASHER, 25.3X30X1
-
9202492024-069 WASHER, TOOTHED, 30.5X38X1WASHER, TOOTHED, 30.5X38X1
-
9202692026-079 SPACER, 30X38X1.0SPACER, 30X38X1.0
-
92026A92026-1535 SPACER, 20.5X30X0.5SPACER, 20.5X30X0.5
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
9205592055-035 O-RINGO-RING
-
9214392143-1735 COLLARCOLLAR
-
9220092200-1065 WASHERWASHER
