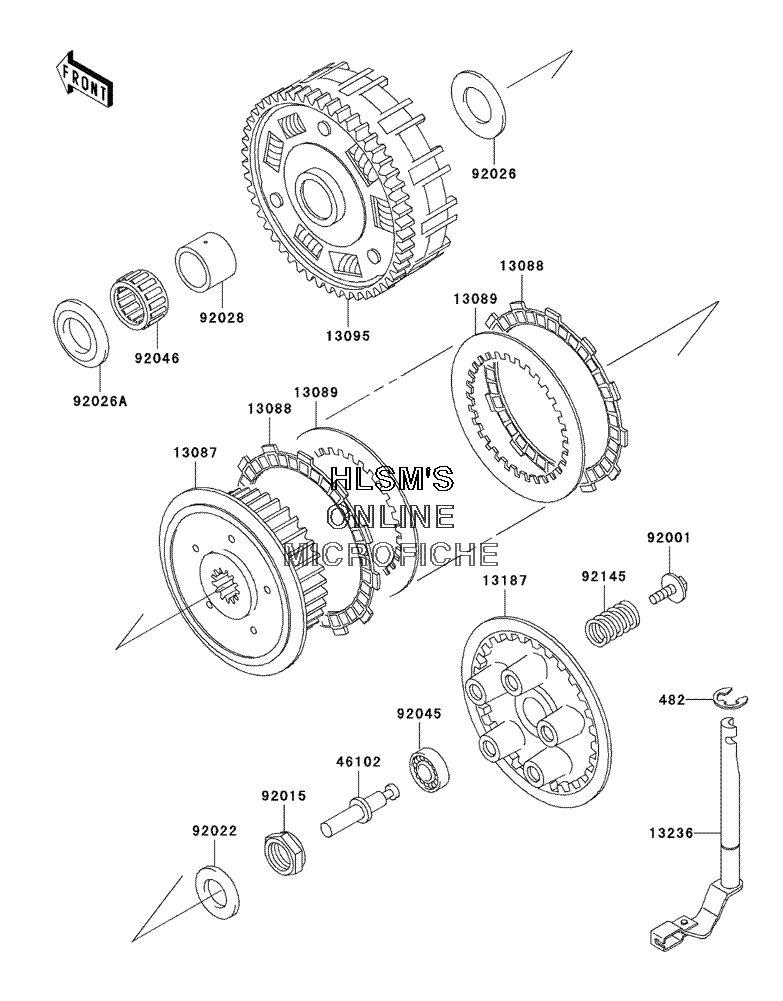

CLUTCH для Kawasaki Vulcan 800 Drifter - 2006 года выпуска
-
№АртикулНазвание
-
482482J0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
1308713087-042 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1133 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-027 PLATE, CLUTCHPLATE, CLUTCH
-
1309513095-1375 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1318713187-1006 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
1323613236-1269 LEVER, COMP, CLUTCH RELEASELEVER, COMP, CLUTCH RELEASE
-
4610246102-1374 ROD, PULLROD, PULL
-
9200192001-1066 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHERWASHER
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
92026A92026-116 SPACER, THRUST, T=5.5SPACER, THRUST, T=5.5
-
9202892028-178 BUSHING, 25X32X23.6BUSHING, 25X32X23.6
-
9204592045-1235 BEARING, BALL, 6001C3ML01BEARING, BALL, 6001C3ML01
-
9204692046-028 BEARING, NEEDLE, KTV323723BEARING, NEEDLE, KTV323723
-
9214592145-1264 SPRING, CLUTCHSPRING, CLUTCH
