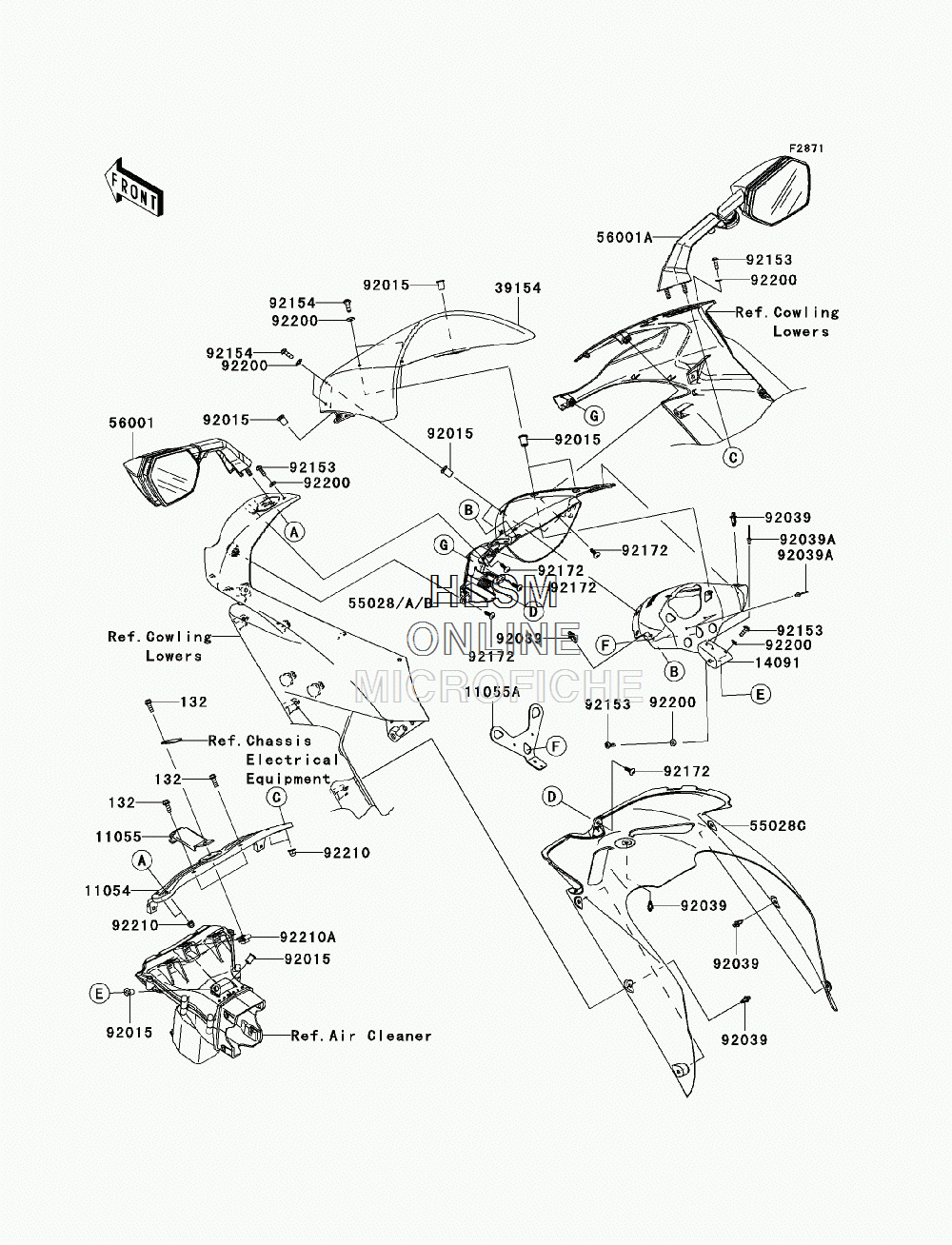

COWLING для Kawasaki NINJA ZX-10R (ZX1000E8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BB0618 BOLT-FLANGED-SMALL,6X18BOLT-FLANGED-SMALL,6X18
-
1105411054-1905 BRACKET,MIREAROR & METER STAYBRACKET,MIREAROR & METER STAY
-
1105511055-1026 BRACKETBRACKET
-
11055A11055-1027 BRACKETBRACKET
-
1409114091-0878-839 COVER,METER,S.BLACKCOVER,METER,S.BLACK
-
3915439154-0030 WINDSHIELDWINDSHIELD
-
5502855028-0228-11J COWLING,UPP,CNT,F.S.BLACK (FOR 17K)COWLING,UPP,CNT,F.S.BLACK (FOR 17K)
-
55028A55028-0228-17K COWLING,UPP,CNT,M.D,BLACK (FOR 17H;723;777)COWLING,UPP,CNT,M.D,BLACK (FOR 17H;723;777)
-
55028C55028-0264-839 COWLING, FRONT,S.BLACKCOWLING, FRONT,S.BLACK
-
5600156001-0102 MIREAROR-ASSY, LEFT HANDMIREAROR-ASSY, LEFT HAND
-
56001A56001-0103 MIREAROR-ASSY, RIGHT HANDMIREAROR-ASSY, RIGHT HAND
-
9201592015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
9203992039-0068 RIVETRIVET
-
92039A92039-1234 RIVETRIVET
-
9215392153-1244 BOLT,SOCKET,5X16BOLT,SOCKET,5X16
-
9215492154-0026 BOLT,SOCKET,5X16BOLT,SOCKET,5X16
-
9217292172-0175 SCREW,TAPPING,5X16SCREW,TAPPING,5X16
-
9220092200-0006 WASHER,NYLONE,5.3X11.5X0.5WASHER,NYLONE,5.3X11.5X0.5
-
9221092210-0003 NUT,CAP,6MMNUT,CAP,6MM
-
92210A92210-0130 NUTNUT
