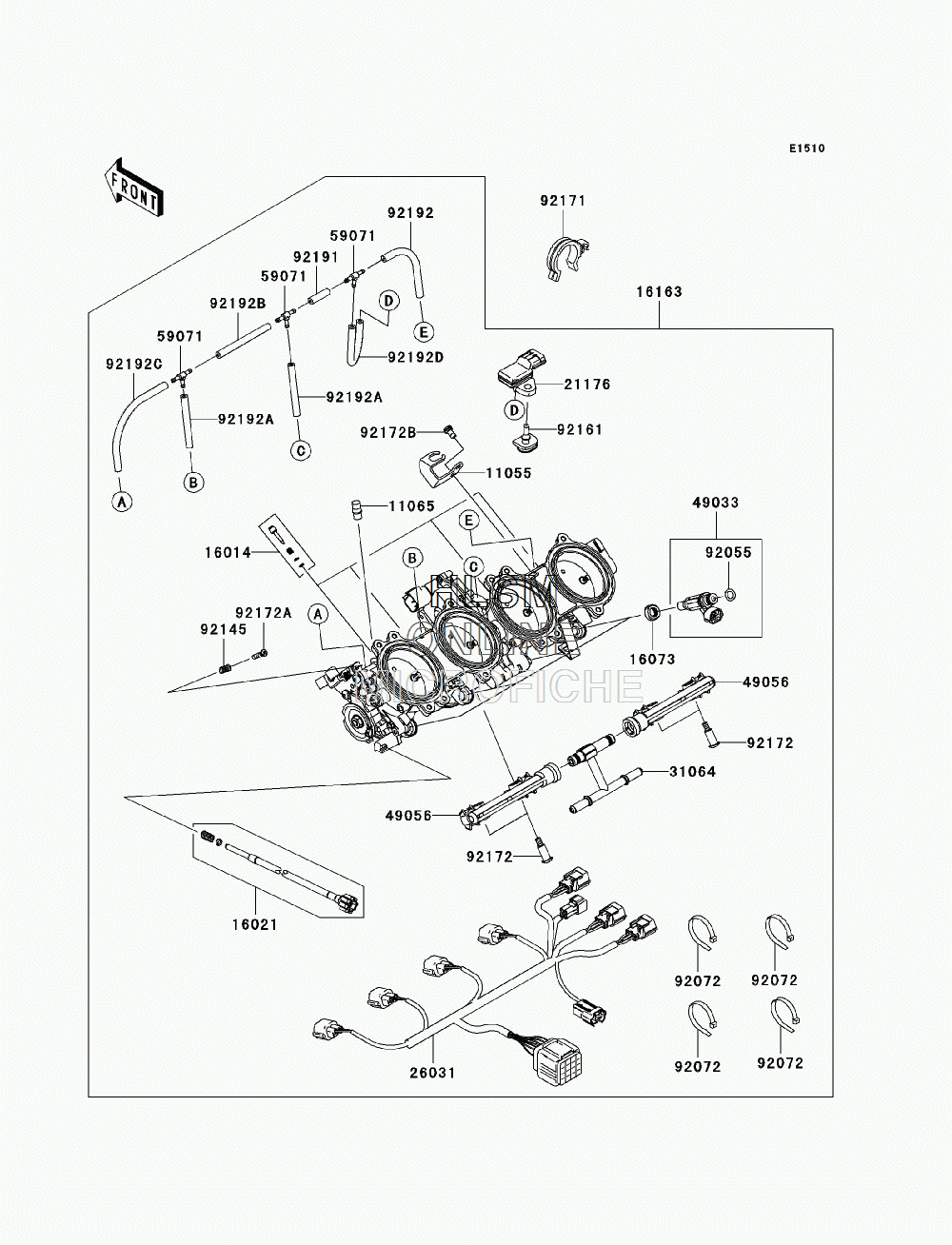

THROTTLE для Kawasaki NINJA ZX-10R (ZX1000E8F) - 2008 года выпуска
-
№АртикулНазвание
-
1105511055-1257 BRACKETBRACKET
-
1106511065-0282 CAPCAP
-
1601416014-0002 SCREW-PILOT AIRSCREW-PILOT AIR
-
1602116021-0020 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0115 THROTTLE-ASSY,TTK43THROTTLE-ASSY,TTK43
-
2117621176-0058 SENSOR,PRESSURESENSOR,PRESSURE
-
2603126031-0580 HARNESS,THROTTLE SUBHARNESS,THROTTLE SUB
-
3106431064-0023 PIPE-COMP,FUELPIPE-COMP,FUEL
-
4903349033-0011 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0024 PIPE-INJECTIONPIPE-INJECTION
-
5907159071-3752 JOINT,3WAY,TJOINT,3WAY,T
-
9205592055-1622 RING-O,INJECTION NOZZLERING-O,INJECTION NOZZLE
-
9207292072-0012 BAND,SUB-HARNESSBAND,SUB-HARNESS
-
9214592145-0055 SPRING,THROTTLE SYNCROSPRING,THROTTLE SYNCRO
-
9216192161-0041 DAMPERDAMPER
-
9217192171-0359 CLAMPCLAMP
-
9217292172-0064 SCREW,PIPE INJECTIONSCREW,PIPE INJECTION
-
92172A92172-0065 SCREW,THROTTLE SYNCROSCREW,THROTTLE SYNCRO
-
92172B92172-0393 SCREWSCREW
-
9219192191-0020 TUBE,3X7X25TUBE,3X7X25
-
9219292192-0018 TUBE,3X7X95TUBE,3X7X95
-
92192A92192-0106 TUBETUBE
-
92192B92192-0739 TUBETUBE
-
92192C92192-0740 TUBETUBE
-
92192D92192-0741 TUBETUBE
