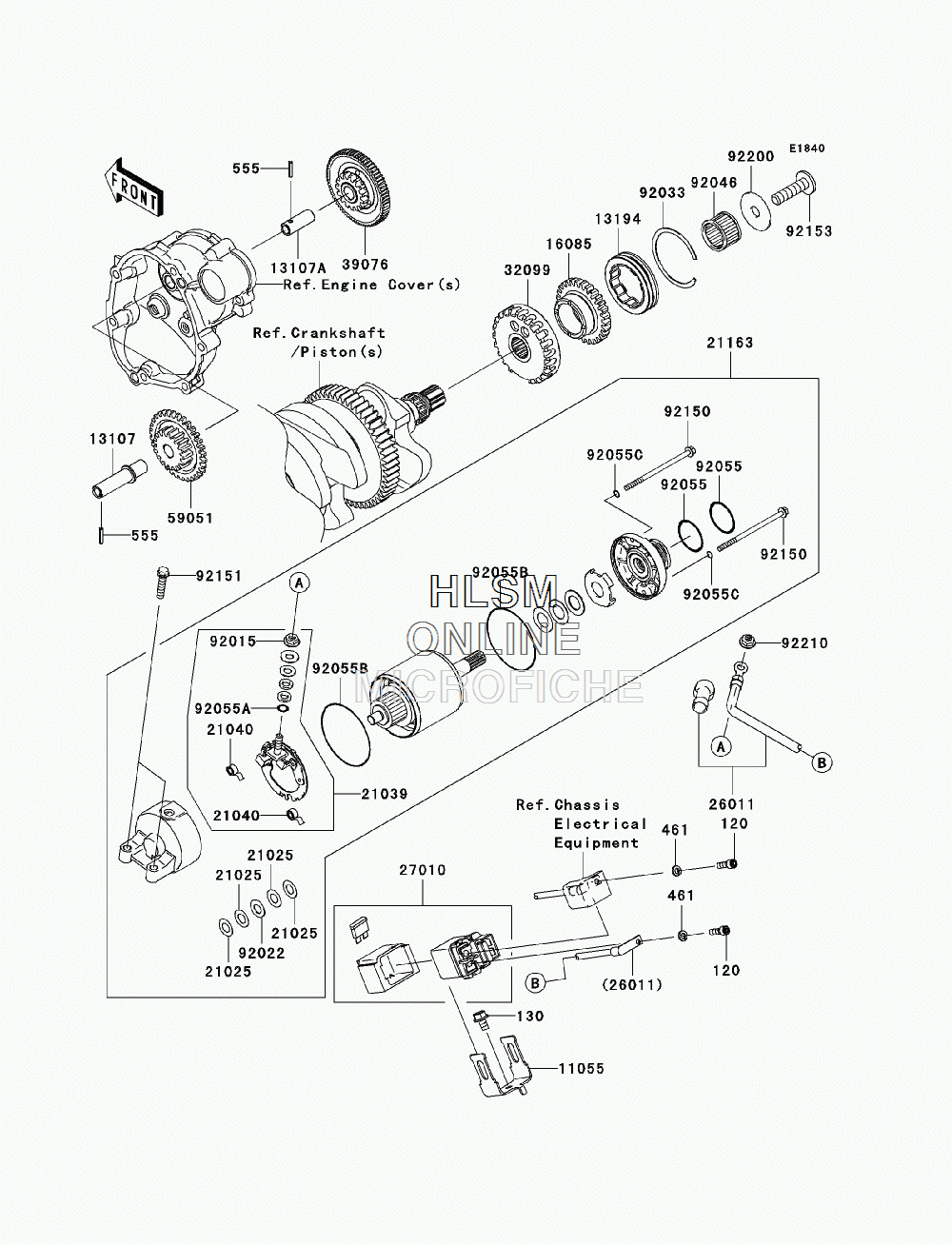

STARTER MOTOR для Kawasaki NINJA ZX-10R (ZX1000E8F) - 2008 года выпуска
-
№АртикулНазвание
-
120120CB0510 BOLT-SOCKET,5X10BOLT-SOCKET,5X10
-
130130BA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
461461DB0500 WASHER-SPRING,5MM,BLACKWASHER-SPRING,5MM,BLACK
-
555555A0316 PIN-SPRING,3X16PIN-SPRING,3X16
-
1105511055-0756 BRACKETBRACKET
-
1310713107-0192 SHAFT,ONEWAY CLUTCHSHAFT,ONEWAY CLUTCH
-
13107A13107-0193 SHAFT,STARTER SIDESHAFT,STARTER SIDE
-
1319413194-3704 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1608516085-0102 GEAR,29TGEAR,29T
-
2102521025-011 WASHER,9.1X18X0.2WASHER,9.1X18X0.2
-
2103921039-1066 BRUSHBRUSH
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0028 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-0203 WIRE-LEADWIRE-LEAD
-
2701027010-1450 SWITCHSWITCH
-
3209932099-0019 CASE,STARTER CLUTCHCASE,STARTER CLUTCH
-
3907639076-0014 LIMITERLIMITER
-
5905159051-0088 GEAR-SPUR,ONEWAY CLUTCH SIDEGEAR-SPUR,ONEWAY CLUTCH SIDE
-
9201592015-1476 NUT,STARTER MOTORNUT,STARTER MOTOR
-
9202292022-1132 WASHER,9.1X18X0.8WASHER,9.1X18X0.8
-
9203392033-3731 RING-SNAPRING-SNAP
-
9204692046-0004 BEARING-NEEDLE,RS263020BEARING-NEEDLE,RS263020
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O,4.5X2.0RING-O,4.5X2.0
-
92055B92055-1550 RING-ORING-O
-
92055C92055-1551 RING-ORING-O
-
9215092150-1969 BOLT,FLANGED,4X80BOLT,FLANGED,4X80
-
9215192151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9215392153-1521 BOLT,TORX,10X38BOLT,TORX,10X38
-
9220092200-0238 WASHER,10.5X37X1.6WASHER,10.5X37X1.6
-
9221092210-0188 NUT,6MMNUT,6MM
