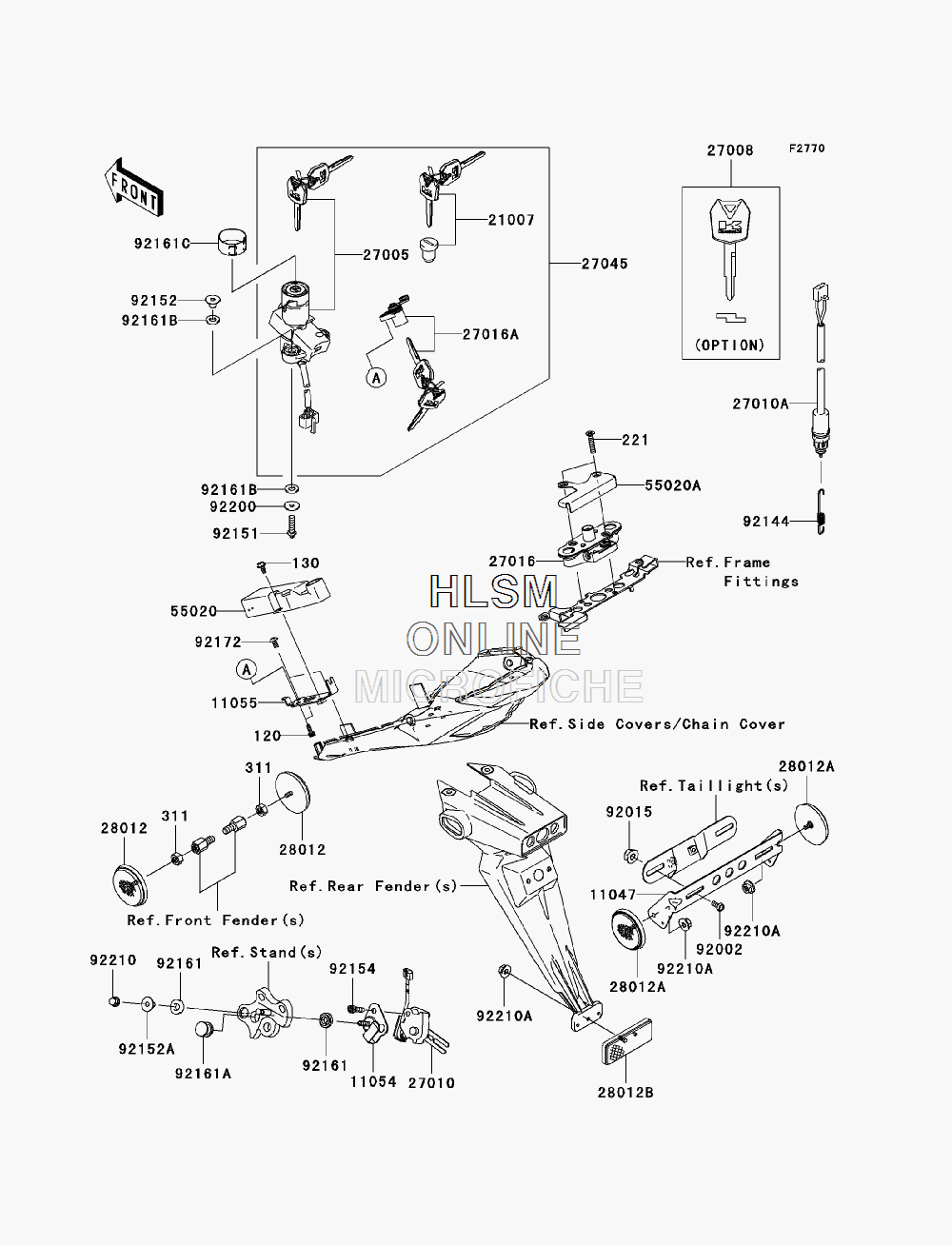

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-10R (ZX1000E8F) - 2008 года выпуска
-
№АртикулНазвание
-
120120CB0512 BOLT-SOCKET,5X12BOLT-SOCKET,5X12
-
130130AA0510 BOLT-FLANGED,5X10BOLT-FLANGED,5X10
-
221221AB0635 SCREW-CSK-CROSS,6X35SCREW-CSK-CROSS,6X35
-
311311AB0500 NUT-HEXNUT-HEX
-
1104711047-1470 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1105411054-1904 BRACKET,SIDE STAND SWITCHBRACKET,SIDE STAND SWITCH
-
1105511055-0316 BRACKET,SEAT LOCKBRACKET,SEAT LOCK
-
2100721007-5057 ROTOR,LOCK,TANK CAPROTOR,LOCK,TANK CAP
-
2700527005-5137 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0030 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0064 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
27010A27010-1486 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-0003 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5309 LOCK-ASSY,SEATLOCK-ASSY,SEAT
-
2704527045-5336 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT,SIDEREFLECTOR-REFLEX, FRONT,SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
5502055020-0411 GUARD,SEAT LOCKGUARD,SEAT LOCK
-
55020A55020-0447 GUARD,SEAT STRIKERGUARD,SEAT STRIKER
-
9200292002-1132 BOLT,6X12BOLT,6X12
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9214492144-1139 SPRING,BRAKE LAMP SWITCHSPRING,BRAKE LAMP SWITCH
-
9215192151-1946 BOLT,TORX,6X22BOLT,TORX,6X22
-
9215292152-0352 COLLARCOLLAR
-
92152A92152-1074 COLLARCOLLAR
-
9215492154-0031 BOLT,SOCKET,6X22BOLT,SOCKET,6X22
-
9216192161-0117 DAMPERDAMPER
-
92161A92161-0118 DAMPERDAMPER
-
92161B92161-0240 DAMPER,IGNITION SWITCHDAMPER,IGNITION SWITCH
-
92161C92161-0257 DAMPER,IGNITION SWITCHDAMPER,IGNITION SWITCH
-
9217292172-1061 SCREW,TAPPING,5X10SCREW,TAPPING,5X10
-
9220092200-0212 WASHER,6X20X1.6WASHER,6X20X1.6
-
9221092210-0003 NUT,CAP,6MMNUT,CAP,6MM
-
92210A92210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
