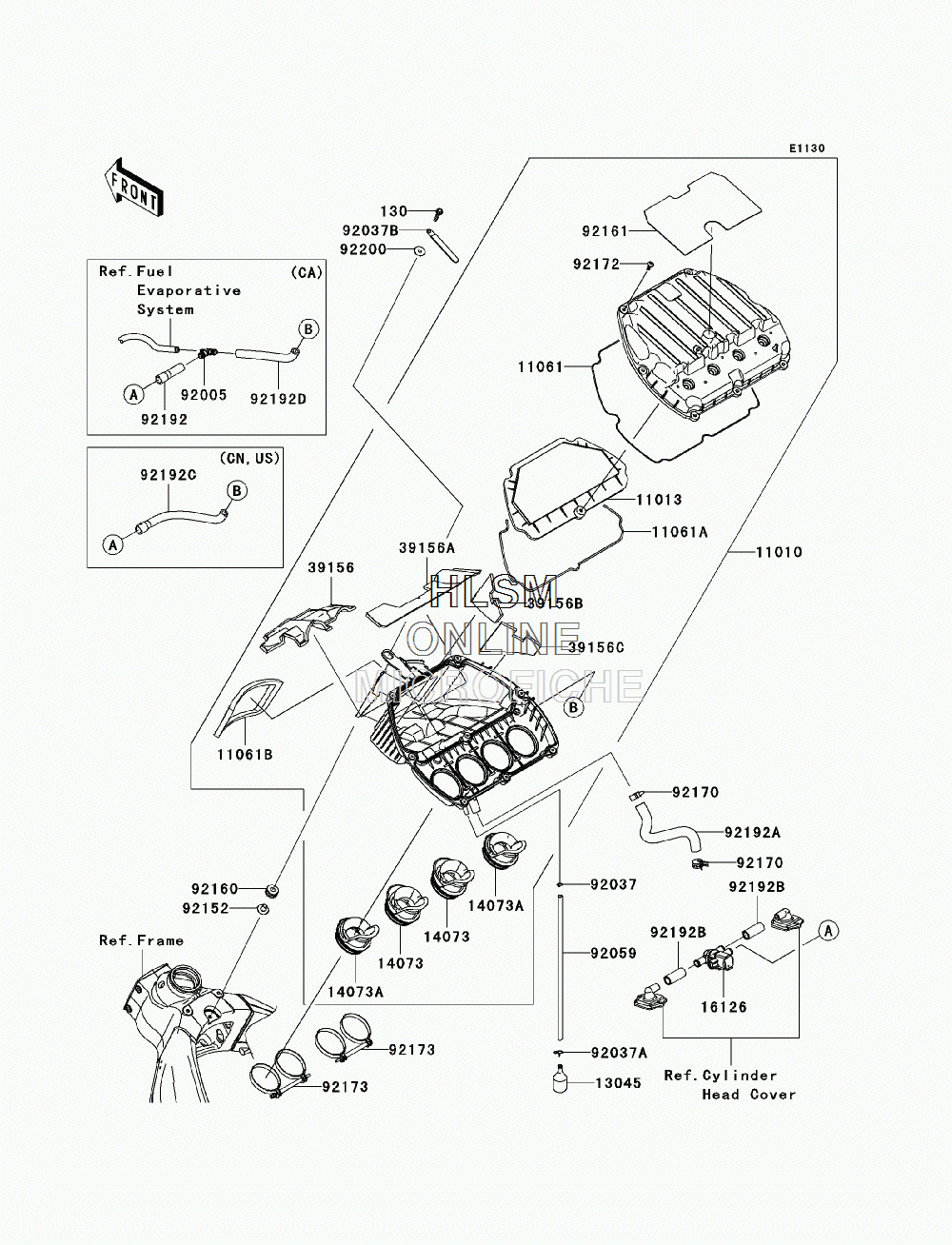

AIR CLEANER для Kawasaki NINJA ZX-6R (ZX600RCF) - 2012 года выпуска
-
№АртикулНазвание
-
130130BB0630 BOLT-FLANGED,6X30BOLT-FLANGED,6X30
-
1101011010-0198 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-0036 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106111061-0379 GASKET,UPP CASEGASKET,UPP CASE
-
11061A11061-0380 GASKET,LWR CASEGASKET,LWR CASE
-
11061B11061-0381 GASKET, FRAME-A/CGASKET, FRAME-A/C
-
1304513045-1057 RECEIVER-OILRECEIVER-OIL
-
1407314073-0262 DUCT,#2,#3DUCT,#2,#3
-
14073A14073-0263 DUCT,#1,#4DUCT,#1,#4
-
1612616126-0038 VALVE,AIR SWITCHINGVALVE,AIR SWITCHING
-
3915639156-0513 PAD, FRONTPAD, FRONT
-
39156A39156-0514 PAD, REARPAD, REAR
-
39156B39156-0515 PAD, LEFT HANDPAD, LEFT HAND
-
39156C39156-0516 PAD, RIGHT HANDPAD, RIGHT HAND
-
9200592005-1402 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-010 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1712 CLAMPCLAMP
-
92037B92037-1993 CLAMPCLAMP
-
9205992059-103 TUBE,6X9X360TUBE,6X9X360
-
9215292152-0547 COLLAR,6.5X10.5X13.1COLLAR,6.5X10.5X13.1
-
9216092160-1162 DAMPERDAMPER
-
9216192161-0696 DAMPERDAMPER
-
9217092170-1060 CLAMPCLAMP
-
9217292172-1072 SCREWSCREW
-
9217392173-0115 CLAMPCLAMP
-
9219292192-0367 TUBE,ASV-FITTING (CALIF. ONLY)TUBE,ASV-FITTING (CALIF. ONLY)
-
92192A92192-0429 TUBE,BLOWBYTUBE,BLOWBY
-
92192B92192-0851 TUBE,12X17.6X44TUBE,12X17.6X44
-
92192C92192-0879 TUBE,ASV-A/C (EXCEPT CALIF.)TUBE,ASV-A/C (EXCEPT CALIF.)
-
92192D92192-0880 TUBE,A/C-FITTING (CALIF. ONLY)TUBE,A/C-FITTING (CALIF. ONLY)
-
9220092200-1087 WASHER,6.5X22X1.6WASHER,6.5X22X1.6
