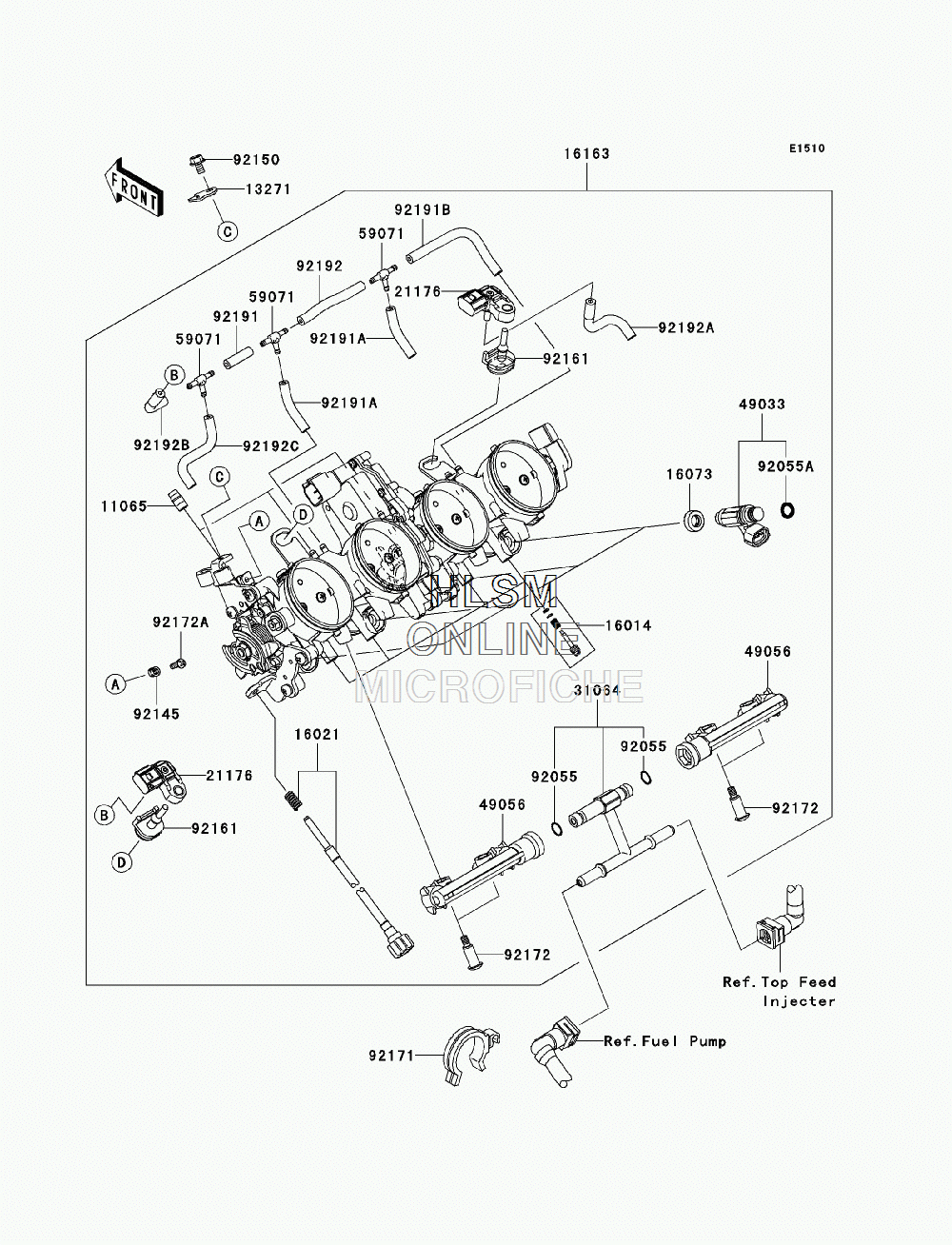

THROTTLE для Kawasaki NINJA ZX-6R (ZX600RCF) - 2012 года выпуска
-
№АртикулНазвание
-
1106511065-0018 CAPCAP
-
1327113271-0559 PLATEPLATE
-
1601416014-0002 SCREW-PILOT AIRSCREW-PILOT AIR
-
1602116021-0014 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0128 THROTTLE-ASSY,TTK38THROTTLE-ASSY,TTK38
-
2117621176-0111 SENSOR,PRESSURESENSOR,PRESSURE
-
3106431064-0023 PIPE-COMP,FUELPIPE-COMP,FUEL
-
4903349033-0013 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0014 PIPE-INJECTIONPIPE-INJECTION
-
5907159071-3752 JOINT,3WAY,TJOINT,3WAY,T
-
9205592055-0064 RING-ORING-O
-
92055A92055-1622 RING-O,INJECTION NOZZLERING-O,INJECTION NOZZLE
-
9214592145-0294 SPRINGSPRING
-
9215092150-1406 BOLT,5X8BOLT,5X8
-
9216192161-0673 DAMPERDAMPER
-
9217192171-0359 CLAMPCLAMP
-
9217292172-0064 SCREW,PIPE INJECTIONSCREW,PIPE INJECTION
-
92172A92172-0129 SCREWSCREW
-
9219192191-0020 TUBE,3X7X25TUBE,3X7X25
-
92191A92191-0022 TUBE,3X7X40TUBE,3X7X40
-
92191B92191-0023 TUBE,3X7X100TUBE,3X7X100
-
9219292192-0739 TUBETUBE
-
92192A92192-0840 TUBE,THROBO RIGHT HAND-SENSORTUBE,THROBO RIGHT HAND-SENSOR
-
92192B92192-0841 TUBE,THROBO LEFT HAND-JOINTTUBE,THROBO LEFT HAND-JOINT
-
92192C92192-0842 TUBE,THROBO LEFT HAND-SENSORTUBE,THROBO LEFT HAND-SENSOR
