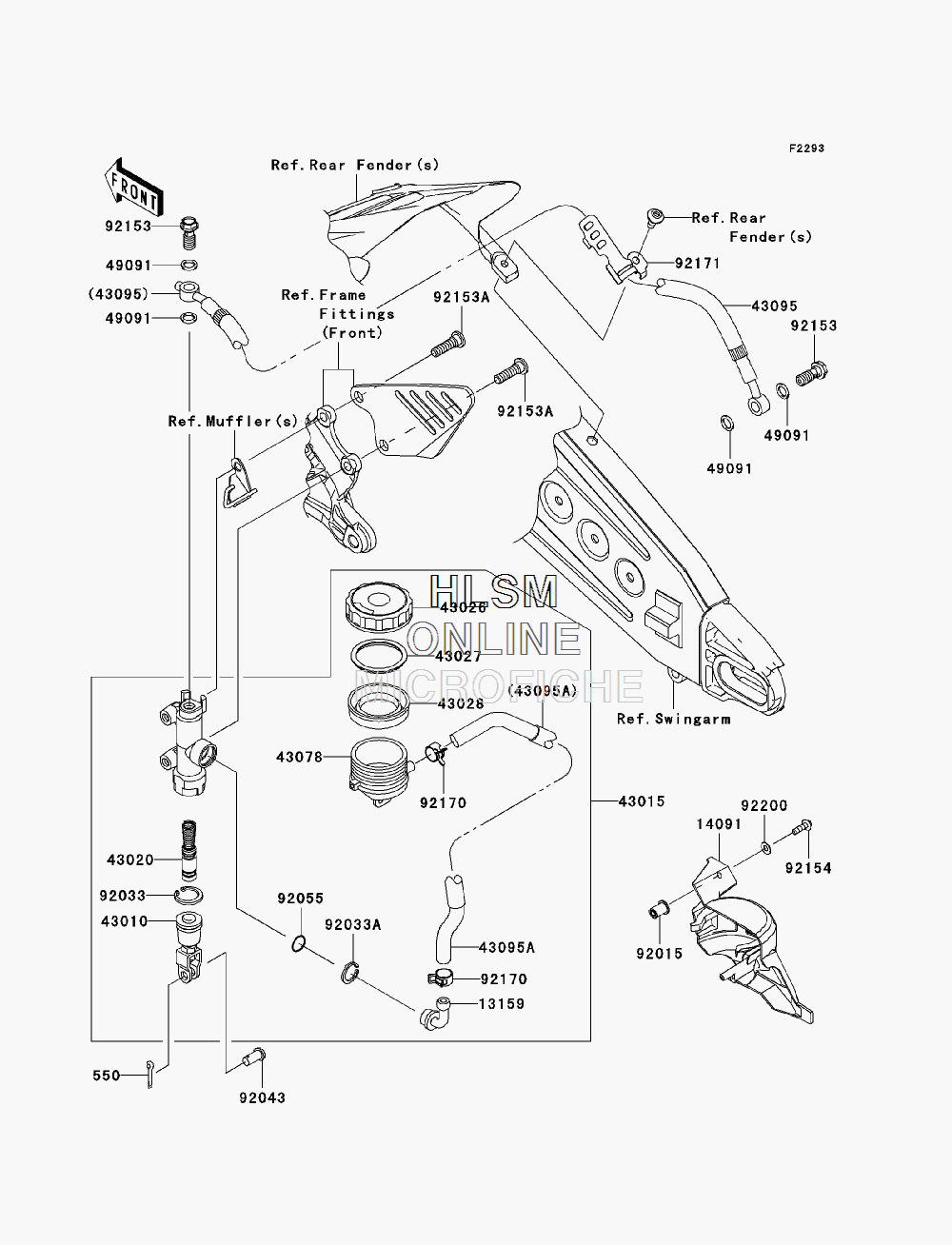

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-6R (ZX600RCF) - 2012 года выпуска
-
№АртикулНазвание
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1315913159-1056 CONNECTORCONNECTOR
-
1409114091-1698 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0126 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
4307843078-1101 RESERVOIRRESERVOIR
-
4309543095-0447 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
43095A43095-0467 HOSE-BRAKE, REAR M/CYLINDERHOSE-BRAKE, REAR M/CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9201592015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
9203392033-0079 RING-SNAP,20.9X24.6X1.2RING-SNAP,20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9204392043-0104 PIN,8X17PIN,8X17
-
9205592055-1251 RING-O,MASTER CYLINDERRING-O,MASTER CYLINDER
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
92153A92153-1624 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
9215492154-0209 BOLT,SOCKET,5X16BOLT,SOCKET,5X16
-
9217092170-1091 CLAMP,HOSECLAMP,HOSE
-
9217192171-1896 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9220092200-0006 WASHER,NYLONE,5.3X11.5X0.5WASHER,NYLONE,5.3X11.5X0.5
